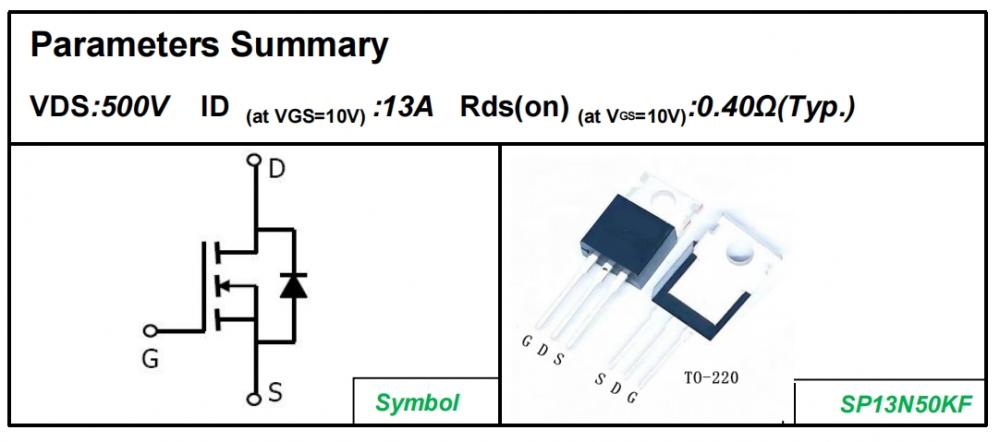

MOSFET N-CHANNEL SP13N50K TO220
2 year ago
Power Factor Correction (PFC)
Device Ordering Marking Packing Information
Ordering Number
Package
Marking
Packing
SP13N50KF
TO-220
SP13N50KF
Tube
Absolute Maximum Ratings TC = 25ºC, unless otherwise noted
Value
Parameter
Symbol
TO-220
Unit
Drain-Source Voltage (VGS = 0V)
VDSS
500
V
Continuous Drain Current
ID
13
A
Pulsed Drain Current (note1)
IDM
52
A
Gate-Source Voltage
VGSS
±30
V
Single Pulse Avalanche Energy (note2)
EAS
550
mJ
Repetitive Avalanche Energy (note1)
EAR
65
mJ
Power Dissipation (TC = 25ºC)
PD
60
W
Operating Junction and Storage Temperature Range
TJ, Tstg
-55~+150
ºC
Caution: Stresses greater than those listed in the “Absolute Maximum Ratings” may cause permanent damage to the device.
Thermal Resistance
Value
Parameter
Symbol
TO-220
Unit
Thermal Resistance, Junction-to-Case
RthJC
2.1
ºC/W
Thermal Resistance, Junction-to-Ambient
RthJA
100
