75-225 PE pipe winding machine with motor

10 month ago

8 0 

2 year

Product details

Description:

1. A PE plastic pipe reel is a machine that coils or reels plastic pipe onto a reel. It helps to neatly organize and store plastic pipes, making them easier to transport and handle. The coiling process also helps prevent tangling and damage to the pipe.

2. A PE plastic pipe uncoiler is used to unwind or unwind a plastic pipe from a reel. It provides support and tension to the pipe string as it unwinds, allowing for smooth and controlled feeding of the pipe string in a variety of applications.

3. Both reels and uncoilers play an important role in the handling and processing of plastic pipes, helping to improve efficiency and convenience in a variety of industrial and manufacturing environments.

Technical Parameter:

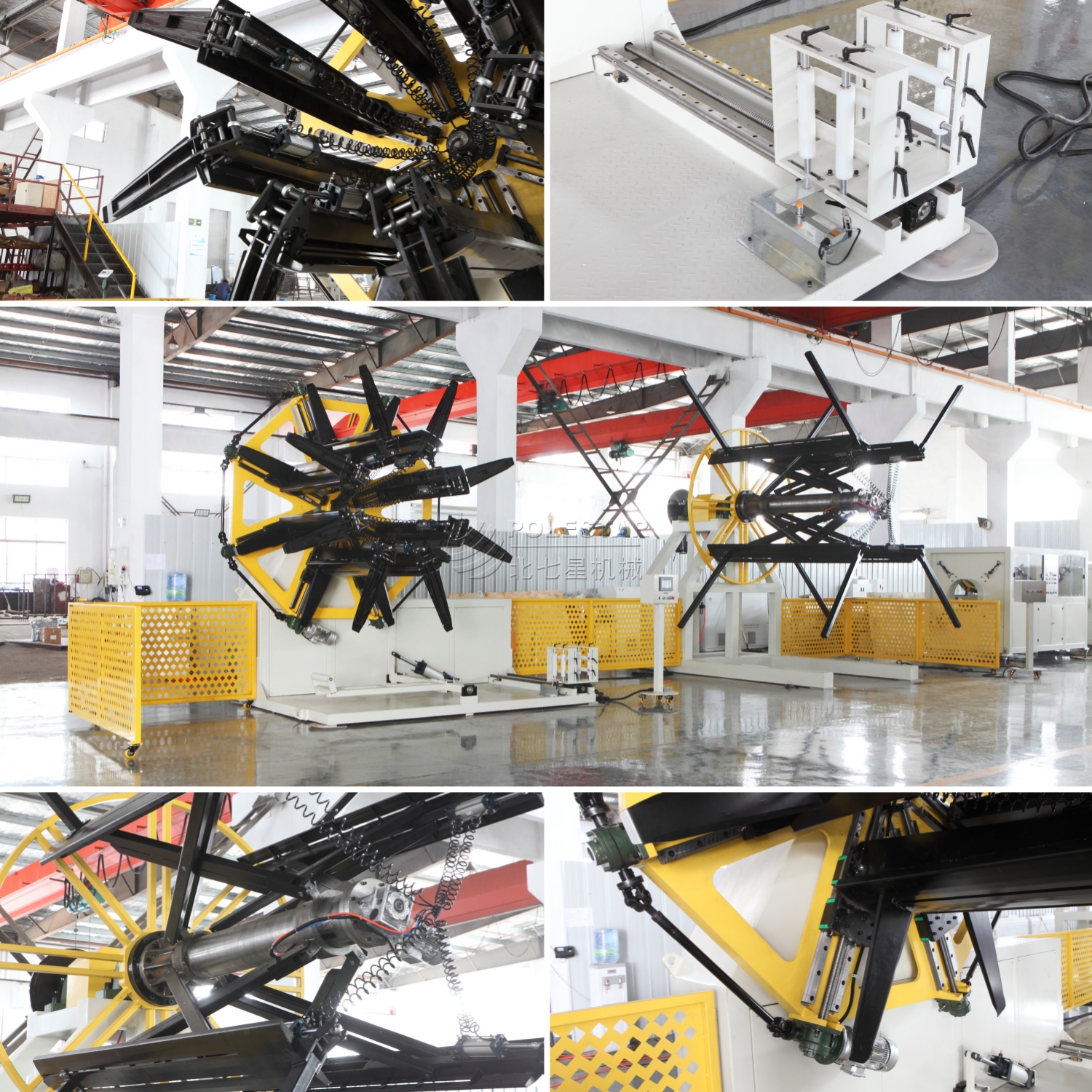

JQ76-225 Single Station PE Pipe Coiler

Pipe range: Φ76~225MM

Inner diameter: 1600-2000 MM (adjusted by servo motor)

Inner diameter adjust motor: 1.5 KW

Outer diameter: 3200 MM

Roll up width: 400~1200 MM

Roll up thickness: 600 MM

Pipe winding speed: 1~10 M/Min.

Main motor power: 3 KW

Wire wind motor power: 1 KW

Air pressure: 3-0.6Mpa

Quantity of air cylinder: 8 pcs

BP76-225 Single Station PE Pipe Uncoiler

Pipe range: Φ76~225MM

Inner diameter: 1000~2100 MM (adjusted by manual)

Outer diameter: 3800 MM

Roll up width: 400~2400 MM

Roll up thickness: 1400 MM

Pipe winding speed: 1~10 M/Min.
