Product details

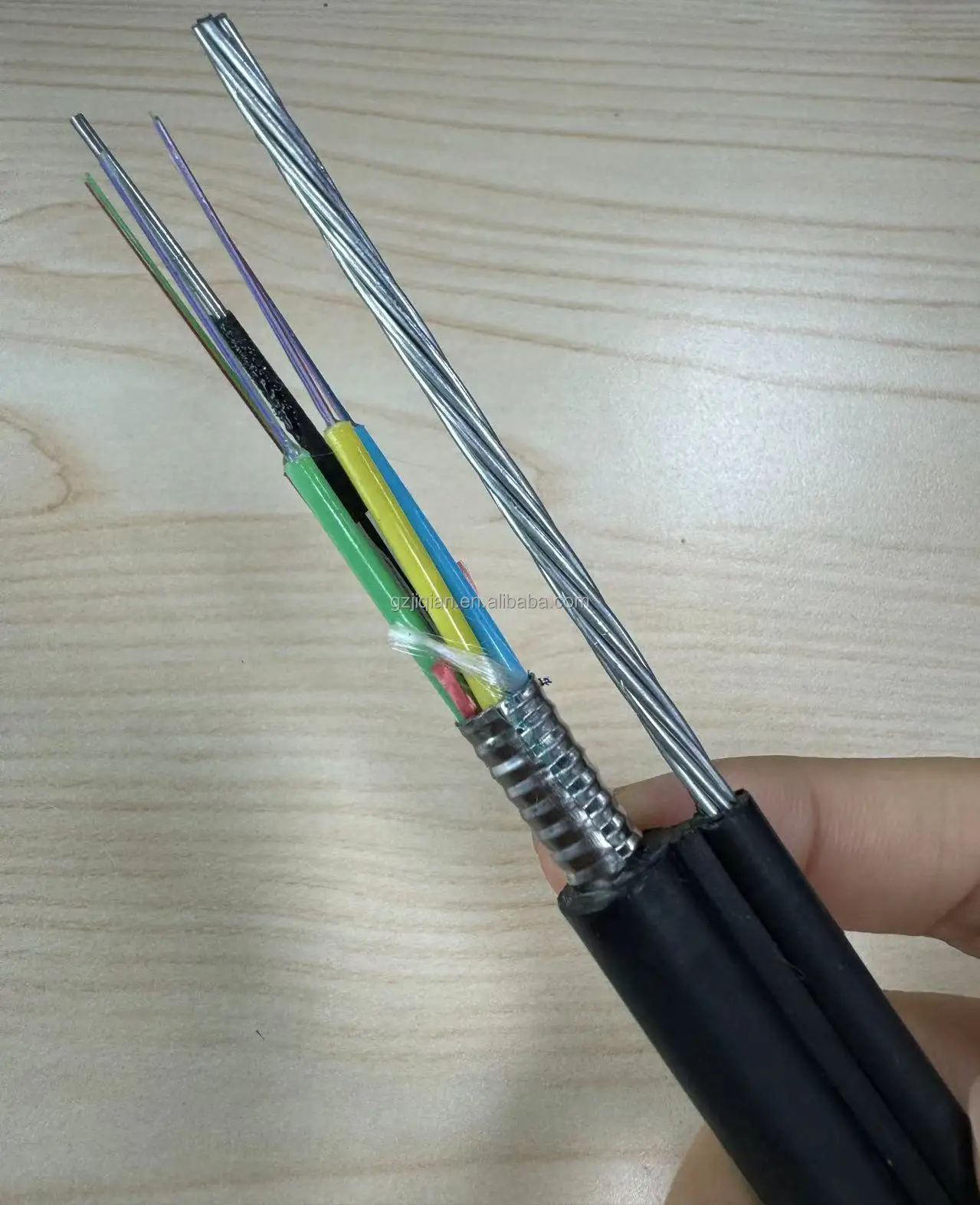

Figure 8 Fiber Optic Cable GYTC8S

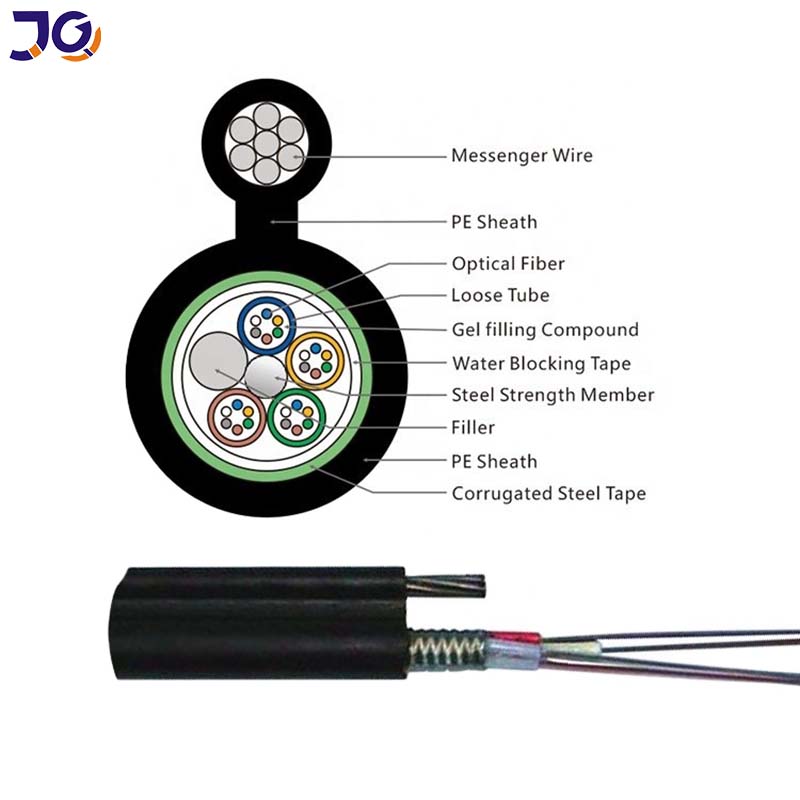

The GYTC8S Figure 8 Fiber Optic Cable highlights an interesting plan. 250µm strands are situated in free tubes made of PBT, Outdoor Optical Cable filled with a water-resistant compound. Figure 8 Fiber Optic Cable A steel wire's central quality part is encompassed by tubes and filler fabric, shaping a compact and circular center. The Steel tape dampness obstruction is connected, taken after by a polyethylene (PE) sheath, completing the Figure 8 structure. This plan gives uncommon solidness and unwavering quality for your optical fiber needs.

Number of fiber	48 cores
Attenuation Coefficient 1310nm dB/km	≤0.35
Attenuation Coefficient 1550nm dB/km	≤0.22
Self-supporting type	Yes,with starnded steel wire 3.0mm(7*1.0mm)
Number of Loose tube	4 tubes,each tube contains 12 cores
Tension（Long Term）	2500
Tension（Short Term）	5000
Crush（Long Term）	300
Crush（Short Term）	1000
Operating Temperature	-40～+70
Cable diameter	9.0*14.8

Our optical cables brag an amazing set of focal points. Firstly, we utilize high-quality optical strands to ensure great transmission execution. Furthermore, our full-section water-blocking structure guarantees great water-blocking and moisture-proof execution.

Thirdly, we precisely control the overabundance length of our open-air fiber optic cables to guarantee remarkable mechanical and high/low-temperature characteristics. Furthermore, our free tubes are filled with extraordinary oil to give basic assurance to the optical fiber. In conclusion, our longitudinally clad steel tape upgrades the resistance to horizontal weight, conveying dependable and tough execution.
