frame retardant MGXTSV mine fiber optic cab

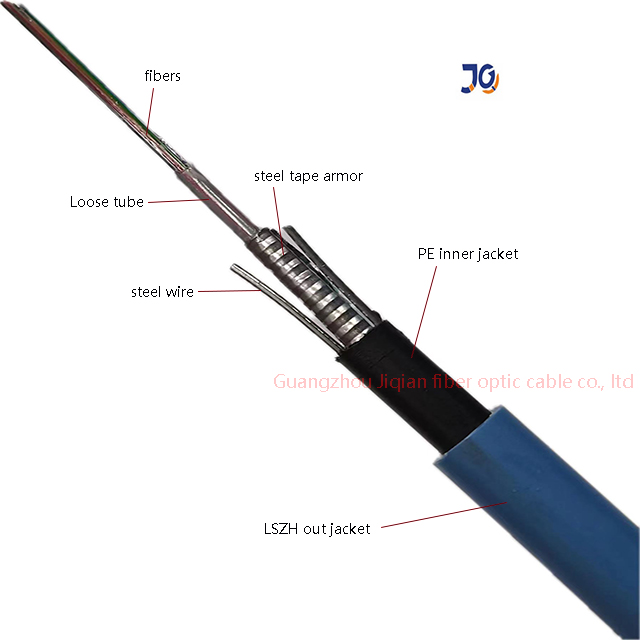

MGXTSV fiber optic cable, the fibers, 200μm or 250μm, are positioned in a loose tube made of a high modulus plastic. The unit-tube,  filled with a water-resistant filling compound are laied in the central of the cable.  Two  parallel steel wires locates as a metallic strength member. The cable core is filled with the filling compound to protect it from water ingress. The PSP is longitudinally applied over the cable core, a thin PE inner sheath is applied, then the cable is completed with a PVC or frame retardant outer sheath.

Cable features

·Good mechanical and temperature performance
·High strength loose tube has good performance of water proof and high strength
·Special tube filling compound ensure a critical protection of fiber
·Good crush resistance and flexibility
·The following measures are taken to ensure the cable watertight:
·Steel wire used as the central strength member
·Loose tube filling compound
·100% cable core filling
·PSP enhancing moisture-proof and anti-rodent
·Good water resistance material prevent longitudinal seepage
·Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance.

Application

MGXTSV cable complies with Standard MT386-1995 test method and decision rule of the flame retardant of the cable used in coal mine.

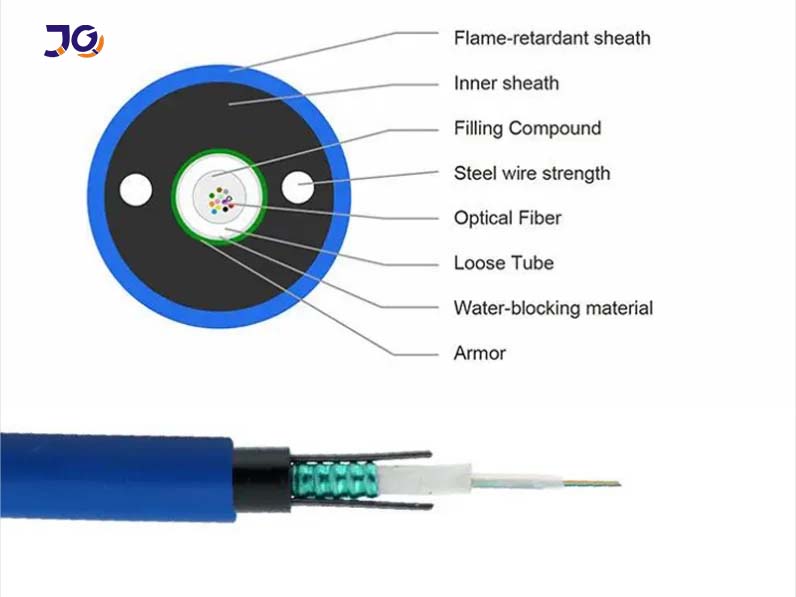

Cable structures

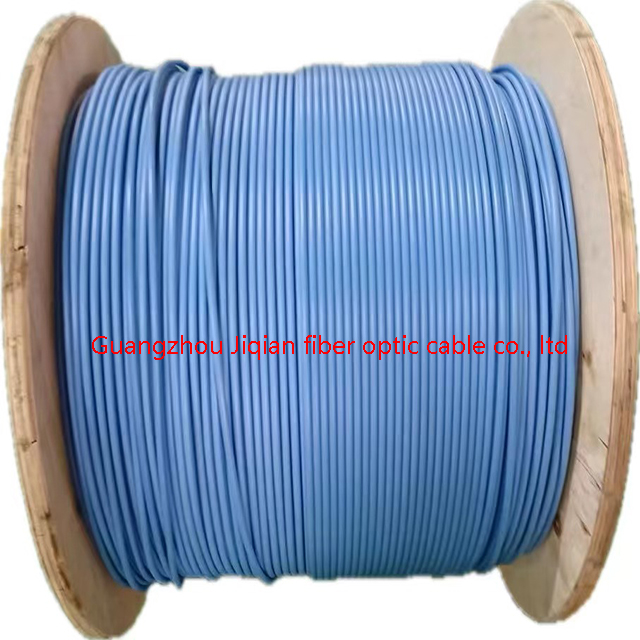

cable  package and delivery
