Product details

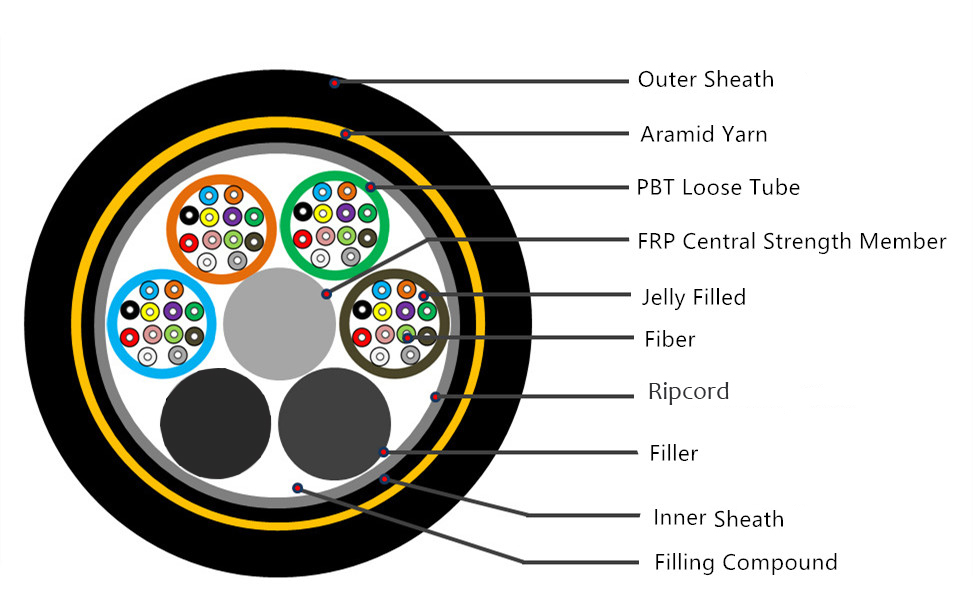

ADSS Fiber Optic Cable All-dielectric Self-supporting Arial Fiber Optic Cable 24 48 96 Core Span 100m

Feature:

1.Gel-filled tubes are reverse-oscillated to allow slack for mid-span access

2.Pole-to-pole span lengths 100m

3.Single sheath design decreases the diameter and weight when compared to double jacket ADSS cable; thus reducing pole loading

Application:

1.Enterprise OSP networks

2.Fiber-to-the-X networks

3.Overhead

Fiber optic G652D Parameter:

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		mm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.35
Attenuation Coefficient	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100

Cable Length:2/3/4/5 km per reel or as per your request

Lead time: 5-7 days,it depens on order quantity

Packing:plywood drum
