Product details

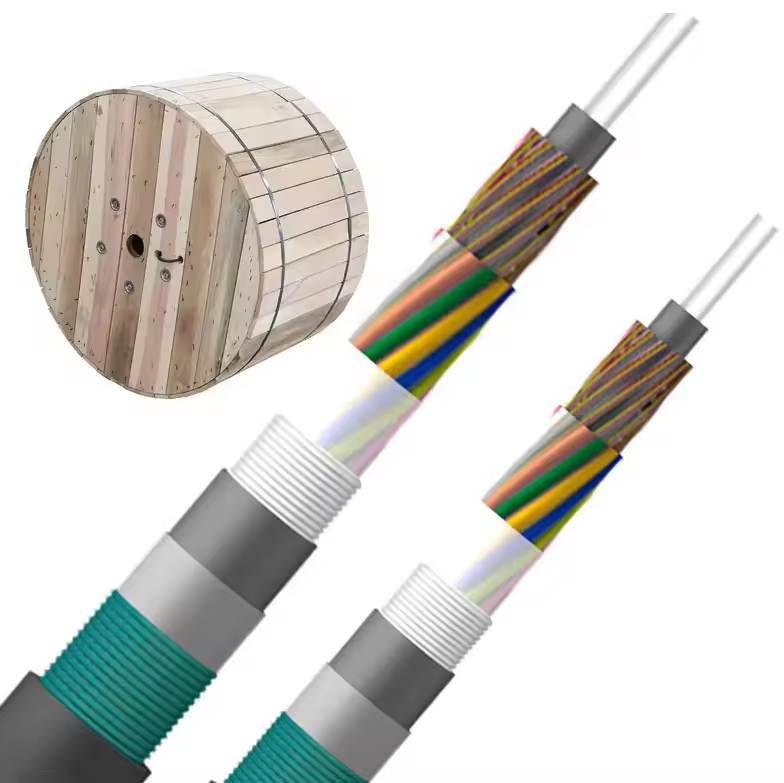

ARSS anti rodent outdoor fiber optic cable

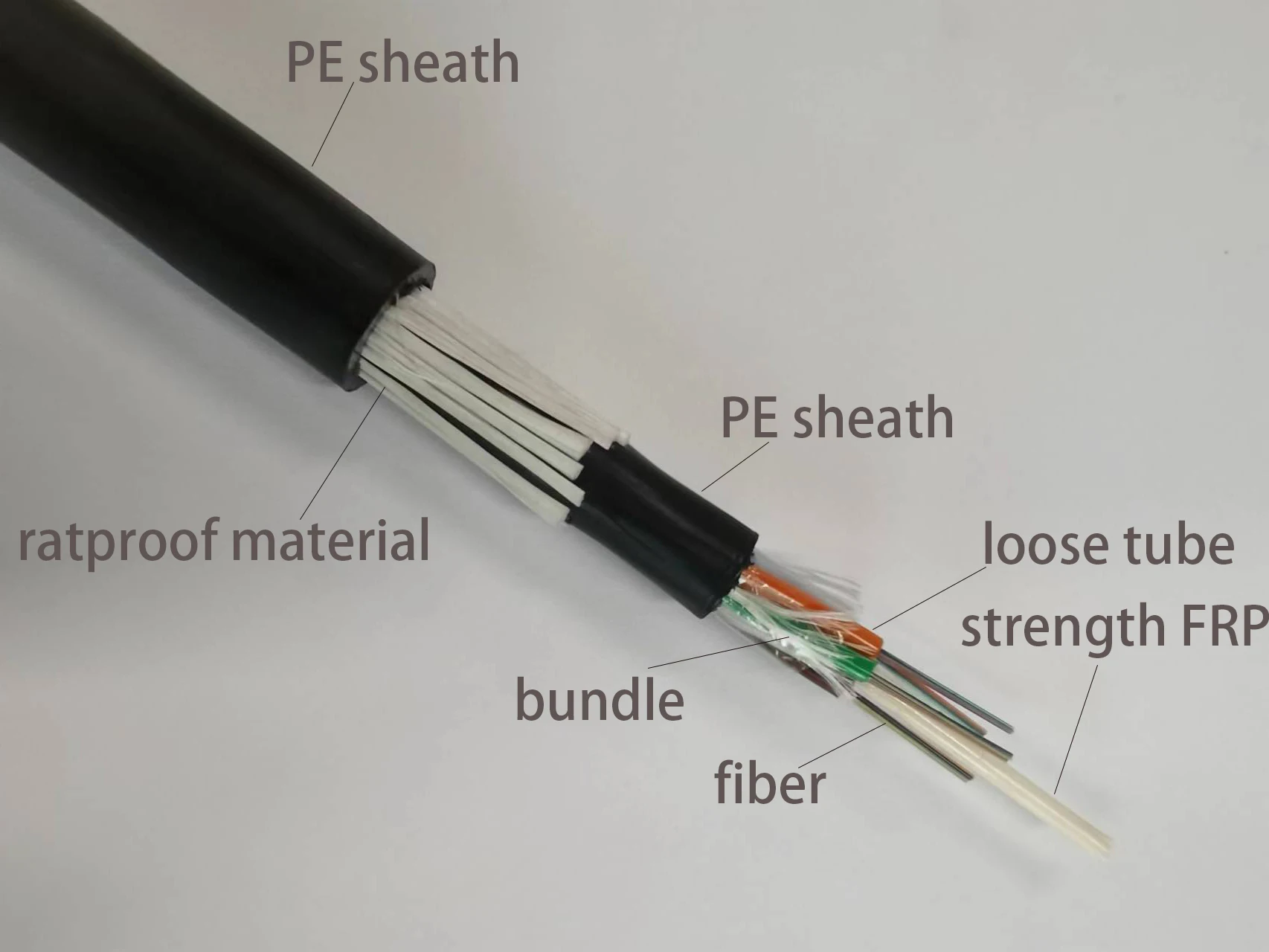

1. ARSS cable is loose tube stranded structure. Fibers are positioned into loose tube made of high modulus plastics.

2. All loose tubes are filled with a water-resistant filling compound.

3. These tubes ( fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non metallic central strength member into a compact and circular cable core.

4. a water blocking tape cover all the loose tubes /fillers and FRP, it can protect the cable from water coming inside .

5. After the water blocking tape, there are aramid yarn +corrugated steel tape as strength member, and then the cable is completed with PE or HDPE outer sheath.

6. ARSS cable can be single jacket and double jackets.

Cable features

1. light weight and strong tensile makes it very suitable for overhead installation.

2. steel tape + aramid yarn provide the cable with a good performance on anti-rodent requirements

Application

1. Suitable for long distance and a large capacity data transmission.

2. Suitable for the areas where is required to be anti rodent.

More details about the ARSS fibre optic cable

Key data parameters for ARSS fiber optic cable

Item	24 cores Anti rodent ARSS (ADSS ) fibre optics cable
Attenuation Coefficient 1310nm dB/km	≤0.35
Attenuation Coefficient 1550nm dB/km	≤0.22
Number of loose tube ( PBT )	4 loose tubes , each tube contains 6 cores fibers
Central strength member	FRP ( no mental)
outer sheath material	PE
Tension (long term )	2500N
Tension (short term )	5000N
Crush (long term)	1000N
Crush (short term)	2000N
Cable outer diameter	10.MM

Package and delivery
