FL-5545TBA+SM-4525 With Conveyor
8 month ago

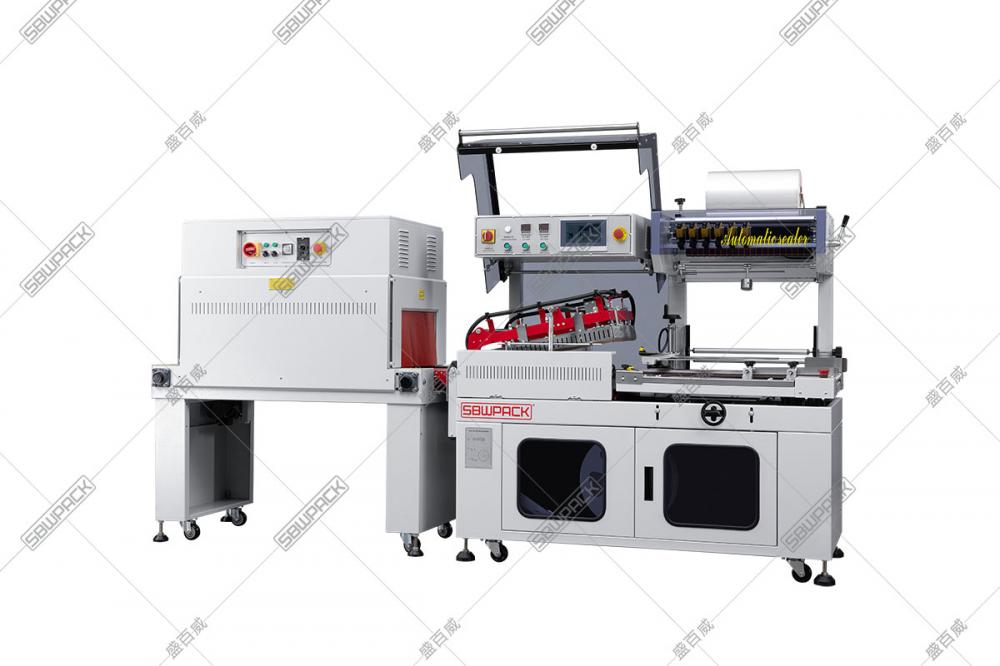

Auto L Bar Sealer And Shrink Tunnel System
Tunnel Technical Features
Stainless heating tubes and strong blowing motor ensure high heating efficiency,large air volume and uniform air circulation.
Solid metal rods wrapped by heat-resistance silicone tubes make the conveyor rollers strong and resilient.
Scope of Application
Suitable for the packing demands of the mass production in industries such like software, food,cosmetics,printing, pharmaceuticals and floors,ceramics, beverage, hardware and so on.
Automatic Sealing And Shrinking Series Optionals
Kissing Device HMI Safety Door Switch Transaprent Material Detection Easy-to-tear Mouth.
Printed Film Detection S/S Machine Frame /Customized Painting Specific Electric/Pneumatic Brands.
Automatic L Bar Sealer Technical Features
L-bar sealing blades driven by cylinder provide the film bag with strong seams with one strike.Suitable for single or combined packing of ordinary products.
One-piece heat-resistant alloy blades,Dupont Tefloncoated，anti-adhesive and easy to clean.
Packing size adjustable, no need to change module or bagging former.
|
Model |
FL-5545TBA/TBB |
SM-4525 |
|
Machine Dimensions (mm) |
1700 X 840 X 1525 |
1300 X 746 X 1465 |
|
Max Packing Size (mm) L+H(mm) H＜130 |
≤500 |
700 X 350 X 200 |
|
Max Packing Size (mm) W+H(mm) H＜130 |
≤430 |
/ |
|
Sealing Size LxW (mm) |
550 X 450 |
/ |
|
Capacity (pcs/m) |
15~25 |
0~15m/min |
|
N.W. (kg) |
225 |
260 |
|
Power (kw) |
2.2 |
9 |
|
Power Source |
1PH 220V 50/60Hz |
3PH 220V/380V 50/60Hz |
|
Air Source (kg/cm²) |
6~8 |
/ |
|
Applicable Film |
POF/PE |
POF |
