Curved customized smart glass
4 year ago
Product Description
About High Transparency Self Adhesive Film, PDLC Smart Glass
Self-Adhesive Switchable Smart Film is aSwitchable Film could stick to existing glass. The light transmission state of this kind of film can be adjusted by voltage, which is the big difference between the dimming film and other architectural films.
Switchable Self Adhesive Smart Glass Privacy Film can be directly attached to the glass surface without any glue, similar to the mobile phone film. The electrodes of the membrane are small and connected by thin wires, which are easy to hide. It can be said that as long as the glass surface is flat and smooth, Self Adheisve PDLC Film can be applied, which is especially suitable for office glass partition walls and doors and windows. With dimming function, there is no need to remove and replace the existing glass.
The science behind the magic

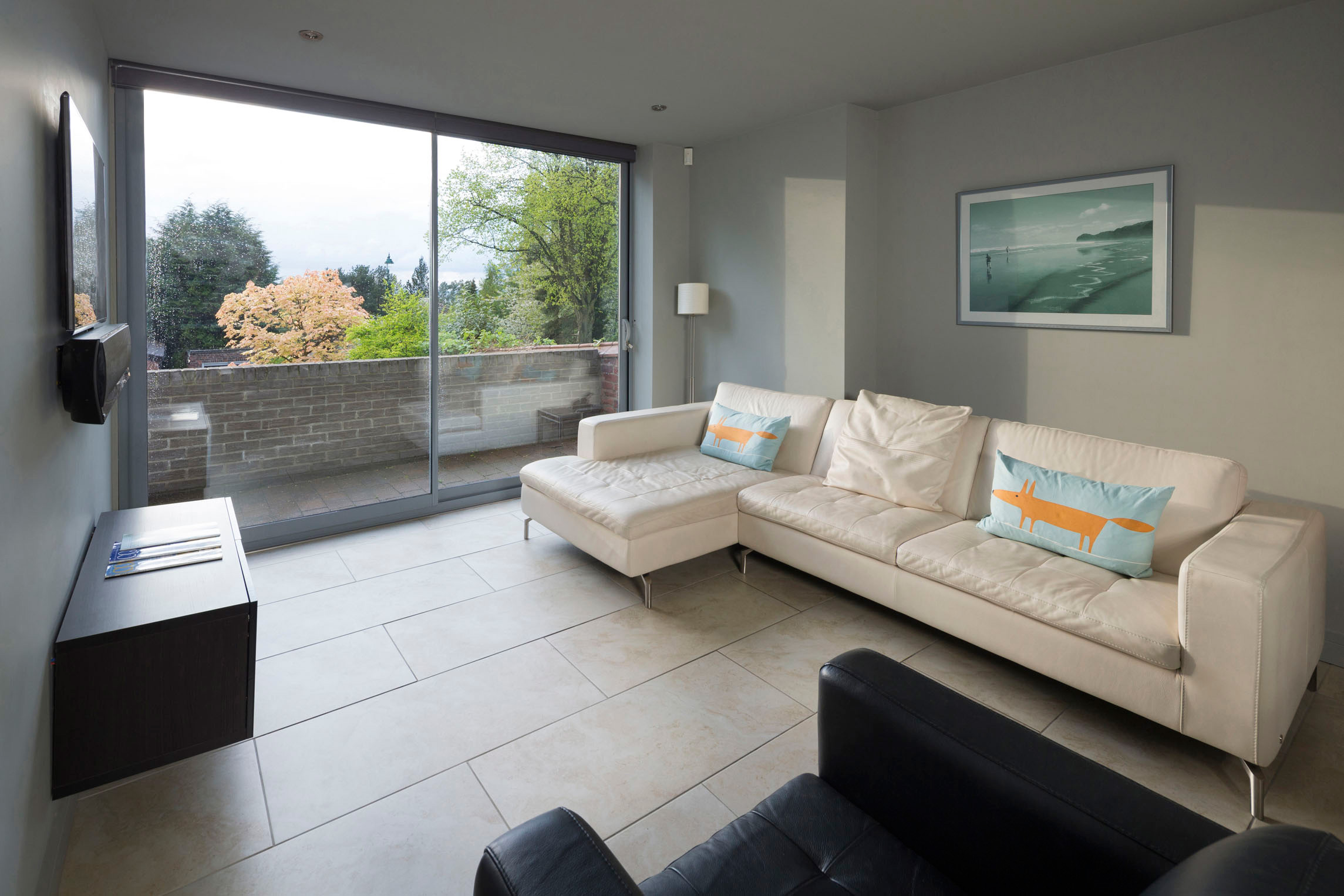

When the small electrical supply is switched on, Liquid Crystal Molecules align and incident light passes through
-- Smart Film instantly clears.

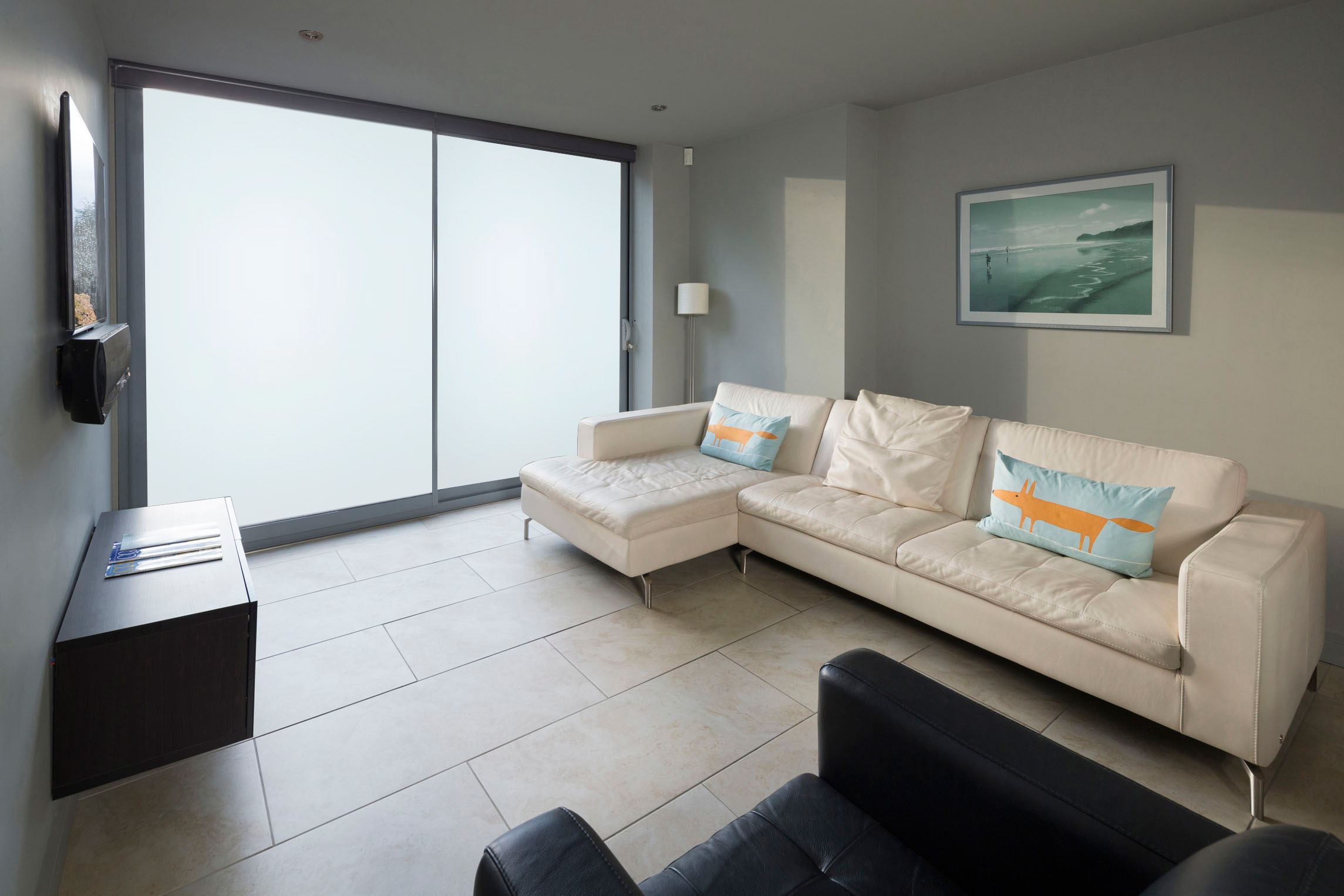

When the power is switched off, Liquid Crystal molecules are randomly oriented, scattering light
-- Smart film becomes opaque (frosted, private).
Smart Film Samples are available!!!
If you want to apply Smart Film in your own house, or you want to resell smart film as your new business, but you are not familiar with this new product......We are offering:
1. FREE Electronic Smart Film sample
2. Intelligent Self Adhesive Film sample kit (packed in a flight case, REFUND when you place a firm order).
Please contact us now for more information. WhatsApp: +86 13711583005 Kate
Product Parameters
|
Item |
Mode | Specification | |
| Optical Parameter | Visible Light Transmittance |
Power on |
>83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
5-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-90°C |
||
|
Service Times |
Power on |
>15 years |
|
|
Switching Times |
|
>2 millions |
|
Application
Clear or Opaque, you decide!
A click to change the glass tranparenc
Factory
4.5m Fully Auotmatic Cutting Machine
Make Busbar On Smart Film
Smart Film Ready For Packing
Smart Film Rolls
Goods Package
FAQ
1. Are you a manufacturer or trading company?
2. Does PDLC Smart Film and Smart Glass block harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
3. Is PDLC Switchable Film energy efficient?
Yes, it's a green product that only consumes 5-8 W/㎡.
4. Can customers install Smart Film by themselves?
Yes, we offer a complete installation kit as well as instruction video and document. We provide technical support online to make sure new clients can finish their project perfectly.
5. What is the difference between self-adhesive smart film and non-adhesive smart film?
High Transparency Self Adhesive Smart Film can be applied onto the existing glass directly. Non-adhesive smart film is laminated between 2 pieces of tempered glasses to achieve laminated smart glass.
6. Do you offer Smart Glass?
Yes. High Transparency Self Adhesive Smart Film, High Transparency Laminate Smart Film, Intelligent Glass, Transparent LED Glass.
7. Can you project on PDLC Switchable Film/Privacy PDLC Switchable Glass?
Yes, Smart Film and Smart Glass can be used as a rear projection screen.
