PDLC Smart Film For Office Glass Partition
4 year ago
Product Description
High Transparent Pdlc Switchable Glass Film is a new type of electronic light control product. Intelligent PDLC Film device is to inject a liquid crystal/polymer hybrid material between two transparent conductive films. Without the effect of an electric field, the electronic control intelligent control film is in Opaque state. Electricity generates an electromagnetic field, so that the polymer in the middle is ordered regularly and reaches a transparent state. The dimming film is a new type of electronic light control product,
High Transparency Self Adhesive Smart Film device is to inject a liquid crystal/polymer mixed material between two transparent conductive films. In the absence of an electric field
Smart transparent film technical diagram
Technical Principle
Double Glazing Intelligent Glass In the natural state, the liquid crystal molecules inside it are arranged randomly, the refractive index of liquid crystal is lower than that of the polymer outside, and the incident light scatters in the polymer and is milky white, that is, opaque.After electrification, the droplets in the dispersed liquid crystal polymer are rearranged, and the liquid crystal changes from disorder to directional order, so that the refractive index of the liquid crystal is the same as that of the polymer, and the incident light can completely pass through, Pdlc Smart Laminated Double Glazing Glass forming a transparent state. Intelligent dimming glass can be based on different occasions, such as mood, functional requirements can change the mood of the glass in a flash, the function such as demand can change glass appear a performance in - instantly, truly achieve the "the effect of light with me to move, it also is the magical thing about this state of the user can conveniently control switch, switch or remote control, Smart Glass Privacy Film Tempered Glass slightly press can shape the privacy, effectively protect the individual privacy space Self Adhesive Switchable Film Glass.
Product Parameters
|
Item |
Mode | Specification | |
| Optical Parameter | Visible Light Transmittance |
Power on |
>83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
6-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-70°C |
||
|
Service Times |
Power on |
>12 years |
|
|
Switching Times |
|
>2 millions |
|

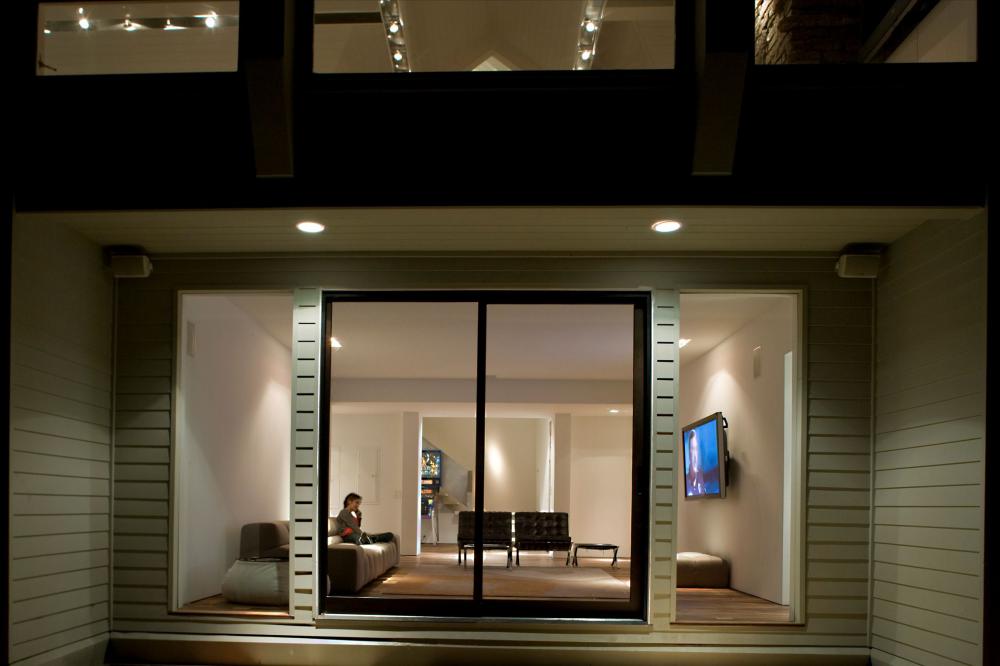

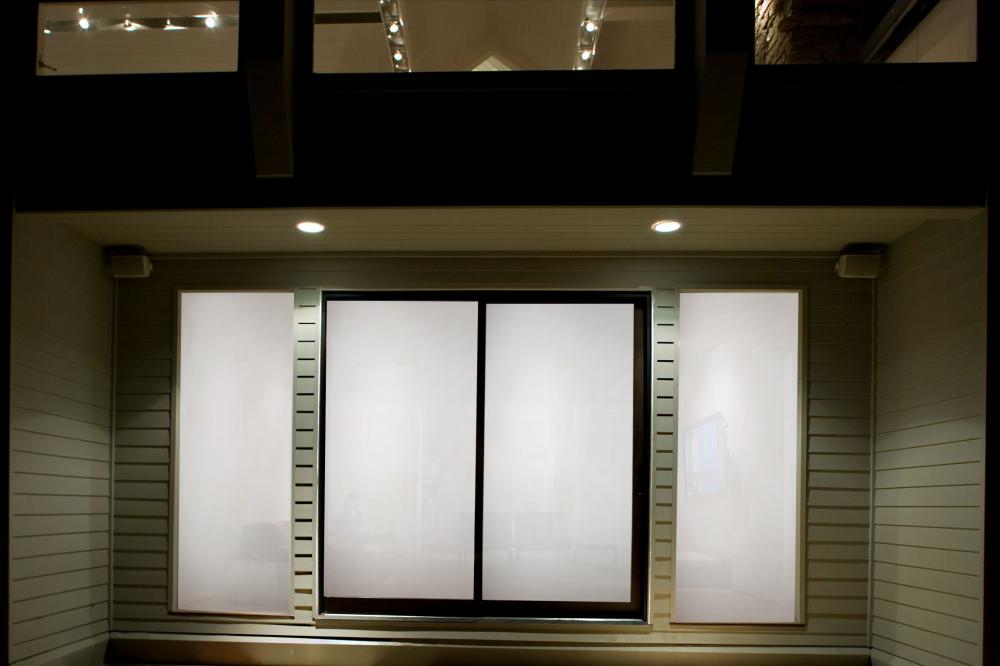

The Smart Film is in an opaque state; when alternating current is applied, the liquid crystal molecules are arranged in an orderly manner. At this time, Switchable Smart Film changes from an opaque state (OFF state) to a transparent state (ON state). Through the action of the electric field, it is possible to realize a rapid transition from on-state to off-state, off-state to on-state. Technical index:
1) It appears milky white under the power-off condition (off state), and is colorless and transparent when energized (on state). 2) The light transmittance in the open state is not less than 75%, and the light transmittance in the off state is not more than 2%
3) The viewing angle is not less than 140 degrees
4) Working voltage is 18-75V (AC 50/60 Hz)
5) Response time: off state (OFF state) → open state (ON state) less than 5ms, open state (ON state) → off state (OFF state) less than 50ms
6) Power consumption: 5W/m2
7) Size: The standard size is 2600mm*900mm, other sizes can be customized according to customer requirements
8) Working temperature is -20oC-60oC
9) The service life is greater than 50000 hours

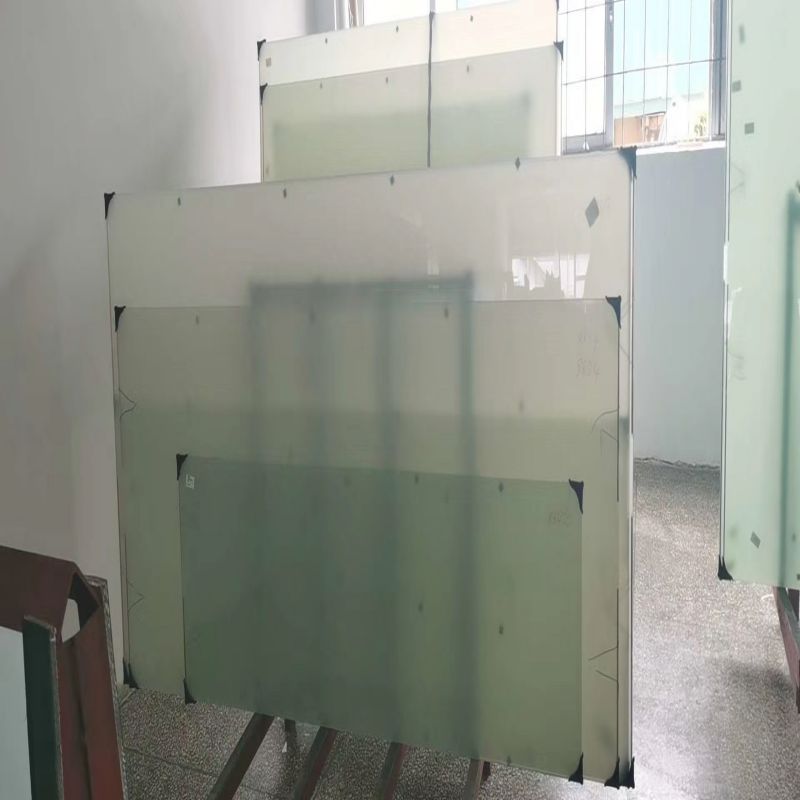

Switchable Film Glass
Application
Factory
After sales & clients comments
FAQ
1.Does Smart Film privacy film blocks harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
2.Is Smart Film energy efficient?
Yes, it's a green product that only consumers 6-8 W/㎡.
3.Can customers install Self Adhesive Smart Film by themselves? Electric film tint focals Intelligent Glass 12+12mm
Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.
4.How can I purchase or get a quote?
Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-13711583005.
5.What is the difference between self-adhesive PDLC film and PDLC film?
Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which
can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to
form a sandwich structure.
6.Do you offer Switchable Glass?
Yes, we customized PDLC Glass according to customers' requirements.
7.Can you project on Smart Glass?
Yes, Intelligent Glass can be used as a rear projection screen.
