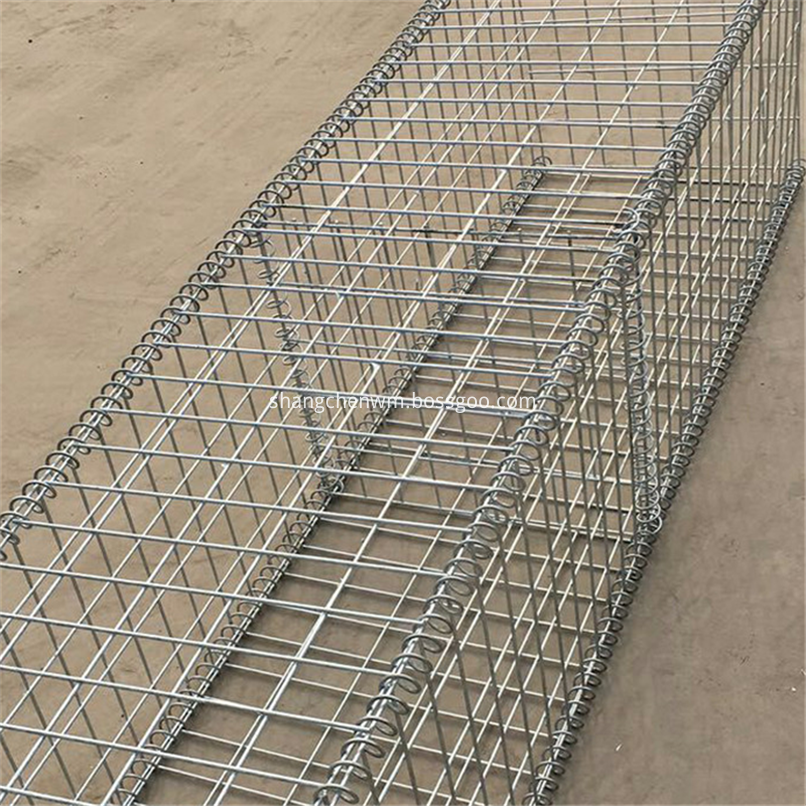

Galvanized/ Galfan/ PVC Coated Welded Gabions Retaining Wall

The Gabions retaining wall be made from nice steel wire, the surface treatment about: galvanized, galfan and PVC coated. The gabion box mesh with rface smooth and neat, lightweight quality, uniform mesh. acid and alkali resistance, welding firm, beautiful, widely used and other characteristics. The gabion mesh wall has low cost, easy installation, time and labor saving, high efficiency.

Applications of Gabion Stone Wall :

• Stabilization and reinforcement of slopes with deviation
• Construction of support walls with flat or tiered surface
• Preventive stabilization of soil
• Preventive net for rock-fall confinement
• Strengthening of water barriers, canals and docks
• Re-direction of water flow of rivers and canals
• Coating of river banks, canal and stream banks
• Reinforcement of bridge base and extrusion of hydropower stations
• Retaining of mounds

Wire quality:

• Heavy galvanized wire, zinc according to BS 443, min zinc coating 255 gr/m2 and tensile strength < 500 Ν/mm2
• Heavy galvanized wire, with 5% aluminium (GALFAN or Zn95Al5), zinc according to EN 10244-2, min zinc coating 255 gr/m2 and tensile strength < 500 Ν/mm2
• Plastic coated wire (PVC), min PVC coating 0.5 mm, inside heavy galvanized wire, zinc according to BS 443, min zinc coating 255 gr/m2 and tensile strength < 500 Ν/mm2

 Wire mesh diameter: 3.00 mm, Horizontal-selvedge wire diameter: 4.00 mm

Roll mesh weight (+/-) : 1,75 kg/m2, Gabion mesh weight (+/-) : 2,00 kg/m2

Weled wire mesh sheet specification

Packing of gabion box

1.shrink film+ label
2.water-proof paper+ shrink film+ label
3.water-proof paper+ shrink film+label, then incardboard carton
4.water-proof paper+ shrink film+label, then in pallet.
5.as customers' specific requirements.
