Directly Burial Fiber Optic Cable GYFTY63

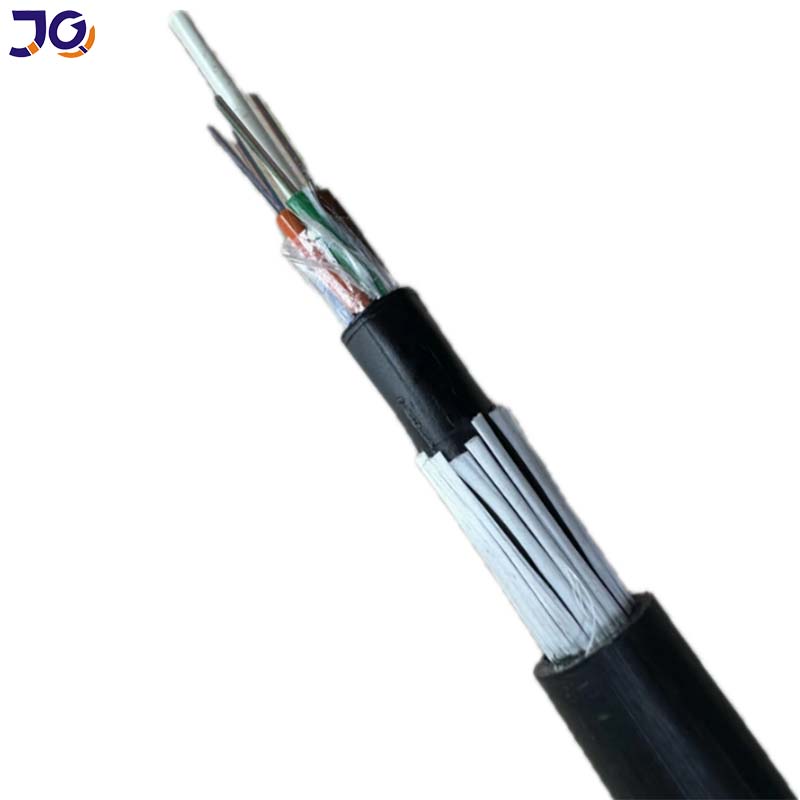

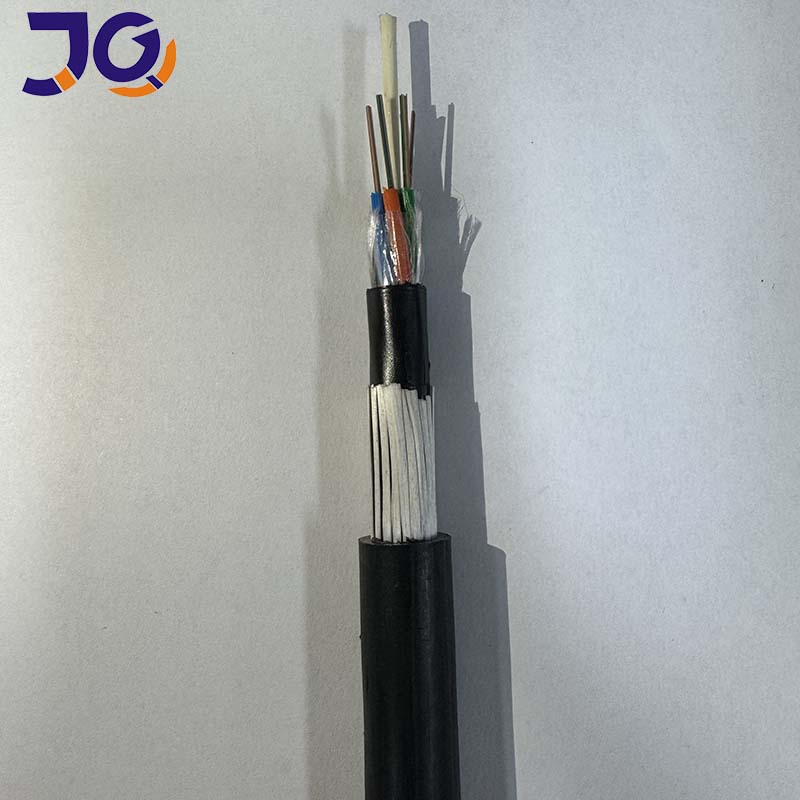

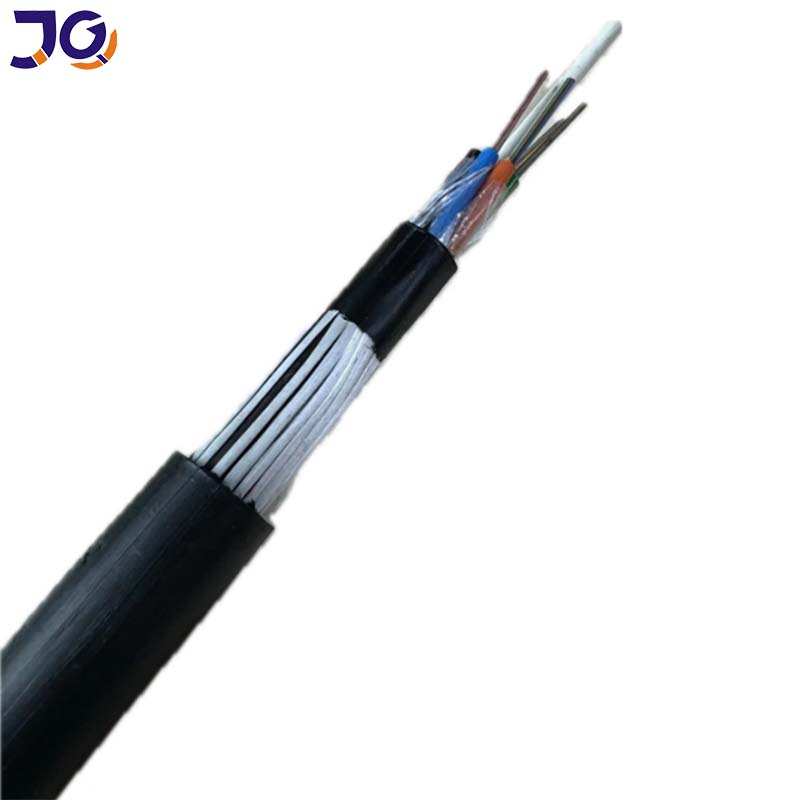

The GYFTY63 anti-rodent optical cable features a unique design for corrosion resistance. Fiber optics are placed in loose tubes filled with waterproof grease, which provides a protective barrier against moisture. The central strength member is made of fiber-reinforced plastic (FRP), while the gap between tubes is sealed with water-blocking grease. A layer of sheath material is then extruded outside the cable core, with glass yarn added as a rat-proof material. Finally, a low-smoke halogen-free flame-retardant sheath is applied for added protection. This advanced design ensures reliable and durable performance in a variety of applications.

Item	GYFTY63 Fiber optic cable G652D 48 Cores
Number of loose tubes	4 tubes, each tube containing 12 cores
Attenuation Coefficient 1310nm dB/km	≤0.35
Attenuation Coefficient 1550nm dB/km	≤0.22
Central strength member	Fiber reinforcement plastic(FRP)
Inner sheath	PE
Anti rodent material	Fiberglass yarn
Outer sheath	PE/LSZH
Tension（Long Term）	3000N
Tension（Short Term）	1000N
Crush（Long Term）	3000N/10cm
Crush（Short Term）	1000N/10cm
Operating temperature	-40～+70℃

The GYFTY63 anti-rodent optical cable boasts a robust design—buffer oil within the inner casing safeguards optical fibers, providing protection and waterproofing. Non-metallic reinforcers and glass yarns absorb axial loads, ensuring mechanical strength. A water-blocking ointment fills the cable core, preventing water ingress. Additionally, the cable is designed to resist rodent damage, ensuring reliable operation.

Our self-supporting aerial cable features a unique extra length control and precise stranded pitch control, ensuring excellent mechanical and environmental performance. Completely metal-free, it effectively resists electromagnetic interference. The glass fiber rodent structure prevents general voles and ground squirrels from invading.
