SDLPF W/HC 240

Aluminum Low Pressure Filter

--up to 280 l/min

-- up to 50 bar

--Material: Aluminum

1.Technical specification

1.1 Filter Housing

Return line filer consists of filter head, filter element an. filter housing.

1.2 Filter element

Filter elements are validated according to lSO test standard, with the following pressure stability values

BN/HC: 25 bar

BH/HC:210 bar

Wire mesh (W/HC) : 30 bar

Filtration Rating in μ m：3 to 100

Compatibility

It can be used for mineral oils, lubrication oils, non-flame fluids, synthetic and rapidly biodegradable fluids.

For water or other application, please contact us.

2.General

Mounting: inline filter.

Flow: Inlet: side

         Outlet: opposite side with same height

Temperature range:-30℃ to +100 ℃

Pressure setting of clogging indicator

ΔPa=5 bar-10%(2 bar available) (others on request)

Bypass cracking pressure

ΔPo=6 bar+0.5bar (3 bar available) (others on request)

3. Application fields

LPF series low pressure filters are widely used in the following fields:

Steel industry: Used for oil filtration in steel hydraulic system to protect hydraulic equipment from pollution.

Mechanical manufacturing: Used as a filter element in the hydraulic system of various mechanical equipment to improve the service life and performance of the equipment.

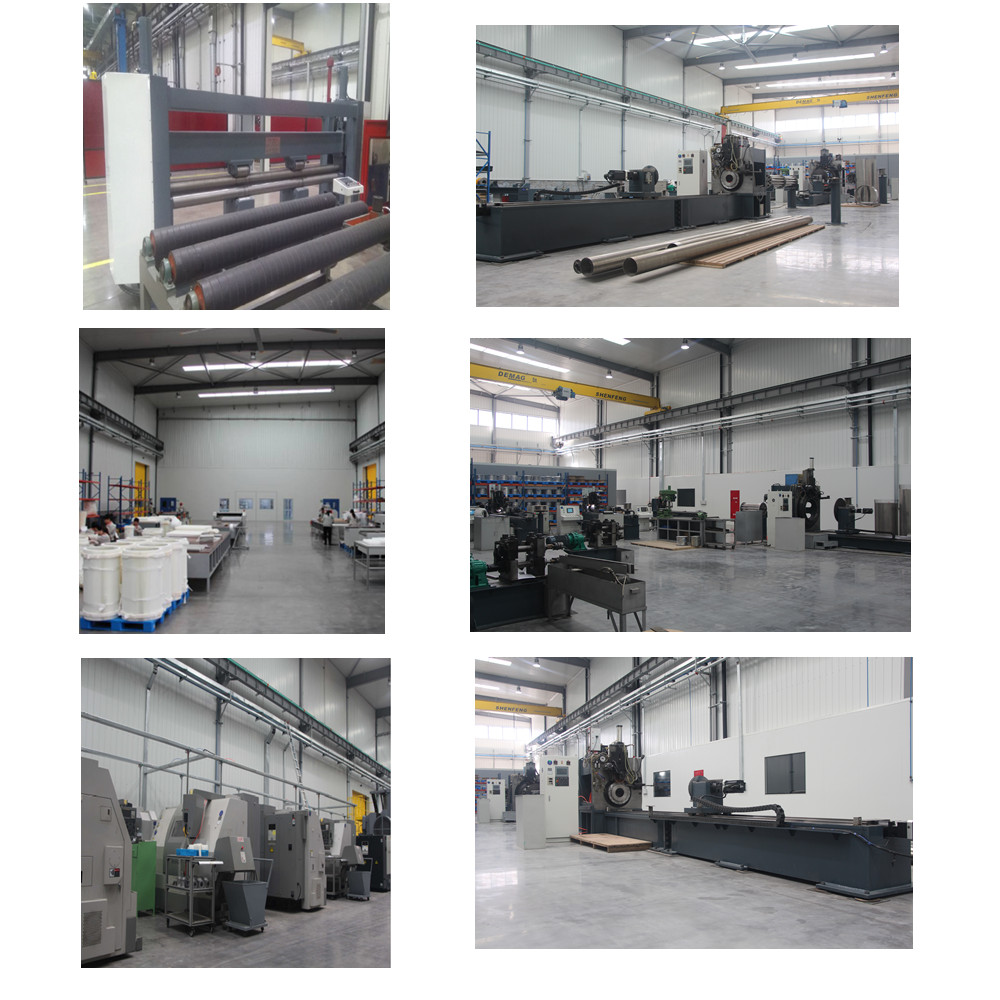

4. Company Profile
