FJ11 series Multi-axis finger operated joystick
2 month ago
Product Features
l Dual-axis finger operated, spring return.
l With center tap potentiometer angle detection.
l 2mA maximum current directional switch.
l Proportional amplifier to direct drive hydraulic proportional valve optional.
Application
Typical application on remote control box, off-highway vehicle.
Technical Information
Mechanical features
Travel angle：±32º
Operating type:Spring return,dual-axis arbitrary directional operated
Breakout force：3.8N
Operating force（max）：12N
Maximum allowance force：300N（>160N,H handle）
Expecting life：>2 million cycles
Weight：125g
Electrical data
Power supply：<36Vdc
Total resistance：5K&;
Electrical angle：±30°
Center tap voltage：48%～52%（Percentage of power supply）
Center tap angle：±2.5°
On-load voltage (max)：32Vdc
Allowance maximum power dissipation：0.25W（25℃）
Directional switch：Load capacity:2mA@30Vdc (Resistance load)
Breakout angle：±3°～±5°
Contact resistance：<200&;
Environmental data
Operating temperature：-30℃～+70℃
Storage temperature：-40℃～+85℃
Protection level：IP65（above the flange）
Product Configuration
Type FJ11 - □□□ - □□□ - □□□
Code ① ② ③ ④
Description
① Product type
FJ11 series joystick,5K&; center tap potentiometer , 2mA directional switch, spring return,
installation dimension 45mm*45mm
② Operating type
1A=Spring return single-axis forward and backward directional operated
2AC=Spring return, dual-axis arbitrary directional operated,（with guide groove）
③ Output Signal
P051=Potentiometer, less than36Vdc power supply,5K&; center tap potentiometer, 0%-100%
output voltage,forward and backward directional switch
PWM224= PWM with proportional amplifier current output,24Vdc power supply ,2-way output
PWM424= PWM with proportional amplifier current output,24Vdc power supply ,4-way output
PWM212= PWM with proportional amplifier current output,12Vdc power supply ,2-way output
PWM412= PWM with proportional amplifier current output,12Vdc power supply ,4-way output
④ Handle
S=Without button
L=Without button
H-With button
Dimensions
L handle S handle H handle
Top view
Product Installation
Single-axis operated Dual-axis operated

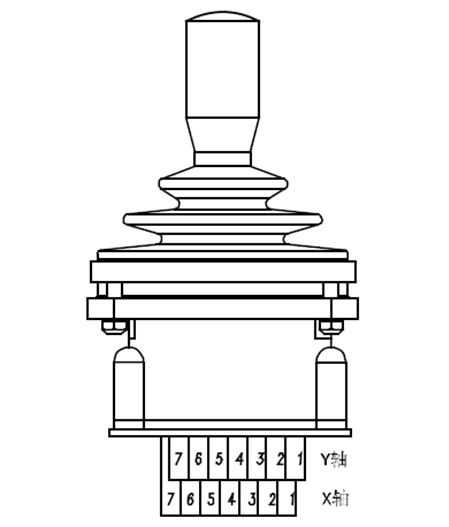

电气安装Electrical Connections
电位器接线方式Potentiometer connections：
|
接线端connector |
功能Function |
|
1 |
开关公共端Switch common terminal |
|
2 |
前开关Forward switch |
|
3 |
后开关Backward switch |
|
4 |
电位器滑动端Potentiometer wiper |
|
5 |
电位器A端Potentiometer terminal A |
|
6 |
电位器中位Potentiometer center |
|
7 |
电位器B端Potentiometer terminal B |
|
8 |
按钮开关Button switch |
|
9 |
按钮开关Button switch |
