PPS Product Description
PPS（High Performance Plastics）board bar: What is the difference between PPS and PEEK board bar?
The strength is far worse,Self-lubricating, anti-corrosion, anti-radiation, ultraviolet, etc.
To put it bluntly, PPS is engineering plastic, PEEK is special plastic,The price is far worse The main characteristics of pps board and rod: the maximum allowable working temperature in the air is very high (can work continuously at240 °c, up to260 °c for a short time), maintain high mechanical strength, rigidity and hardness in a high temperature environment, and excellent resistance to chemical corrosion and hydrolysis Performance, excellent wear resistance and friction, very good dimensional stability, excellent resistance to high-energy radiation, good anti-ultraviolet performance, flame retardancy, and excellent electrical insulation.

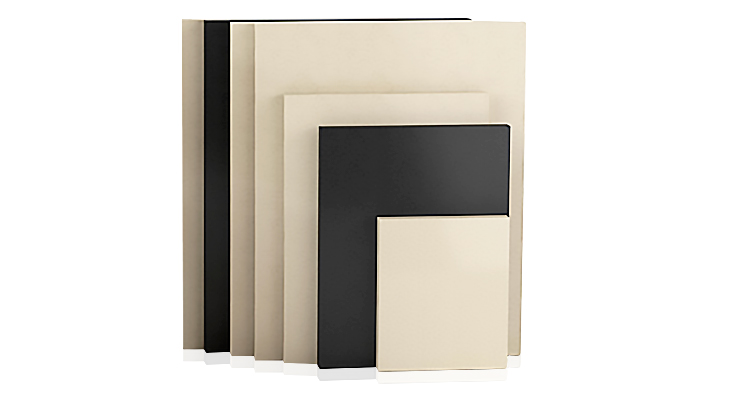

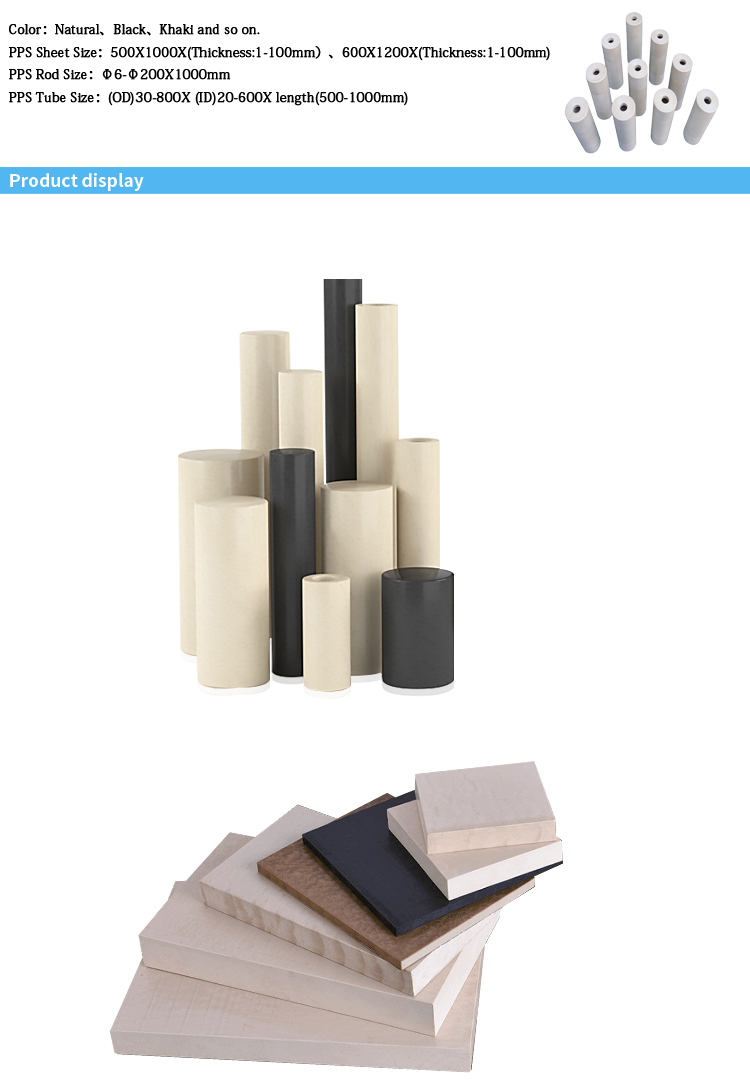

PPS Product display
|
Property |
Item No. |
Unit |
Value |
| 1 |
Density |
g/cm3 |
1.43 |
| 2 |
Water absorption (23℃ in air) |
％ |
0.03 |
| 3 |
Tensile strength |
MPa | 75 |
| 4 |
Tensile strain at break |
％ |
5 |
| 5 |
Compressive stress (at 2% nominal strain) |
MPa |
55 |
| 6 |
Charpy impact strength (unnotched) |
KJ/m2 |
25 |
| 7 |
Charpy impact strength (notched) |
KJ/m2 |
3.5 |
| 8 |
Tensile modulus of elasticity |
MPa |
3700 |
| 9 |
Ball indentation hardness |
N2 |
180 |
| 10 |
Rockwell hardness |
-- |
M84 |
High Performance Plastics
For plate rod tube, the products will be sent for 1 day. And we support OEM and ODM.
