plastic bushings
4 year ago
PEEK Product parameters

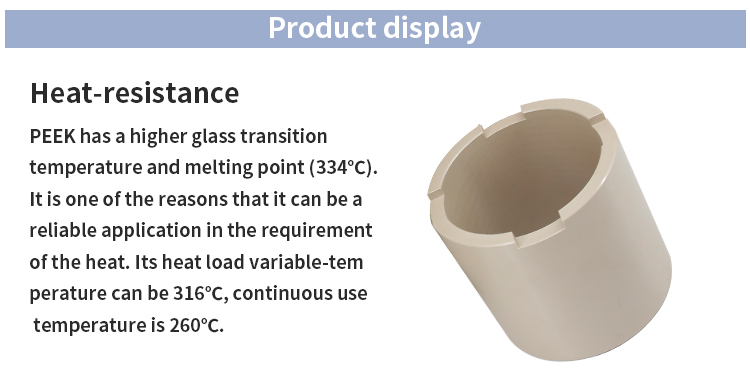

Plastic peek bushing: peek material injection molding processPlastic peek bushings: Are PEEK bushings resistant to high temperatures?
The long-term use of PEEK can be achieved after glass fiber and carbon fiber modification and reinforcement, and it can be achieved in the short-term. The glass transition temperature is degrees Celsius.
PEEK Product
|
Property |
Item No. |
Unit |
PEEK-1000 |
PEEK-CA30 |
PEEK-GF30 |
| 1 |
Density |
g/cm3 |
1.31 | 1.41 | 1.51 |
| 2 |
Water absorption(23℃ in air) |
% |
0.20 | 0.14 | 0.14 |
| 3 |
Tensile strength |
MPa |
110 | 130 | 90 |
| 4 |
Tensile strain at break |
％ |
20 | 5 | 5 |
| 5 |
Compressive stress(at 2%nominal strain) |
MPa |
57 | 97 | 81 |
| 6 |
Charpy impact strength (unnotched) |
KJ/m2 |
KJ/m2 |
35 | 35 |
| 7 |
Charpy impact strength (notched) |
KJ/m2 |
3.5 | 4 | 4 |
| 8 | Tensile modulus of elasticity |
MPA |
4400 | 7700 | 6300 |
| 9 |
Ball indentation hardness |
N2 |
230 |
235 | 270 |
| 10 |
Rockwell hardness |
-- |
M105 |
M102 |
M99 |
For CNC machining, the products will be sent for 3 days. And we support OEM and ODM.
The Chinese name of PEEK is polyether ether ketone, which belongs to semi-crystalline plastic and is a special engineering plastic with outstanding comprehensive performance.
The main advantages are manifested in its excellent mechanical strength, electrical insulation, corrosion resistance and other comprehensive properties.
For details, please consult the PEEK processor or PEEK material supplier.
Plastic peek bushing: which wear-resistant nylon bushing or peek bushing
