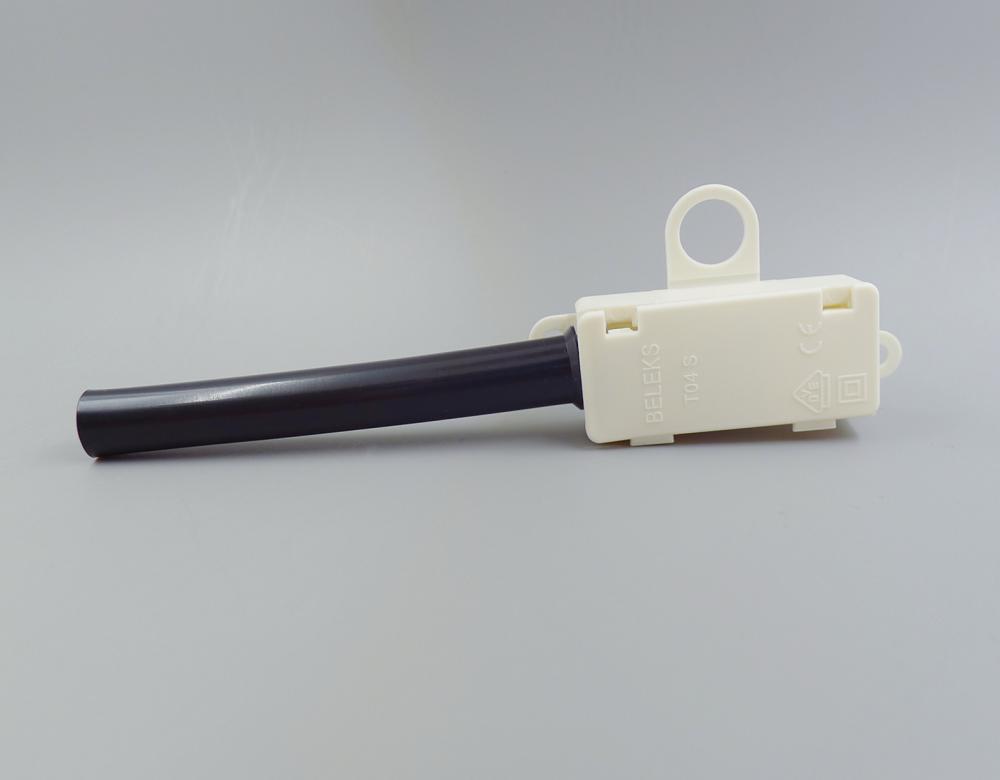

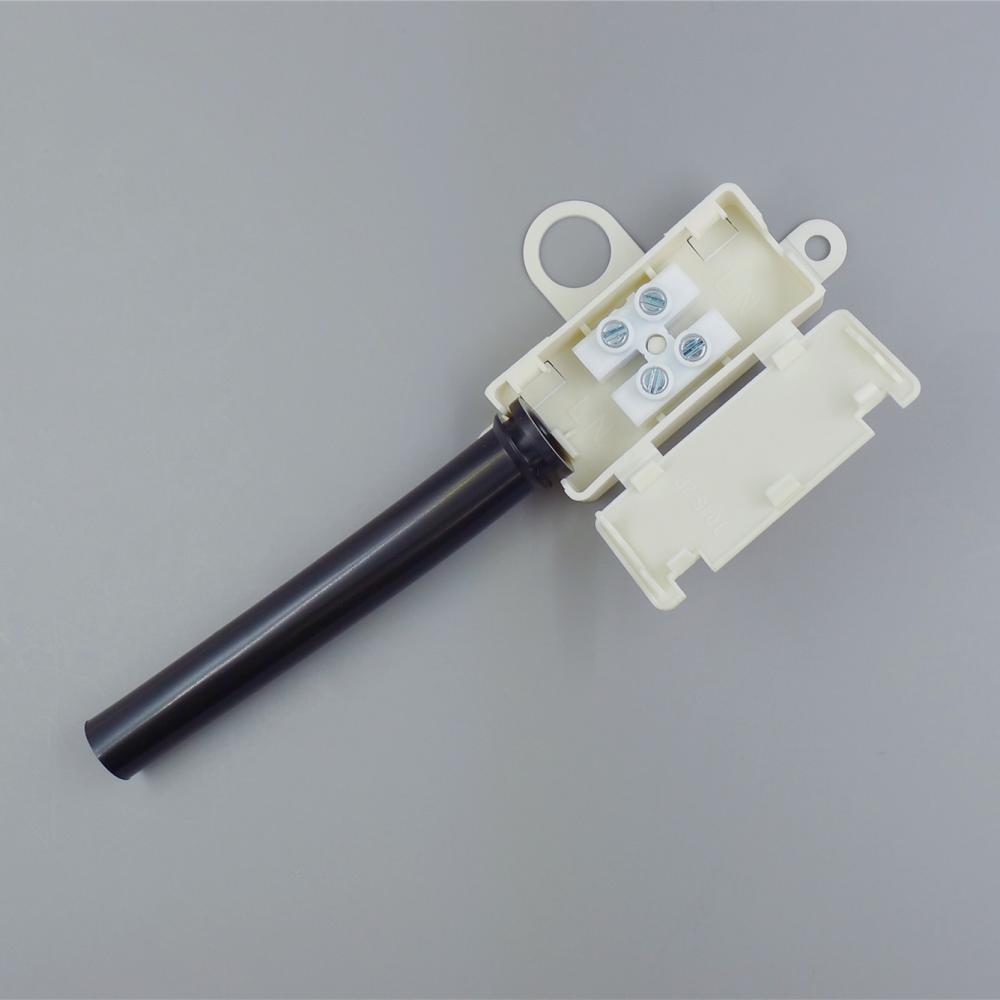

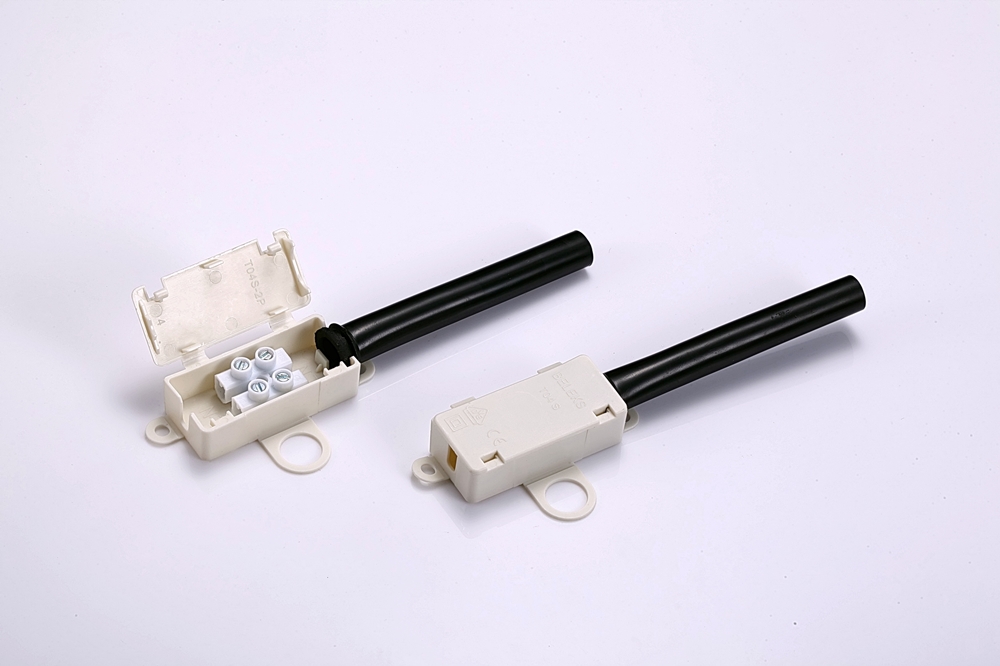

BELEKS junction boxes 411/412/413

7 month ago

29 0 

Jiangmen Krealux Electrical Appliances Co.,Ltd.

5 year

Product details

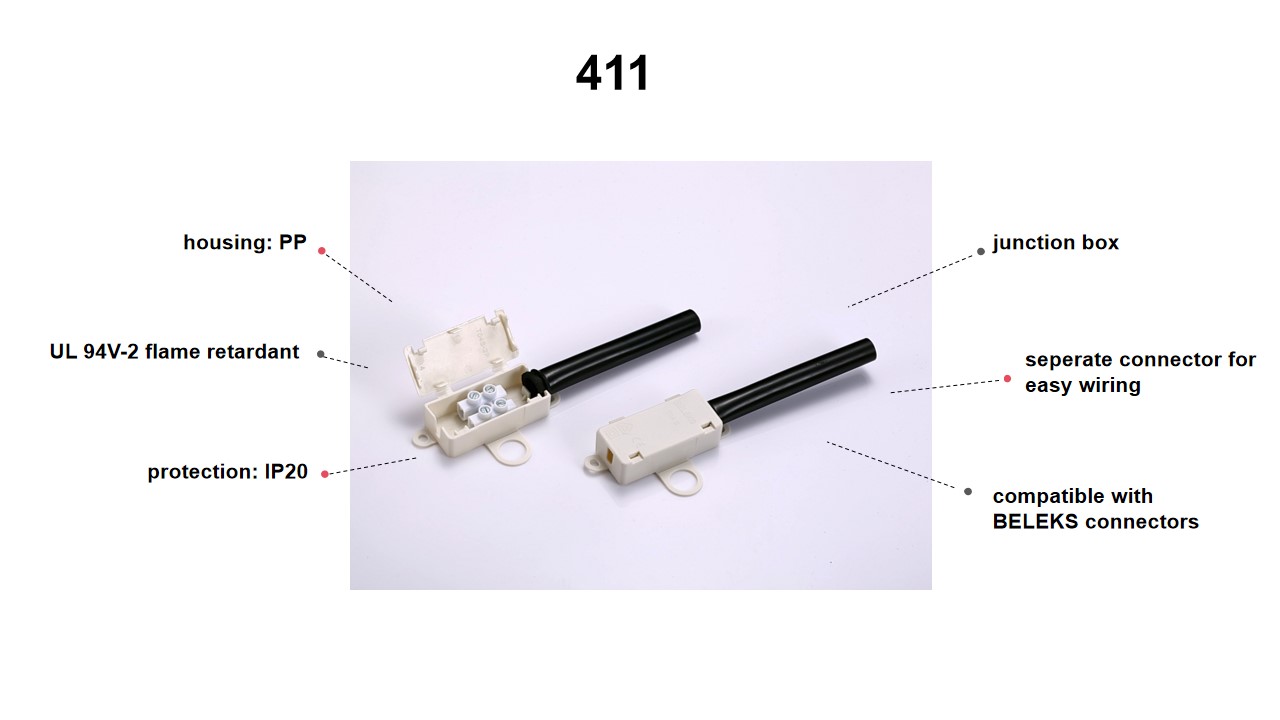

Beleks type 411 electrical junction boxes are UL94-2 flame-retardant and have IP20 protection, ensuring both safety and durability. These junction boxes are compatible with Beleks terminal blocks, providing a seamless connection solution. Constructed from high quality materials, they are UL94V-2 flame-retardant, significantly reducing the risk of fire in electrical applications. The IP20 rating provides basic protection against solid objects larger than 12.5mm, preventing unauthorised access and ensuring the integrity of electrical connections.

Type 411 junction boxes are ideal for a wide range of applications, including industrial, commercial and domestic environments. Their compact design and ease of installation make them a popular choice for electricians and DIY enthusiasts. With the capacity to accommodate high performance terminal barriers, these junction boxes offer flexibility and convenience in electrical wiring and distribution systems. In summary, Beleks type 411 junction boxes are a reliable and safe choice for your electrical needs.

Connector specification:

size of connector: 114.00mm×19.60mm×11.80mm

Annual Production:

30, 000, 000PCS/Year

Product Parameters

Item No.		411/93+T04-Y02S/9(L)+401T
Electrical Data
		IEC/EN
Rated Voltage (V)		450
Rated Current (A)		13.5
Ambient Temperature	Polypropylene	T85

Connection Data
		IEC/EN
Cross Section	Solid conductor	0.5-1.0mm²
	Stranded conductor	0.5-1.0mm²
	Flexible conductor	0.5-1.0mm²
Strip length (mm)		7
Means of connection		screw fixed
Screw		M2.6
Rewirable		√
Number of terminals		multiway
Number of connection points		2
Means of Fixing
screw fixed
Materials
Insulation Materials	Designation	Polypropylene
	Flammability class	UL 94V-2
Clamping Unit		steel
Packing Quantity (pcs/carton)
300

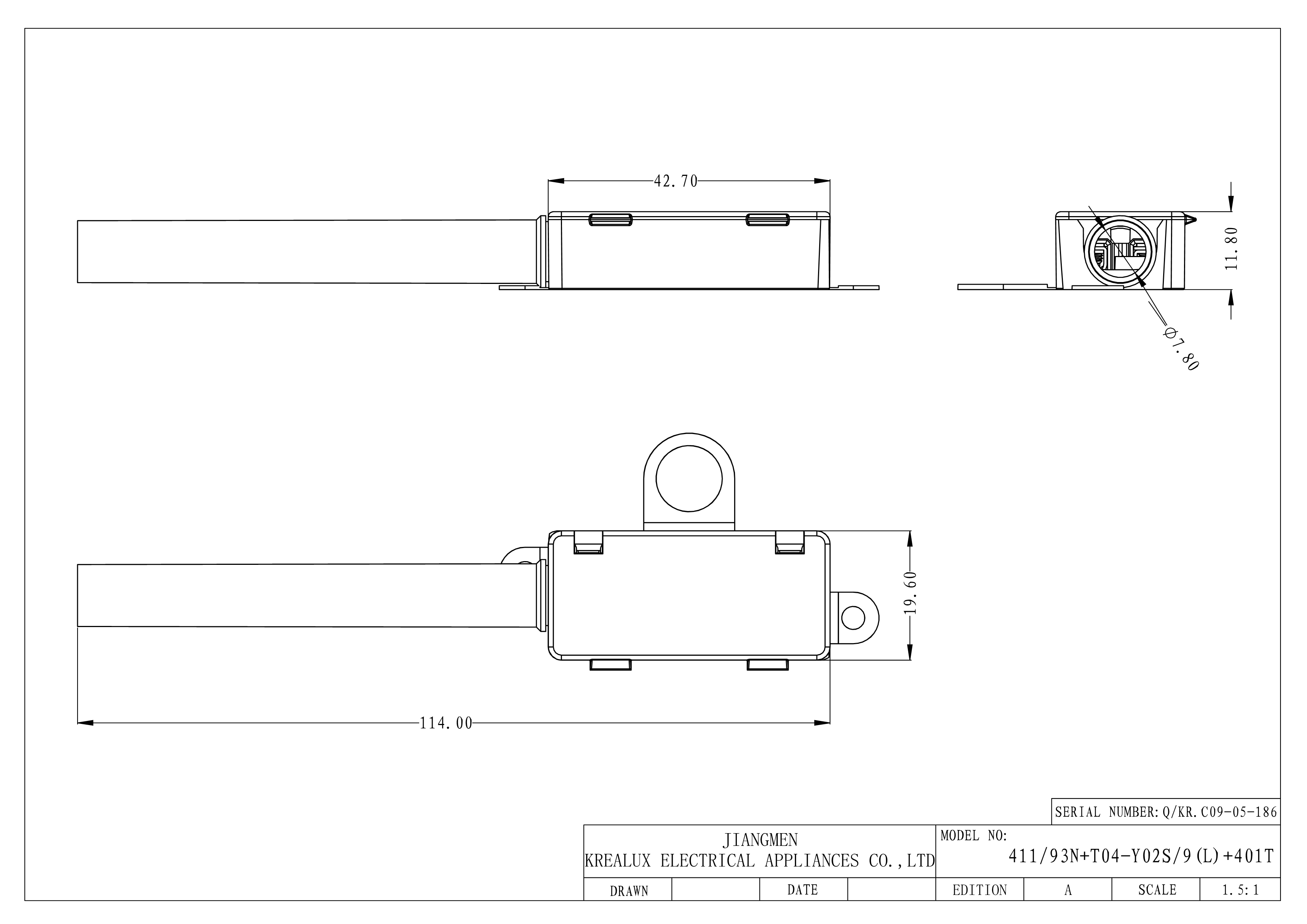

Drawing Cable Connection Box With Terminal Blocks
