BELEKS P04-3P, a 3-pole transparent enclosure terminal block, is a versatile and reliable push in connector designed for various electrical applications. Featuring a compact and transparent housing, it offers clear visibility of wire connections, ensuring easy installation and maintenance. With its robust clamping unit made of copper and stainless steel, the P04-3P compact splicing connector can handle high voltage and current ratings, making it suitable for LED lighting, appliances, and wiring installations. Its VDE, CE, RoHS, and Reach certifications ensure compliance with international safety standards. With its fast and convenient connection mechanism, the BELEKS P04-3P quick splice connector is an ideal choice for professionals seeking efficient and safe electrical connections.

Materials:

Housing & cover: polycarbonate(v2)

lever/button: polyamide(v2)

clamping unit: brass & stainless steel

Packing info:

150 pcs per bag, 20 bags per carton

carton size: 32X27X27.5 cm

net weight: 9.5kg

gross weight: 10kg

Dimensions

Specifications

Item No.		P04-3P
Electrical Data
		IEC/EN	UL
Rated Voltage (V)		450	600
Rated Current (A)		32
Ambient Temperature	Polycarbonate	T85	90℃

Connection Data
		IEC/EN	UL

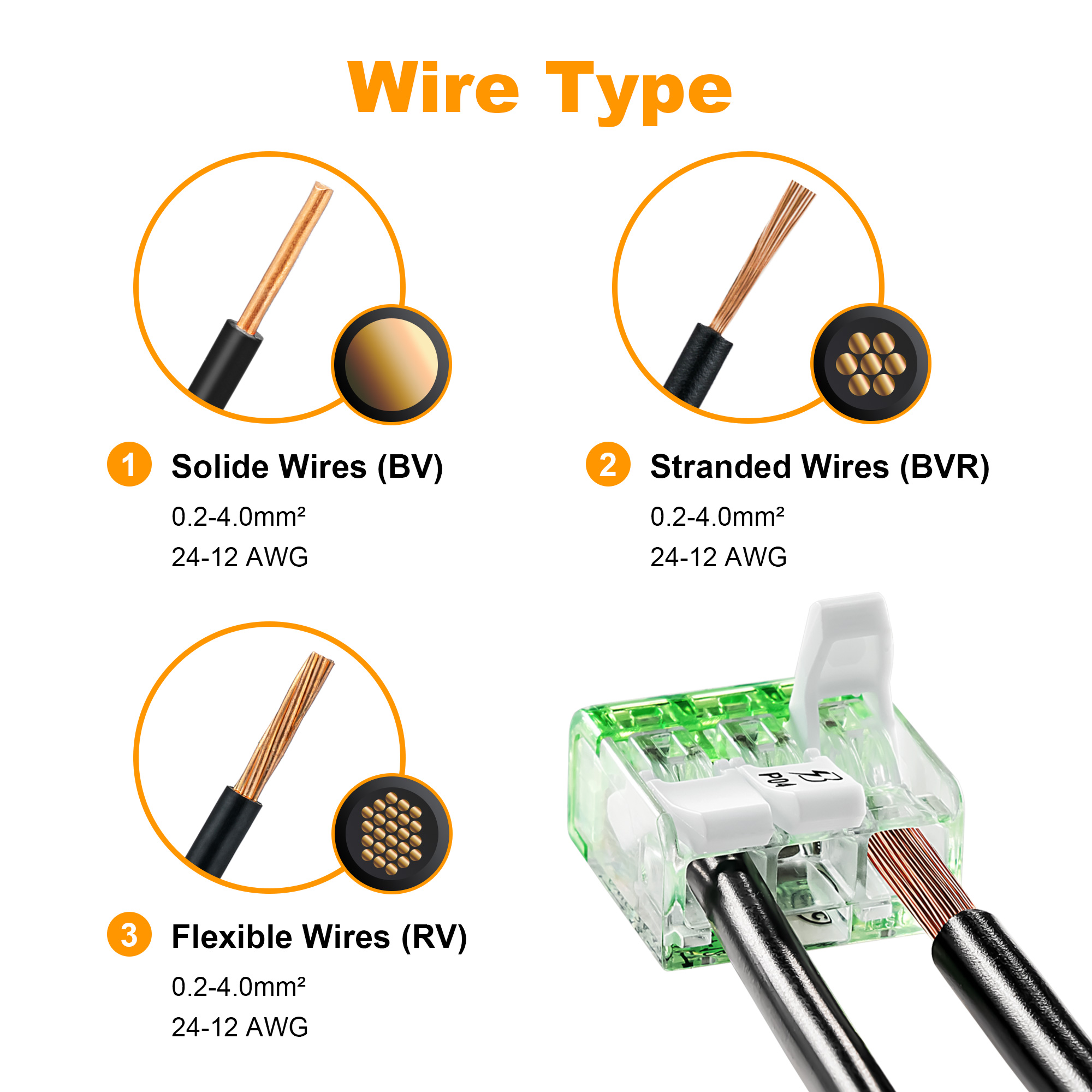

Cross Section	Solid conductor	0.2-4.0mm²	AWG 12-24
	Stranded conductor	0.2-4.0mm²	AWG 12-24
	Flexible conductor	0.2-4.0mm²	AWG 12-24
Strip length (mm)		13
Means of connection		push in
Rewirable		√
Number of terminals		single
Number of connection points		3
Materials
Insulation Materials	Designation	Polycarbonate
	Flammability class	UL 94V-2
Packing Quantity (pcs/carton)
3000
