Product details

BTA41 Series 40A TRIACs YZPST-BTA41-800BW 15-25MA

DESCRIPTION:

The BTA41 triac series is suitable to fit all models of control Found in applications such as motor control ,industrial and domestic lighting ,heating and static switching , motor speed controllers, …Thanks to their clip assembly technique, theyprovide a superior performance in surge currenthandling capabilities

By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at2500VRMS) complying with UL standards

MAIN FEATURES

Symbol	Value	Unit
IT(RMS)	40	A
VDRM VRRM	800/1600	V
VTM	1.55	V

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Value	Unit
Storage junction temperature range	Tstg	-40 ~ 150	℃
Operating junction temperature range	Tj	-40~ 125	℃
Repetitive peak off-state voltage (T =25℃)	VDRM	800/1600	V
Repetitive peak reverse voltage (T =25℃)	VRRM	800/1600	V
RMS on-state current	IT(RMS)	40	A
Non repetitive surge peak on-state current (full cycle, F=50Hz)	ITSM	400	A
I2t value for fusing (tp= 10ms)	I2t	880	A2S
Critical rate of rise of on-state current (I =2×IGT)	dI/dt	50	A/μS
Peak gate current	IGM	8	A
Average gate power dissipation	PG(AV)	1	W

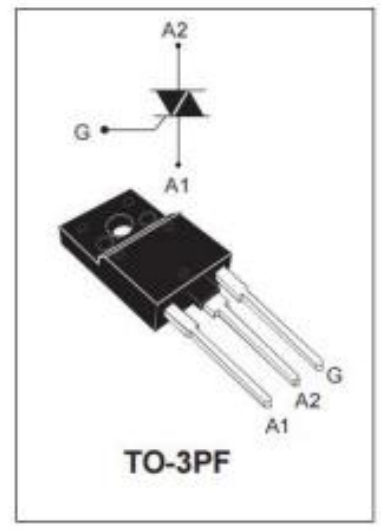

TO-3PF Package Mechanical Data
