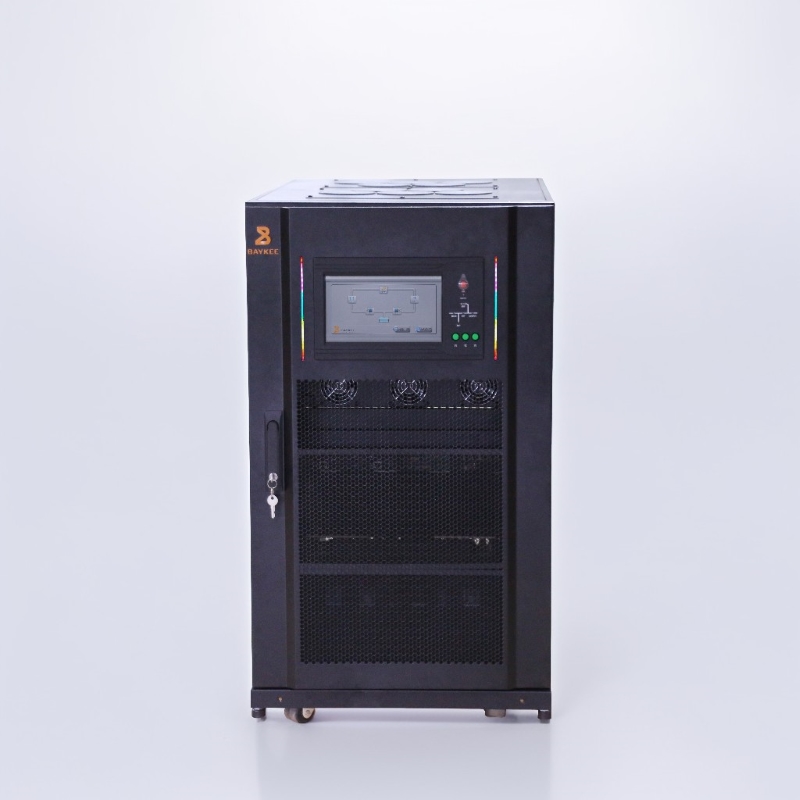

Modular UPS is an advanced UPS system design architecture that breaks the entire UPS system into multiple independent modules, each containing key components such as inverters, rectifiers, batteries and control circuits. The following is a detailed introduction to the Modular UPS modular uninterrupted energy products:

1. Product composition
Modular UPS is mainly composed of the following parts:

Rack: The infrastructure that supports and holds each module.
UPS power module: including rectifier, inverter, charger and related control circuit, responsible for the conversion and distribution of electric energy.
Static switch module: provides a common power supply channel when the UPS is overloaded, and is composed of bidirectional thyristor and control circuit.
Display communication module: As a platform for man-machine dialogue and network monitoring, it adopts intelligent multi-standard modular design and supports online hot swap technology.
Battery pack: Provides backup power to the UPS system to ensure continuous power supply in the event of a mains interruption for lead acid battery, lifepo4 battery of the battery energy storage system.
Second, product characteristics
Scalability: Modular UPS allows users to flexibly increase or decrease the number of modules according to load requirements, thus adapting to different application scenarios and load changes. This scalability helps protect user investments and avoid wasting resources.
High availability: Using N+X parallel redundancy technology, even if one module fails, other modules can continue to work, ensuring uninterrupted power supply. At the same time, the modules can be hot-swappable online, reducing the difficulty of maintenance and downtime.
Energy efficient: Modular UPS uses advanced inverter technology and control strategies to significantly reduce energy consumption and power loss. In addition, its input power factor is high, harmonic interference is small, and the negative impact on the power grid is also small.
Easy maintenance: Because modules are relatively independent and hot-swappable online, users can easily perform maintenance and replacement operations without having to shut down or shut down the entire system.

Modular UPS supports a variety of inlet and outlet modes and voltage and frequency Settings to meet the power supply needs of different countries and regions around the world.
