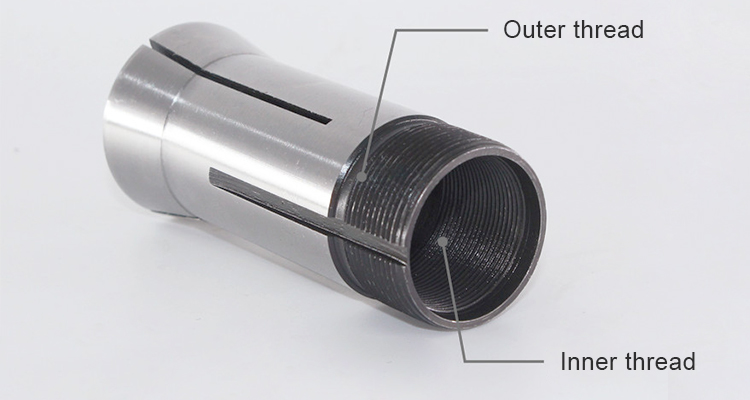

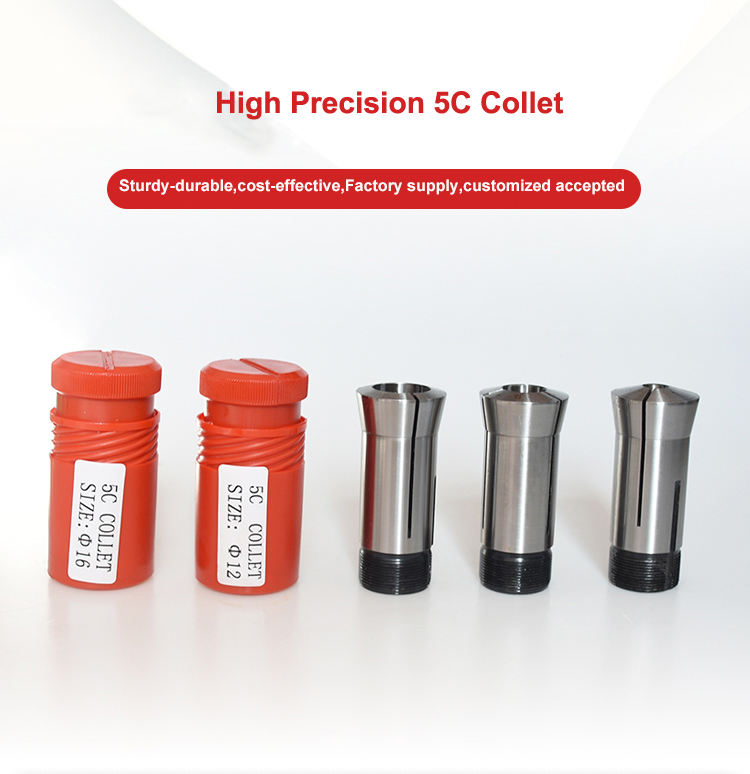

Cnc Lathe Tool Straight Power Milling 5C Collet

We are Pingyuan Best Machine Tools., Co., Ltd., the high-end cnc machine tools manufacturer and supplier from China. Our products line is over 100 models, mainly include: Tool Holder Claw clamps, Tool holder, Tool holder Locking device,  Collet , Spanner , Pull Stud and Nuts , Etc. Collet chuck also include many standards and models like: ISO series, BT30 series, BT40 series, HSK series, NBT series and CAT series, etc. Tool holder claw clamps inlcude ISO series, BT / NBT series, HSK series etc. The collet mainly include ER Collet, OZ Collet, SK Collet and 5CCollet,etc 5C Collet Imperial Set, includes round type, square type and hex type 5C collets. Additionally 5C collets metric set is also available and we will supply discount when order the 5C collet set. We also supply inch size 5C collets.

Product details:

Brand Name

Bestmyt

Product Name

5C Collet Chuck Round/Square/Hex Cnc Tool Collet

Type

round type, square type and hex type 5C collets

Model

 5C collet chuck

Clamping range

1-28mm

Color

Silver

Material

DIN6499B Standard 65Mn Alloyed Special Elastic Steel.

accuracy

0.008 0.005 0.015

Hardness

HRC44-48

Warranty

3 Years

Inspection

100% Inspection

Function

Used for boring, milling, drilling, tapping, grinding and engraving operation etc.

Application

Widely used in clamping tools such as milling machines, drilling machines, tapping, engraving machines, CNC machine tools, spindle machines, etc.

Features

Strong power clamping capability and high precision,are strictly selected to ensure the stability and service life of the product, increase the holding force and extend the service life.

Weight

0.5Kgs

Warranty

3 Years

Inspection

100% Inspection

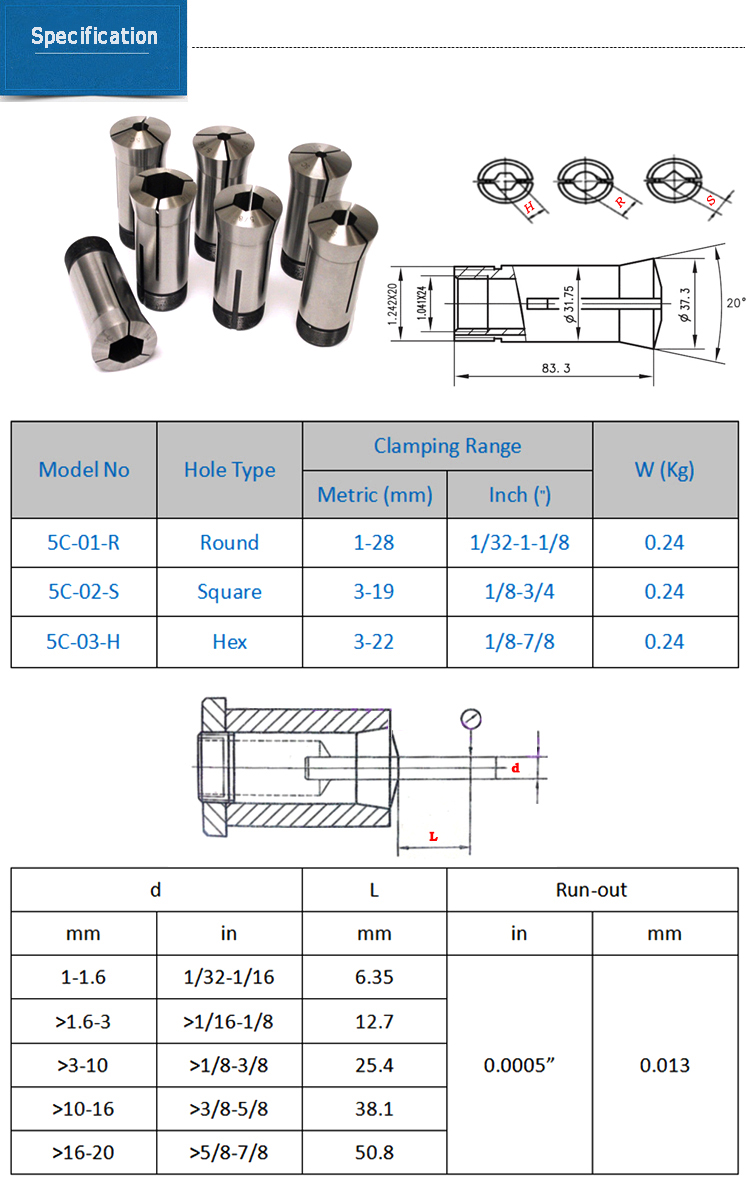

parameter

showing (1)

showing (2)

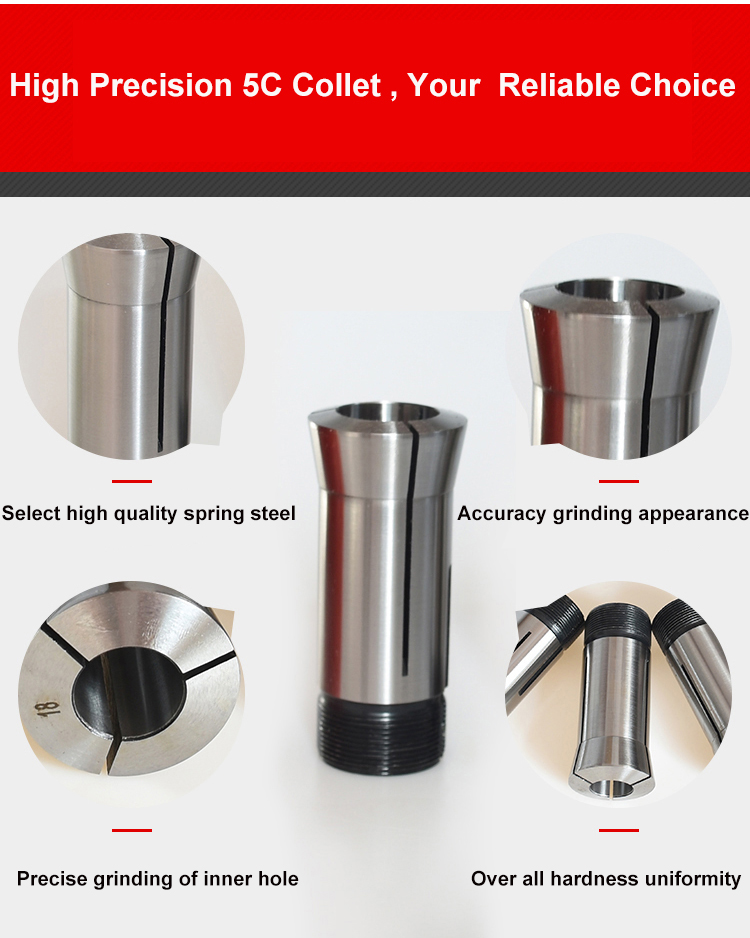

Product Features:

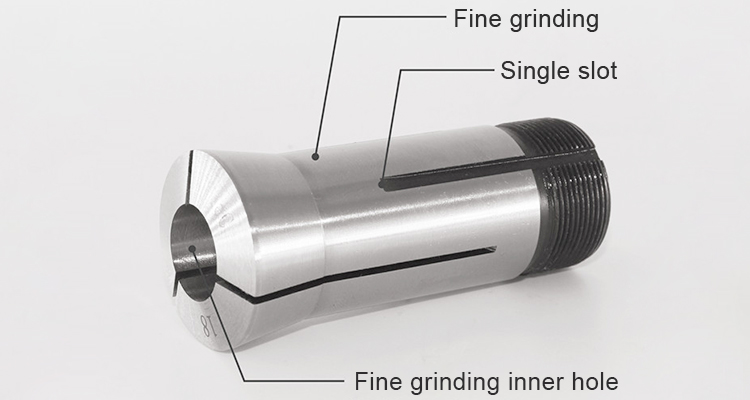

5C Collet (2)

5c Collet 7
