Product details

ER32 Sealed Spring ER Collet ER11/16/20/25/32/40 for Milling Chuck Collet Set

We are Pingyuan Best Machine Tools., Co., Ltd., The high-give up cnc device equipment producer and dealer from china. our merchandise line is over 100 fashions, particularly include: tool holder claw clamps, device holder, tool holder locking device, collet , spanner , pull stud and nuts , and many others. collet chuck also include many standards and fashions like: iso collection, bt30 collection, bt40 collection, hsk series, nbt collection and cat collection, and so forth. tool holder claw clamps inlcude iso collection, bt / nbt collection, hsk collection and so on. the collet specifically include er collet, ouncescollet, sk collet and c2 collet,and many others.

Product Details:

Brand Name	Bestmyt
Product Name	ISO Tool Holder ER32 and ER-UM Spanner Set
Size	ISO Tool Hoder, ER 32 Collets set, ER-UM spanner

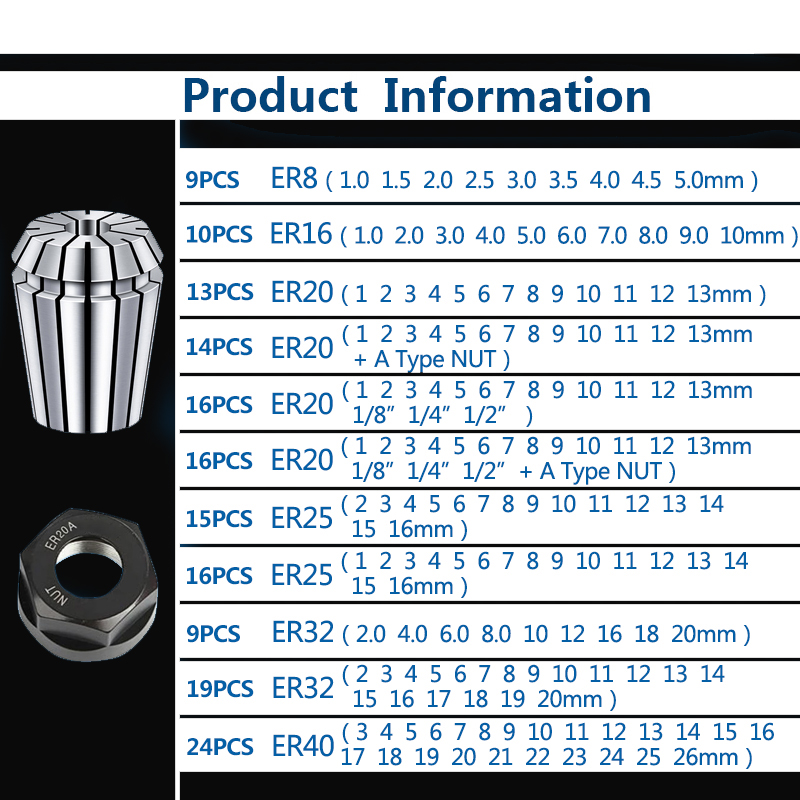

Model	ER Collets set ER32 18pcs Spring Collet
Clamping range	2-20mm
Color	Silver
Material	DIN69871 Standard 65Mn alloyed special elastic steel
accuracy	0.008 0.005 0.015
Hardness	HRC44-48
Standard	DIN69871
Package	Plastic box /wooden box
Function	Used for boring, milling, drilling, tapping, grinding and engraving operation etc.
Application	Widely used in clamping tools such as milling machines, drilling machines, tapping, engraving machines, CNC machine tools, spindle machines, etc.
Features	Strong power clamping capability and high precision,are strictly selected to ensure the stability and service life of the product, increase the holding force and extend the service life.
Weight	4.5Kgs(18pcs)
Warranty	3 Years
Inspection	100% Inspection

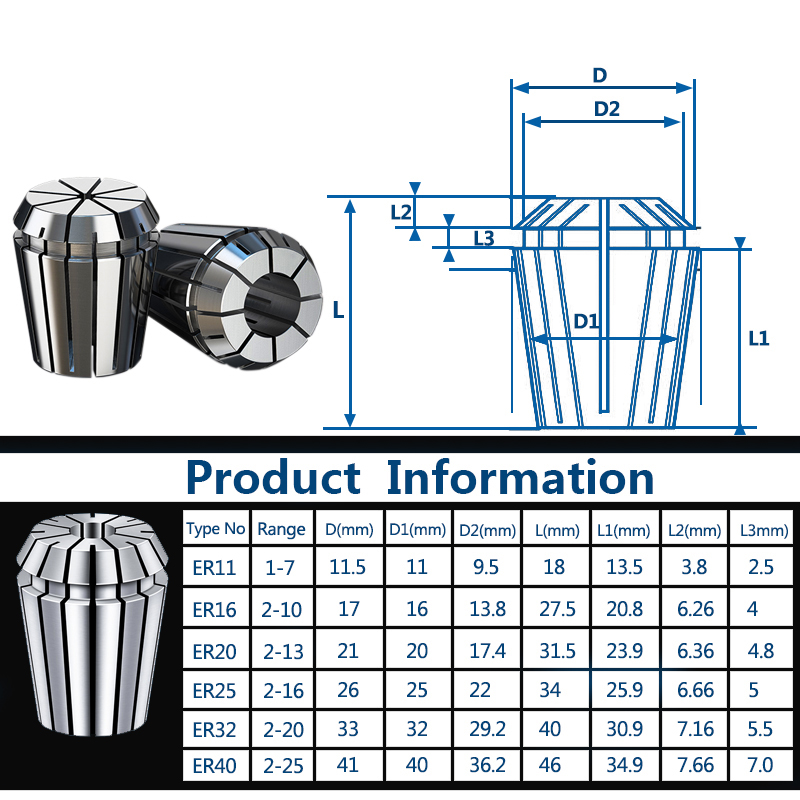

drawing

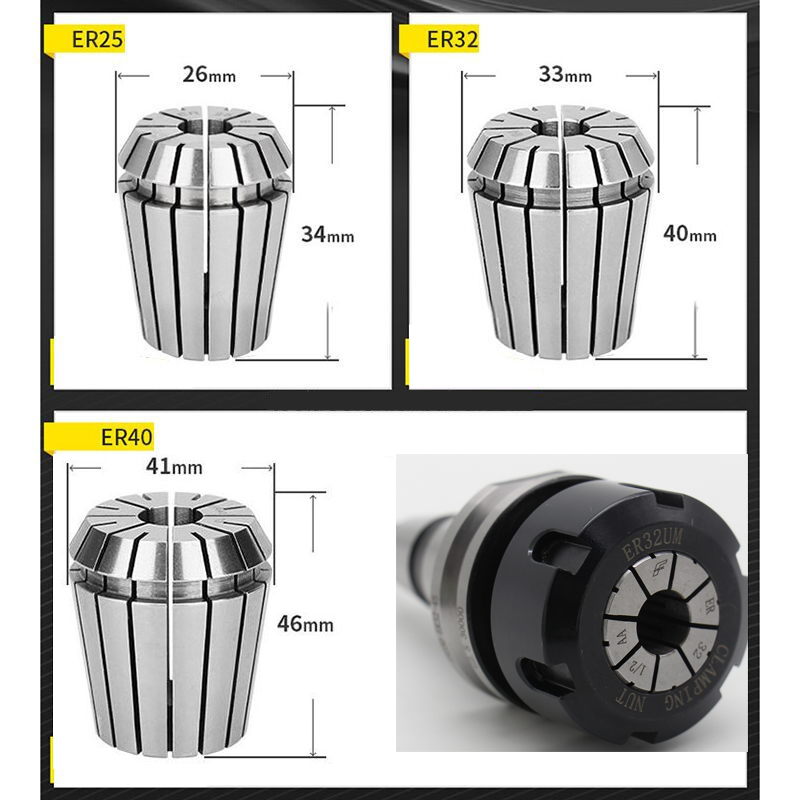

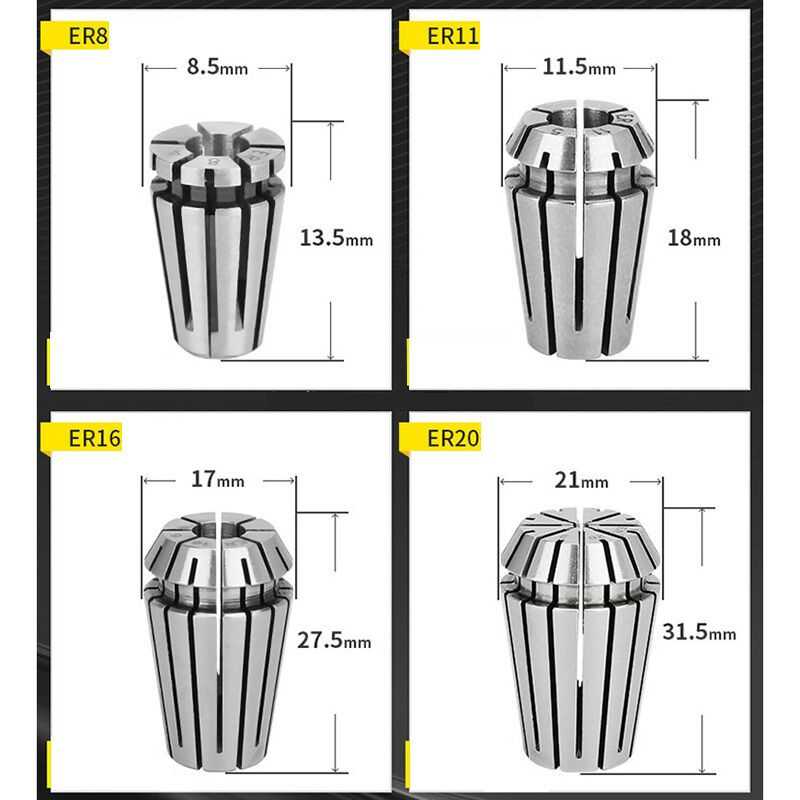

size

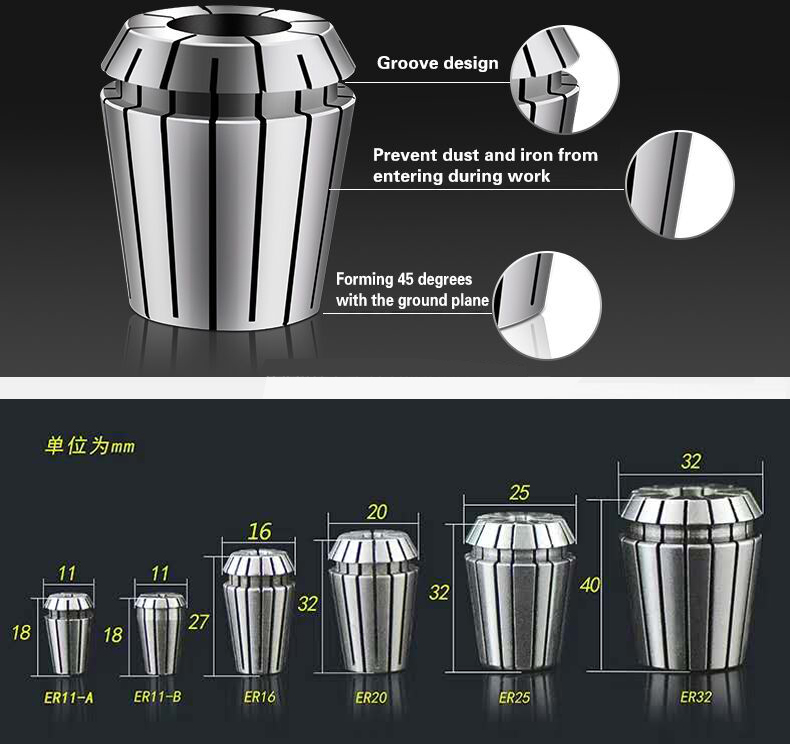

Product Features:

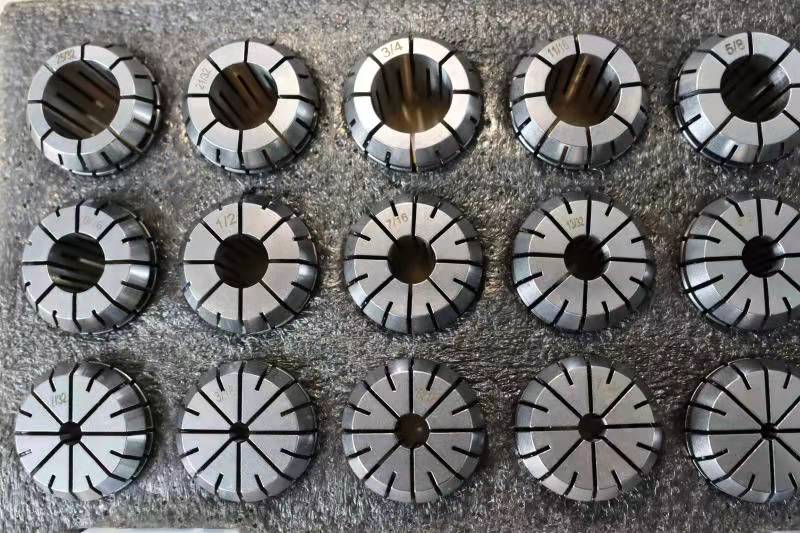

Er32 Collet Sets 3 Jpg
