High precision HSK63F ER32 collet chuck HSK63F-ER32-70L mill holder G2.5 Balanced Woodworking CNC Tool Holders

We are Pingyuan Best Machine Tools., Co., Ltd., the high-end cnc machine tools manufacturer and supplier from China. Our products line is over 100 models, mainly include: Collet Chuck , Tool Holder Device , Collet , Spanner , Pull Stud and Nuts Etc. Collet chuck also include many standards and models like: ISO series, BT30 series, BT40 series, HSK series, NBT series and CAT series, etc. HSK63F-ER32-70L Nickeled Coated Tool Holder belong to HSK series holder.

Product Description

Brand Name

BESTMYT

Model Number

HSK63F-ER32-70 Coated Tool Holder

Color

Bright Silver White with Nickel coated process

Materials

20 CrMnTi Alloyed case hardened steel,black-finished and precisely grind.

Taper tolerance

<AT3

Precision

0.002mm

Surface Roughness

>0.8mm

Roundness

<0.8μm

Carbonizing depth

>0.8mm

Hardness

HRC58-62

Dynamic Balance

G 2.5  24000rpm

Quality control

100% inspection

Warranty

3 years

Service

Customized OEM / ODM

Usage

Suitable for working on drill, lathe,boring machine,milling machine and CNC machine center etc.

Applicable cutters

vertical disc cutter, sets of type of milling cutter, face milling cutter, milling cutter, three face milling cutter, Mechanical spindle and cutting tools and other accessories.

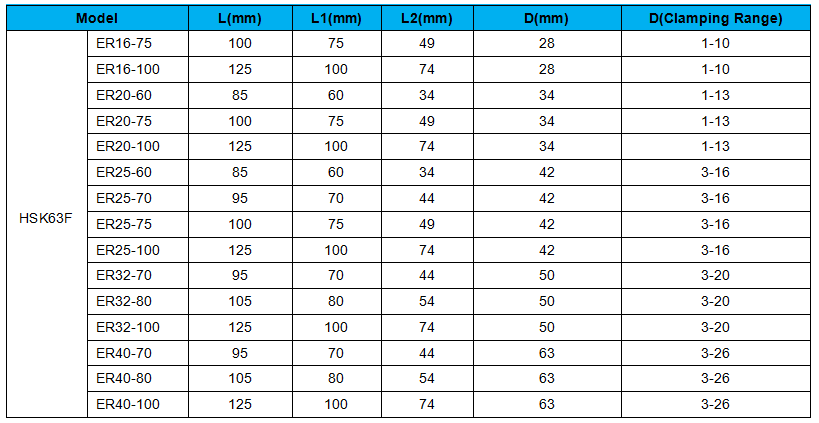

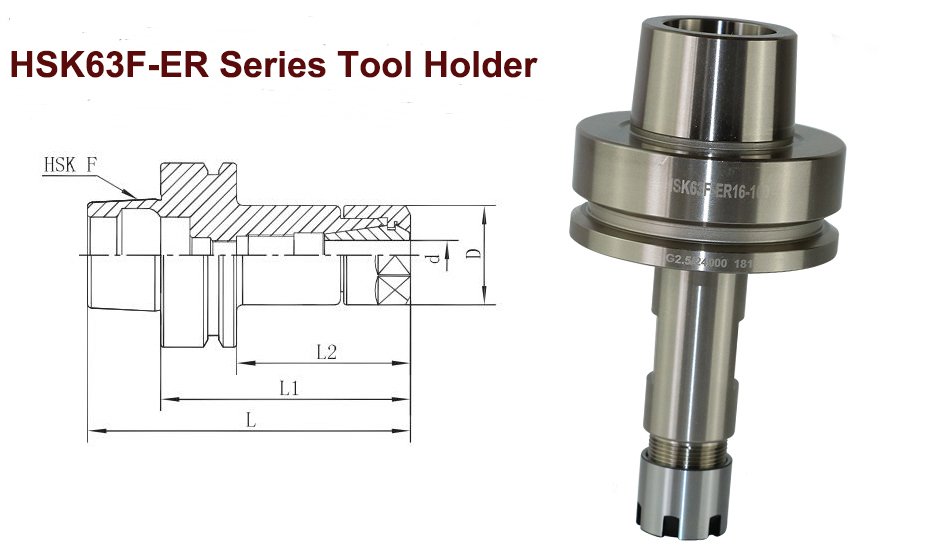

63F image IMAGE (2)

Direction for use

1. Collet and replacment of cutting tools, screw nut and body must be clean,and add grease,otherwise it will damage the thread.

2.The device must be placed when the collet nut,and then into the tool,then the lock body.

3.The placement tool collet hole,clamping collet must exceed effective length,to avoid improper locking damage.

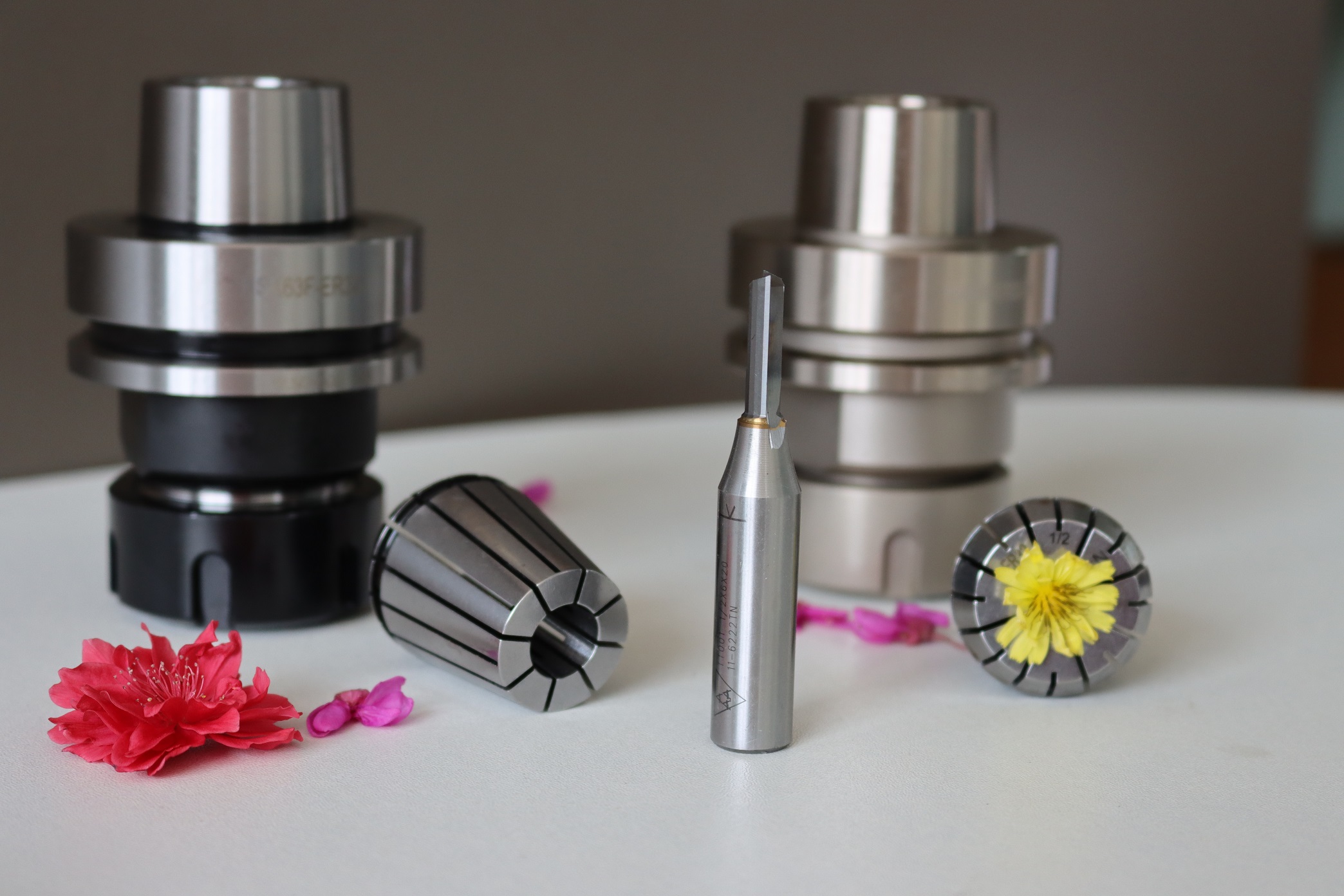

HSK63F-ER32-70 (1)

HSK63F-ER32-70 (7)

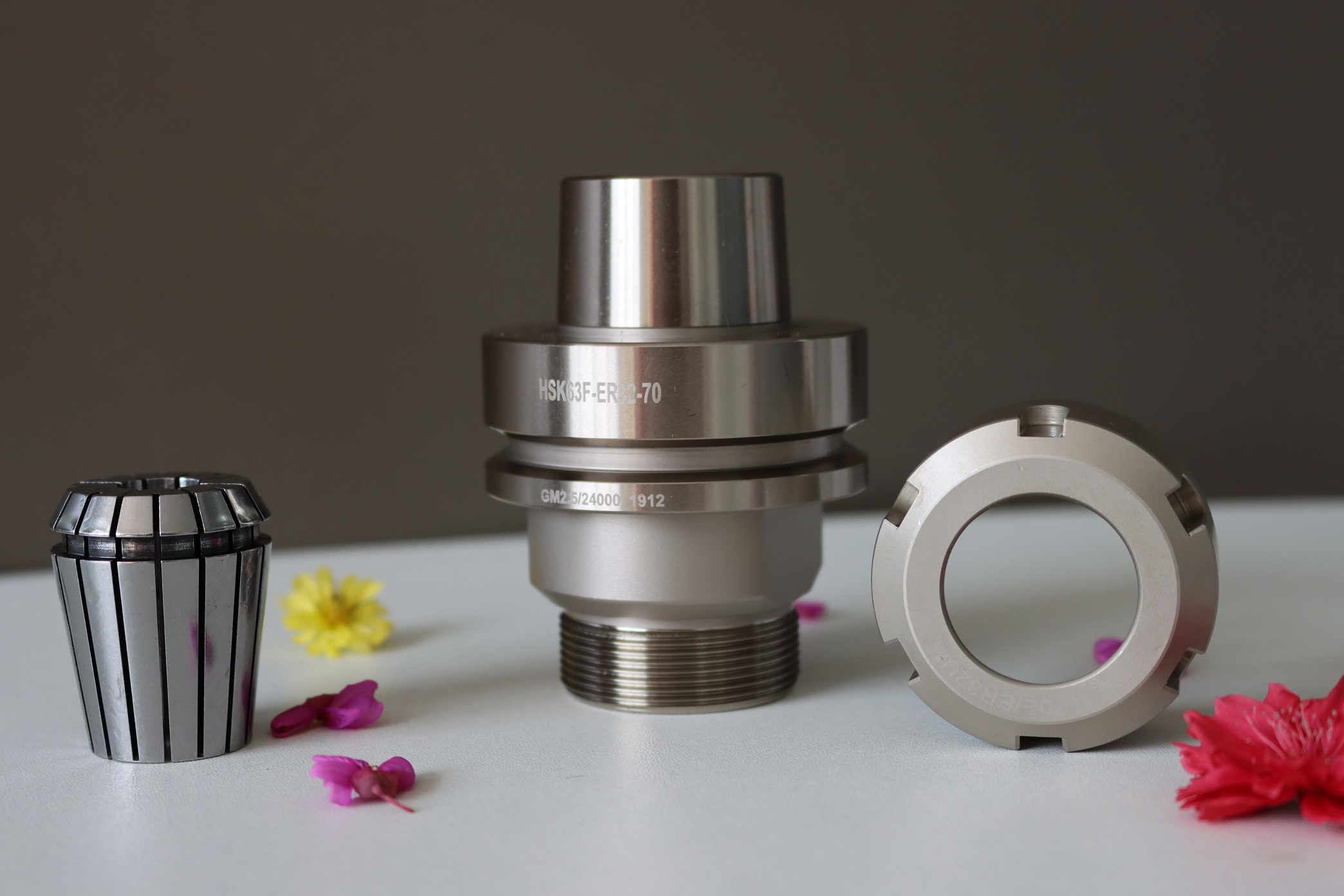

HSK63F-ER32-70 Coated (1)
