3 year agoIso30 Er32 Anti-Rust Collet Chuck Iso30-Er32-150
We are Pingyuan Best Machine Tools., Co., Ltd., the processional cnc equipment producer from china for the reason that employer founded in 2014. our product lines has protected greater than 100 series, in particular encompass: cnc system device holders, collet chucks, collet gadgets, tool holder claw clamps, tool holder locking gadgets, system vise and spanners, dust chip extraction nut, device holder pull stud and nuts, tool sensors, atc gadget library, uninteresting head series and so forth.we moreover famous customers' customized cnc router factors and applications in line with your drawing and training.
Customized long shank 100mm stainless steel ISO30 ER32 Series
Brand Name |
BESTMYT |
Model Number |
Iso30 Er32 Anti-Rust Collet Chuck Iso30-Er32-150 |
Rotate speed |
30000rpm,for ATC 9/12KW spindle |
Color |
Silver white with nickel film coating anti-rust design |
Size |
ISO30-ER32-150 |
Material |
20/40 CrMnTi, black-finished and precisely grinned and coated |
Max run out |
<0.005mm |
Surface Roughness |
Ra <0.005mm |
Shank body standard |
DIN6499B |
Hardness |
HRC56+-2 |
Accuracy |
≤0.002mm |
Roughness |
<Ra0.4 |
Carbonizing depth |
>0.8mm |
Balance |
G2.5 30000RPM |
Weight |
1kg |
Warranty |
3 years |
Function |
Great processing and fine making. Suitable for drill iron bed, grinder, lathe,process,etc |
Applicable Industries |
Building Material Shops, Manufacturing Plant, Machinery Repair Shops,Retail, Construction works ,Advertising Company etc. |

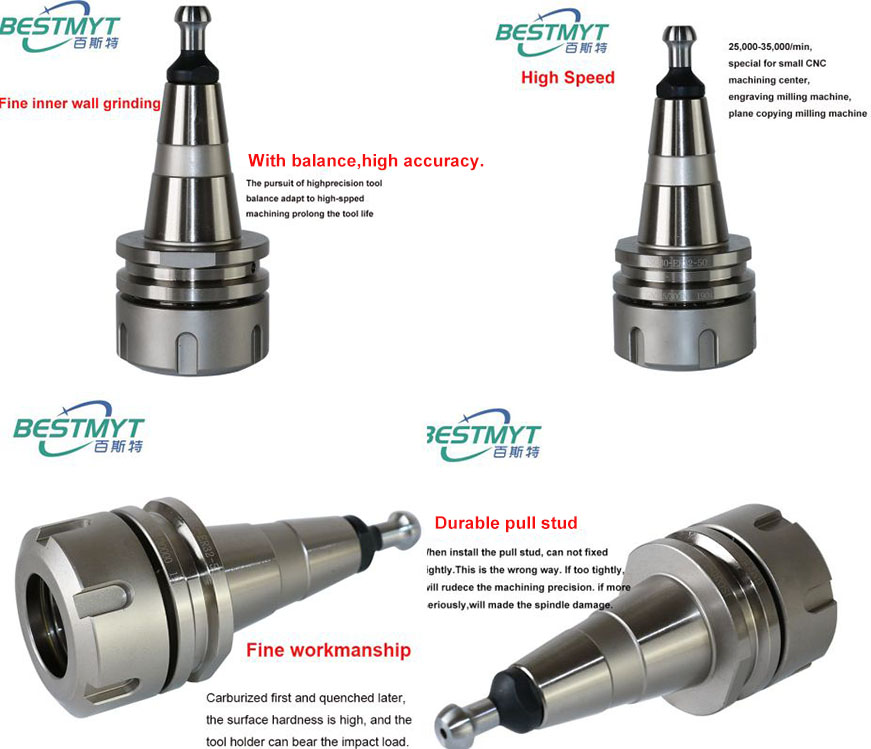

Product Features
1. CNC tool holder ATC spindle holder with ER32UM nut and HSD ISO30 pullstud
2. Updated type whole bright high performance wood work tool holders ISO30 ER32 collet chucks
3. Beautiful look high hardness material 20CrMnti cnc tool holders ISO30 tool holder
4. Dynamically balanced to 30,000RPM at G2.5 by Haimer balancing machine at all location for consistent balance
5. This design allows the left side and right side of the holder to achieve 50-50 perfect weight distribution in its upright position.
6. Symmetrical design in evenly weight distribution will minimize centrifugal force in high speed spinning and thus maximize the holder's ability to hold the cutting tool concentric to spindle rotation
Similar Video Recommendation
You May Also Like
If you are interested in the product, contact Bossgoovideo.com for more information
- *To:
- Pingyuan Best Machine Tools Co., Ltd.
- *Message:
-
Submit

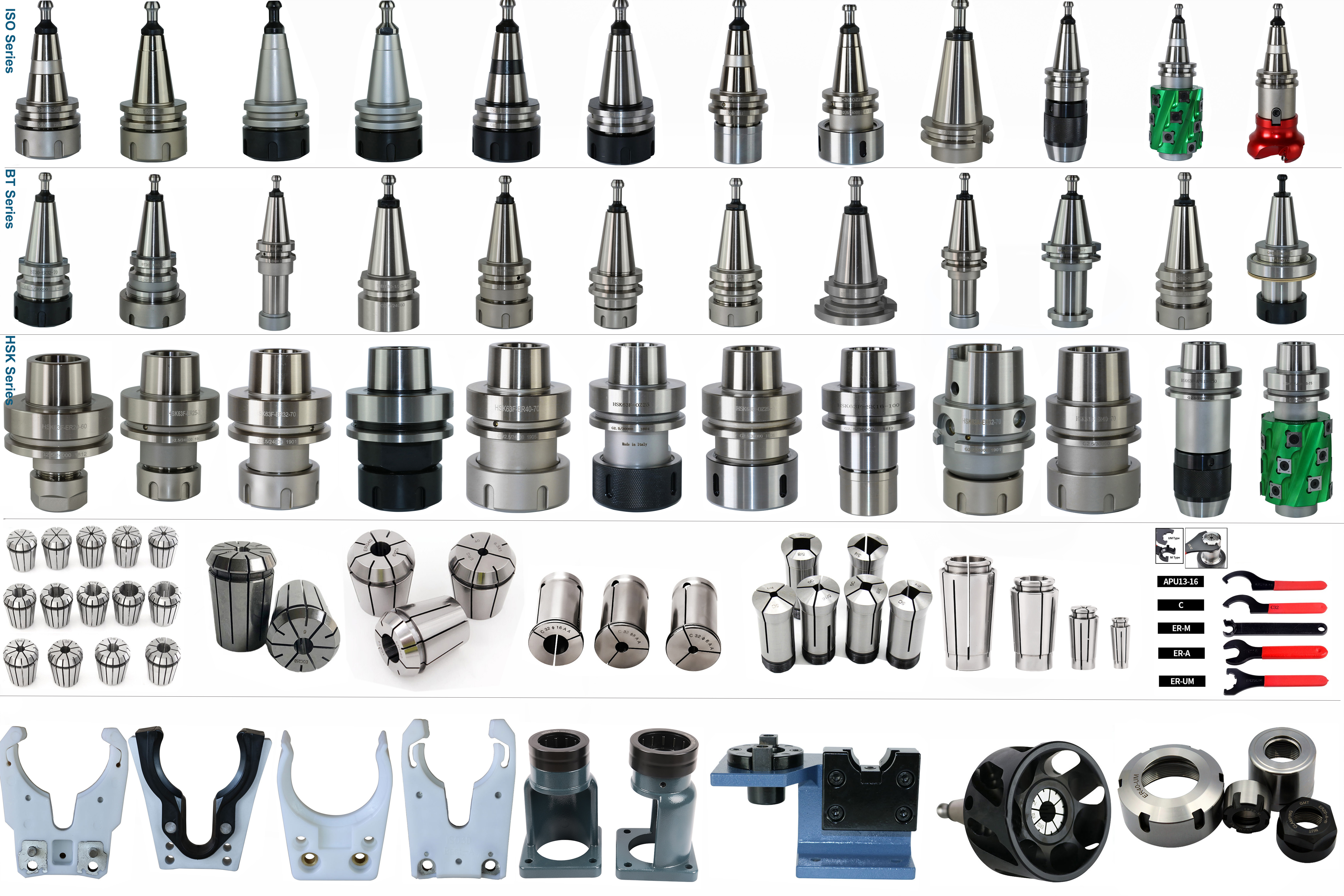

Main Product:
