beam wash strobe all in one led matrix panel
4 year ago

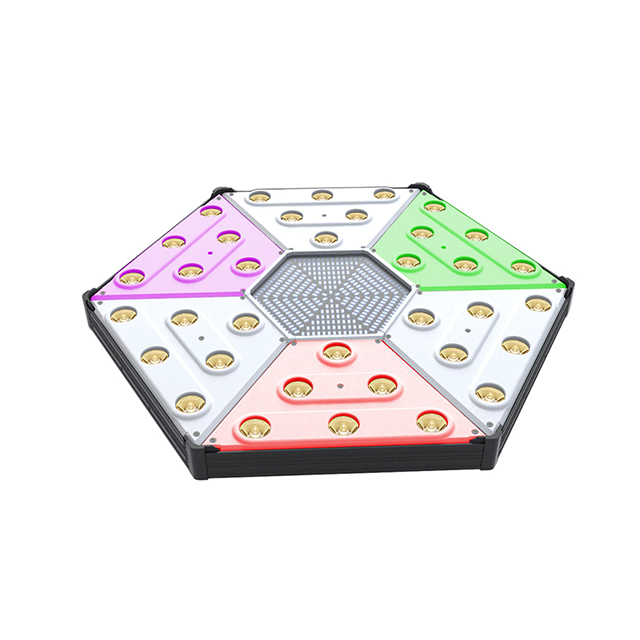

EV M336FC/ST is a creative matrix panel, it is a beam, wash, strobe all in one led dj effect light. 6 panels with RGB back light can be controlled separately, 6*6pcs 3W CREE led with 4.5° beam angle, which can be created pixel mapping effect. in the middle is strobe and blinders, which also can be controlled by 6 sections, it satisfies lighting designer all needs.
Features:

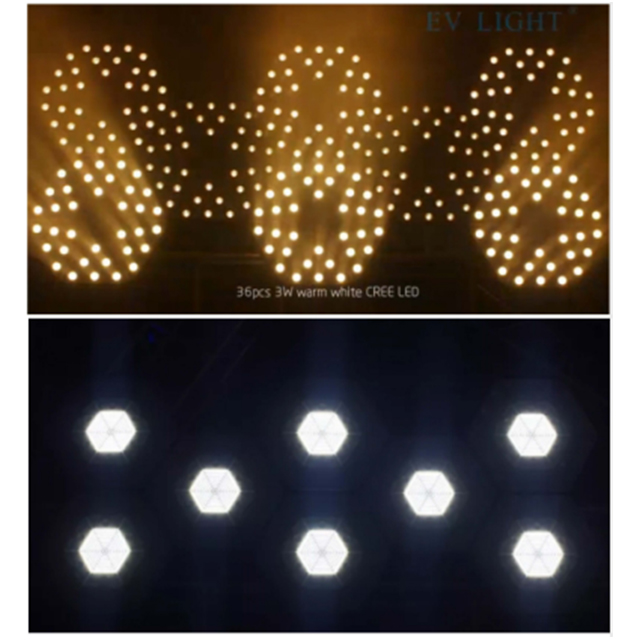

1, beam effect, 36pcs*3W CREE LED with 4.5° lens angle, pixel mapping beam.
2, wash effect, 168pcs*0.5W RGB led as back light, 6 sections controllable.
3, strobe effect, 384pcs*0.5W 5800-6400K LED create strobe blinder effect, running in 6 sections.
4, 5 dmx modes with 4/7/19/49/60 channels

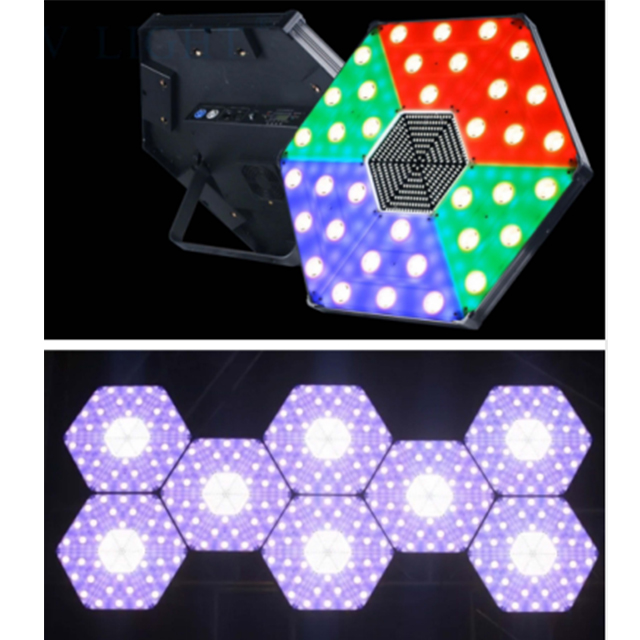

5, special splice design, can be spliced into different designs.
6, fan cooling, make sure the fixture can be working in long hours.
|
product name:
|
matrix panel led
|
|
Model No.
|
EV M336FC-ST
|
|
feature
|
pixel effect, wash, beam, strobe 3 in 1
|
|
input voltage
|
AC90-240V 50HZ/60HZ
|
|
consumption
|
380w
|
|
LED
|
36pcs warm white+168pcs rgb+384pcs cool white
|
|
Lens field
|

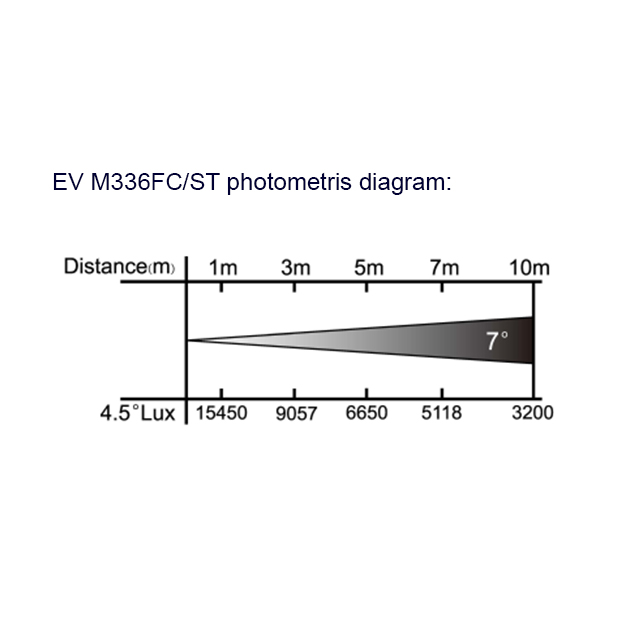

4.5°
|
|
Control mode
|
DMX512
|
|
Channel
|
4/7/19/49/60 CH
|
|
N.W
|
9KG
|
|
IP rate
|
IP20
|
