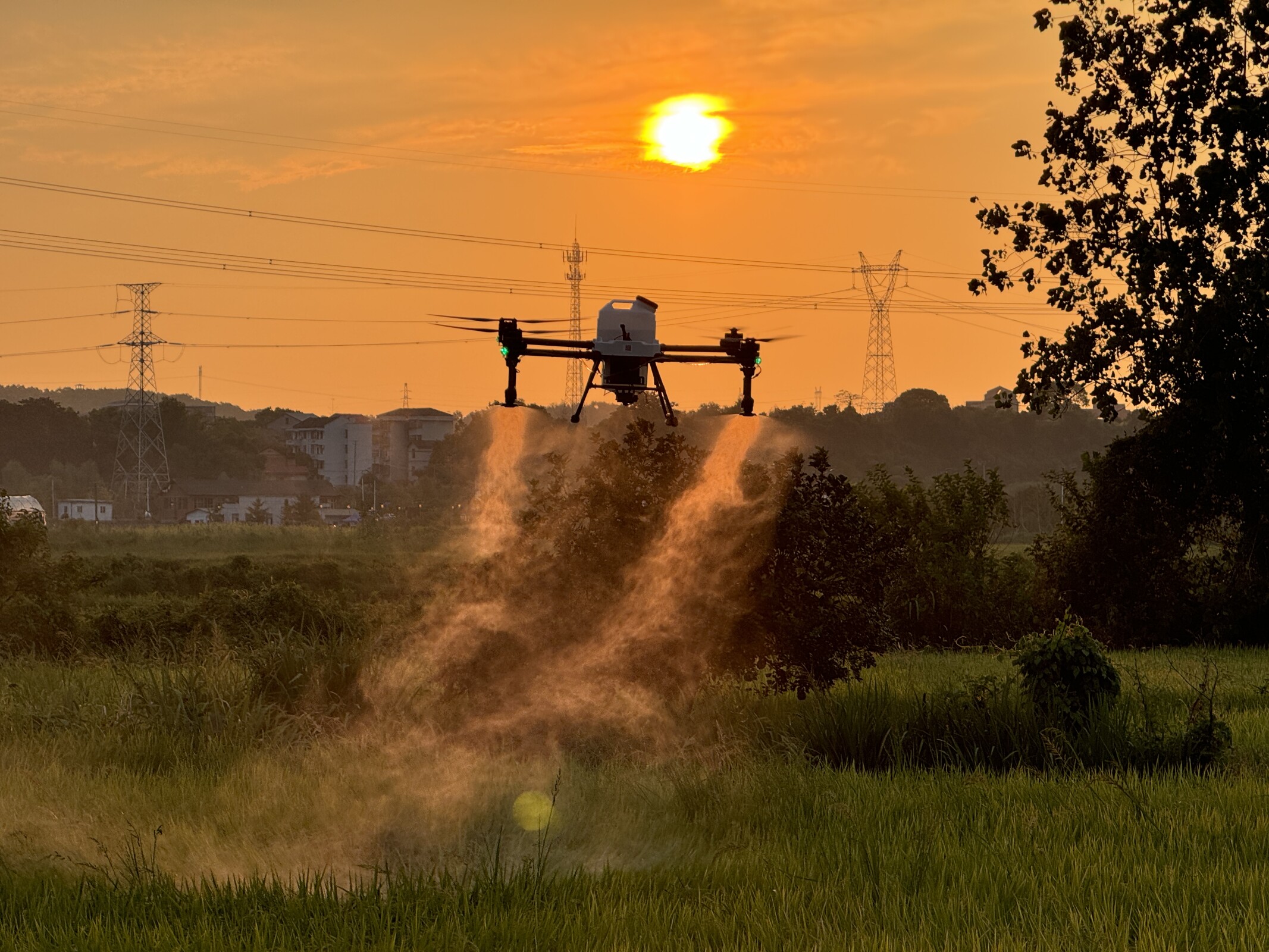

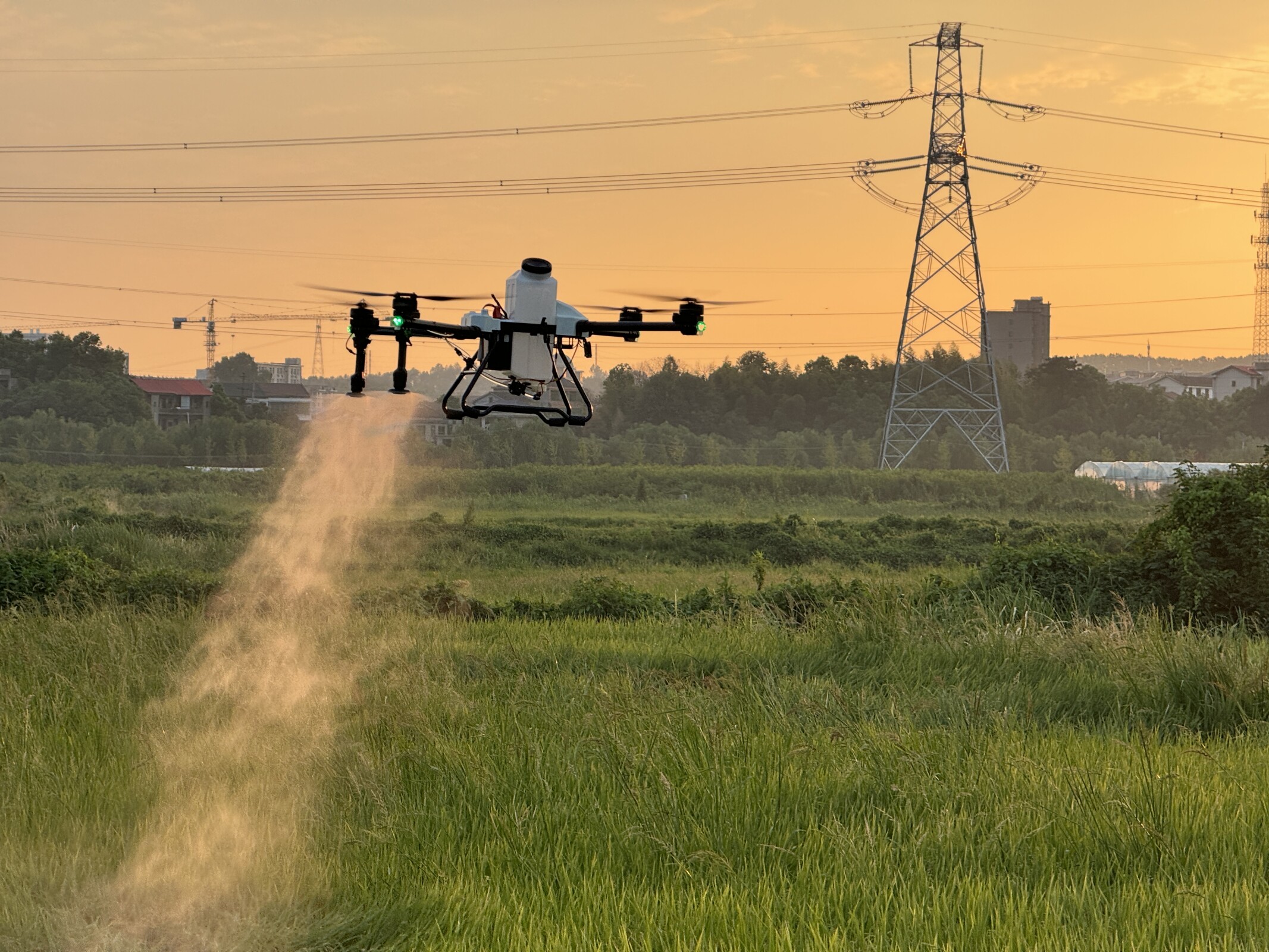

spraying test
5 month ago

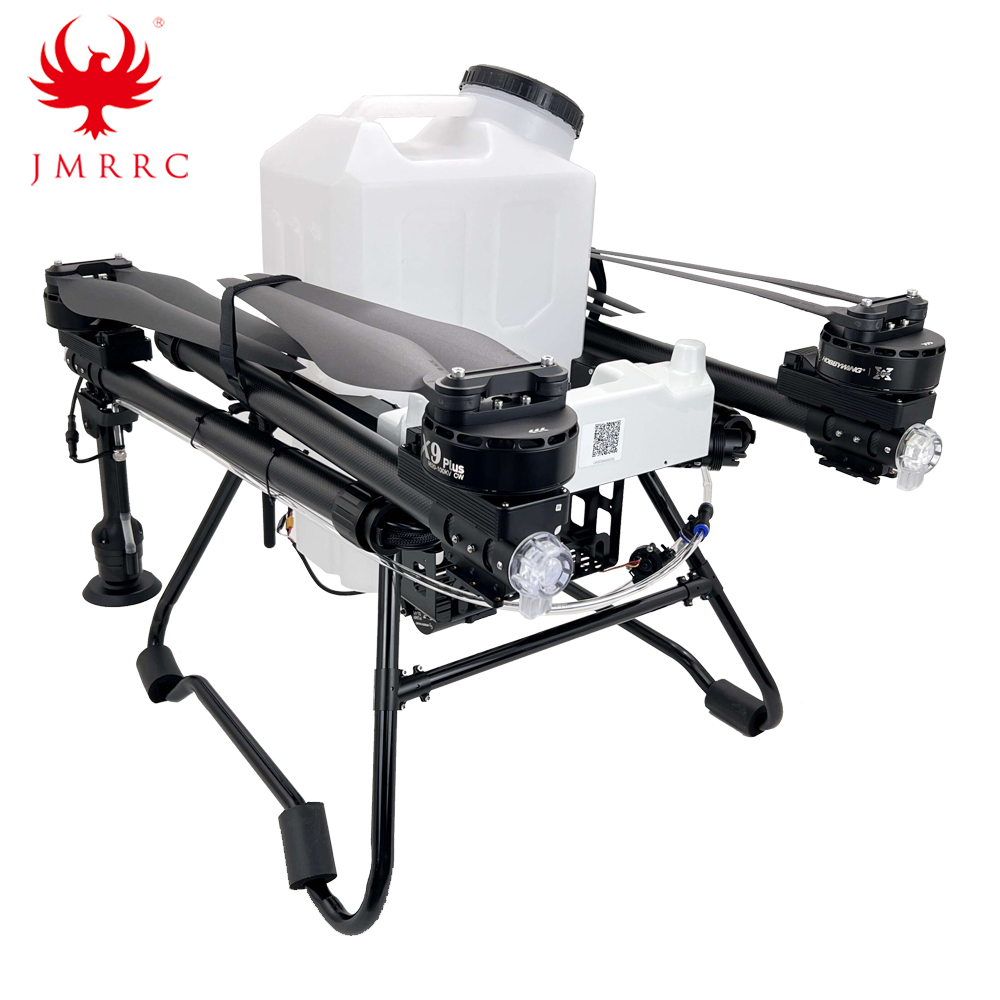

Hobbywing X9 Plus 14S Power System Maximum Load 15kg for DIY 20L/25L Multirotor Agricultural Spraying Drone Propeller UAV !
Max. Thrust: 27kg/Axis (53.6V, Sea Level)
Recommended Takeoff Weight:11-13kg/Axis (53.6V, Sea Level)
Recommended LiPo Battery:14S(LiPo)
Operating Temperature:-20-55℃
Combo Weight: 1774g
Waterproof Rating: IPX7
KV Rating : 100KV
Stator Size : 96X20mm
Bearing:Bearings imported from Japan
Recommended LiPo Battery:6-14S LiPo
PWM Input Signal Level:3.3V/5V(Compatible)
Throttle Signal Frequency:50-500Hz
Operating Pulse Width:1050-1950us(Fixed or cannot be Programmed)
Max. Input Voltage:60.9V
Max. Input Current (Short Duration):120A(w/ Good Heat Dissipation)
BEC:No
Diameter×Pitch:36190
Recommended Application:Recommended Application: Equipped with 36 inch propeller blade, the single axle load is recommended to be 10-13kg, the power system is equipped with 4 axles of 20-22kg, 6 axles of 20-30kg.
