flange ground screw

Good quality Helix Ground Screw for solar mounting system .We exported to markets Ground Screw with dimension as below:length is 3000 mm diameter is 114 mm,thickness is 3.75 mm.can burden more than 3 tons.mainly for solar mounting ,temporary building,container house &.

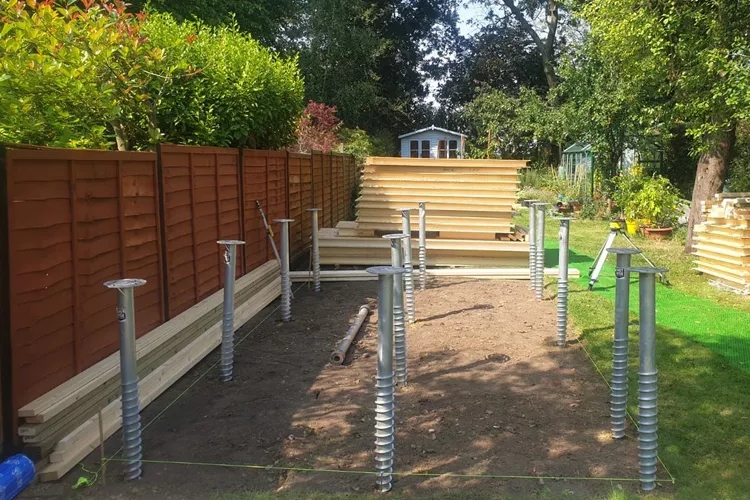

Flange Ground Screw mainly used for photovoltaic solar energy mounting,garden fence,agricultural fence,grape garden,lighting pole,container house, temporary building. it is easy to install ,adjust height easily.with cheaper cost,save time.

Ground Screw Anchor foundation used in timber construction, civil and mining projects, mailbox, lighting pole, advertising board , for temporary or permanent use .

Advantages of Galvanized Ground Screw are as below:

• No excavating, digging, or concrete
• Installs within minutes
• Instantly loadable with no waiting time
• Stable, durable, storm proof, water proof
• Environmentally friendly, ecological, and sustainable
• No damage to surrounding landscape
• Fast and inexpensive to dismantle and relocate
• Can be installed into sealed surfaces
• Not dependent on weather conditions

Some size of Ground Screws are like the below :

U 66*650

U 66*550-1*M8

U 66*730-71 mm

U 66*730-91 mm

U 66*865-91 mm

U 66*865-111 mm

76*3*1000*200*8

76*3*1200*200*8

76*3*1500*200*8

76*3*1800*200*8

76*3*2000*200*8

76*3*2500*200*8

89*3.75*1200*200*8

89*3.75*1800*200*8

89*3.75*2000*200*8

114*4*1500*200*8

114*4*1800*200*8

114*4*2000*200*8

114*4*3000*200*8
