Product details

Product Description

DESCRIPTION of CIP Tank Cleaning Ball 360" Spray Pattern Stainless Steel 304

* Connection: 1" NPT

* Ball Diameter: 53mm
* Working Pressure: 1-2 bar
* Cleaning Radius:0.5-1.5M
* Fluxation: 12m³/h

Sanitary Tri-clamp tee
Material: Stainless Steel 304
Connector：Tc-Clamp QTY: 1PCS

Size:
3/4" OD:50.5MM ID:19.0MM
1" OD:50.5MM ID:22.5MM
1-1/2" OD:50.5MM ID:35.1MM
2" OD:64MM ID:47.8MM
3" OD:91MM ID:72.7MM
4" OD:119MM ID:97.6MM
6" OD:166MM ID:145MM

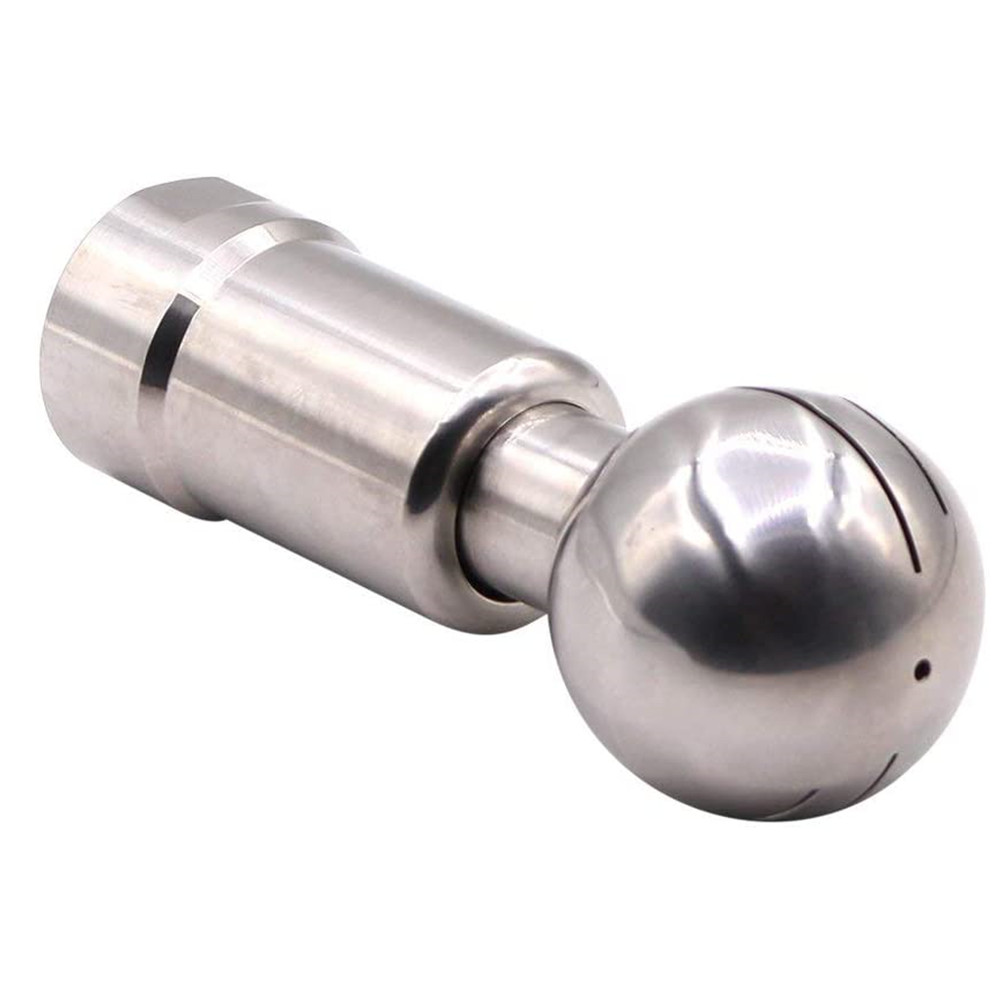

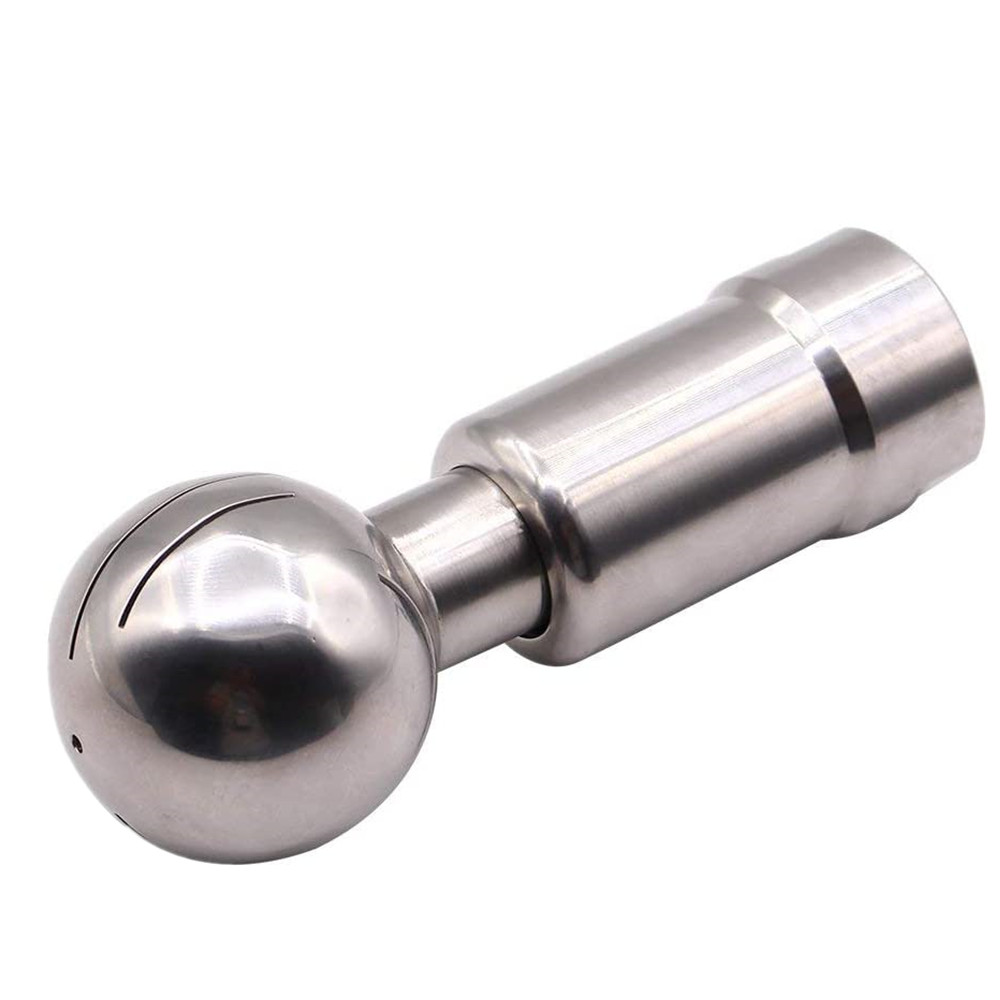

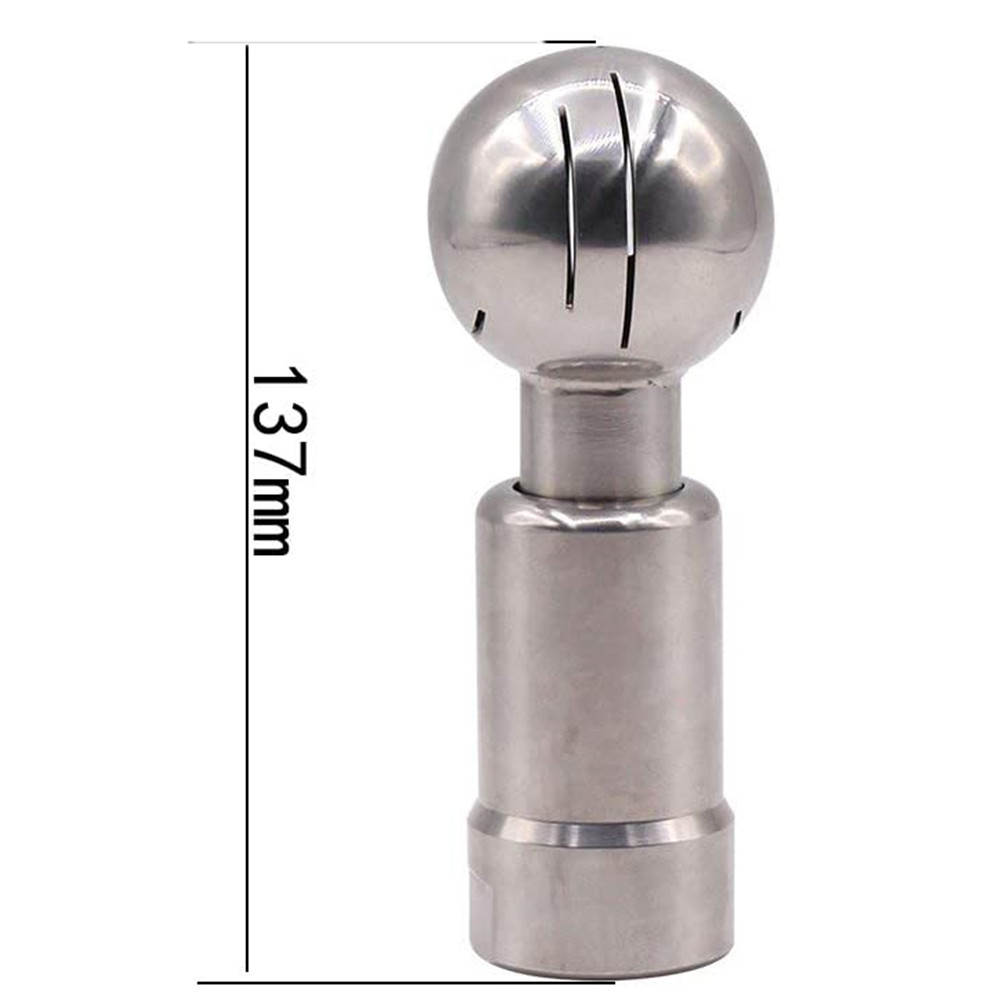

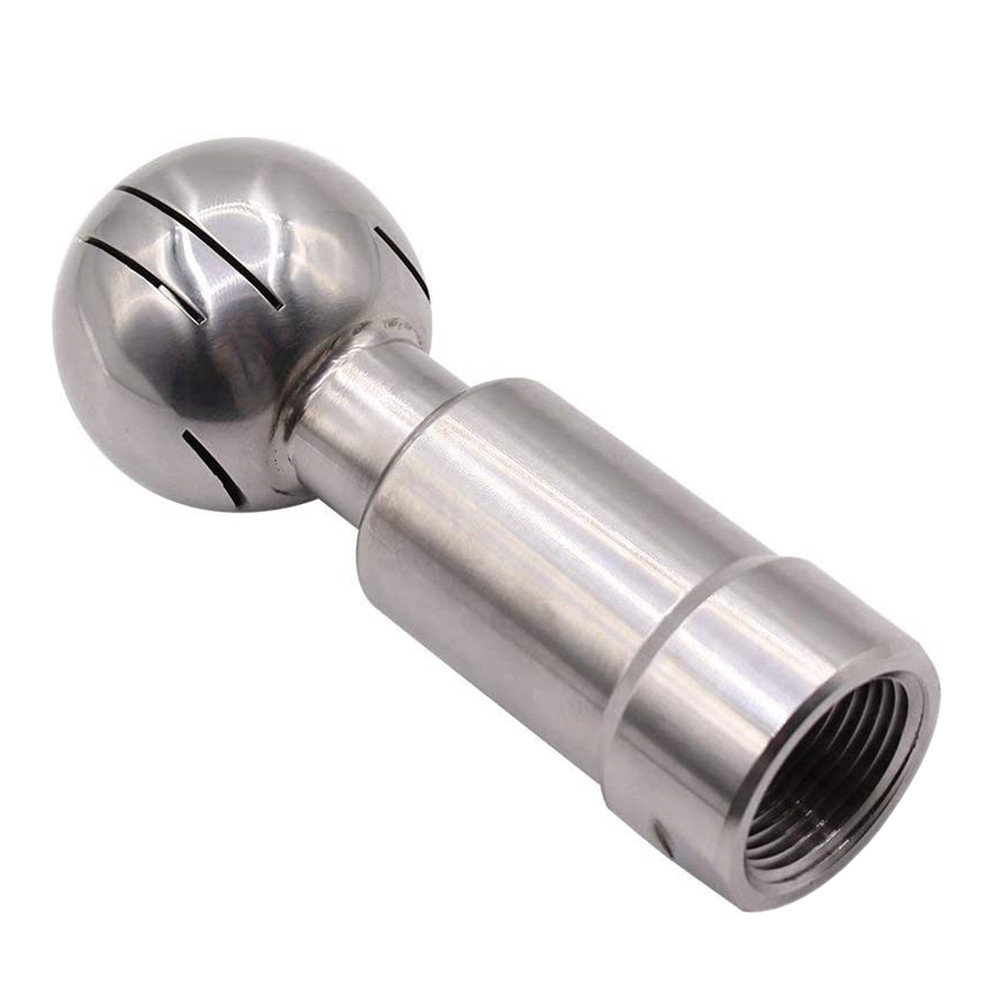

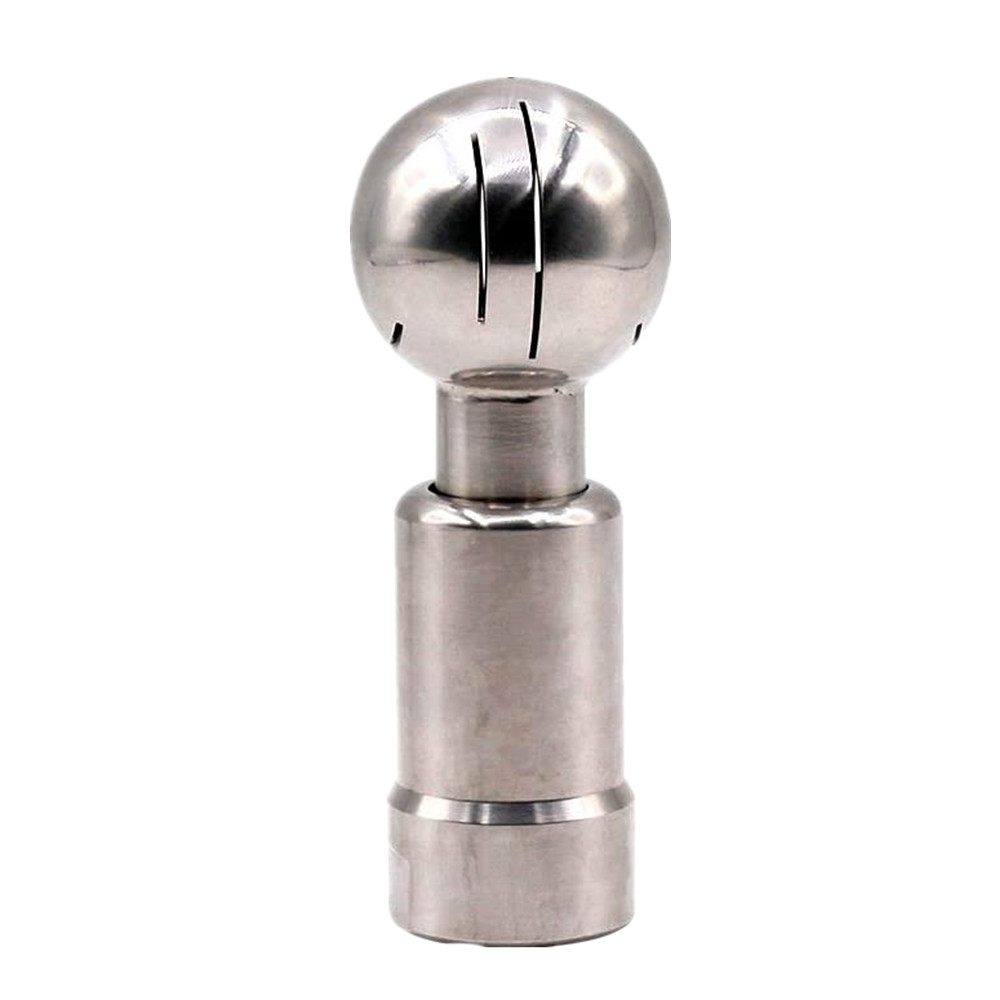

1"(1inch NPT Threaded) FLOW SOLUTIONS Rotary Spray Ball NPT Type CIP Tank Cleaning Ball 360° Spray Pattern, Stainless Steel 304 with 1 pcs Silicone Gasket

Description:

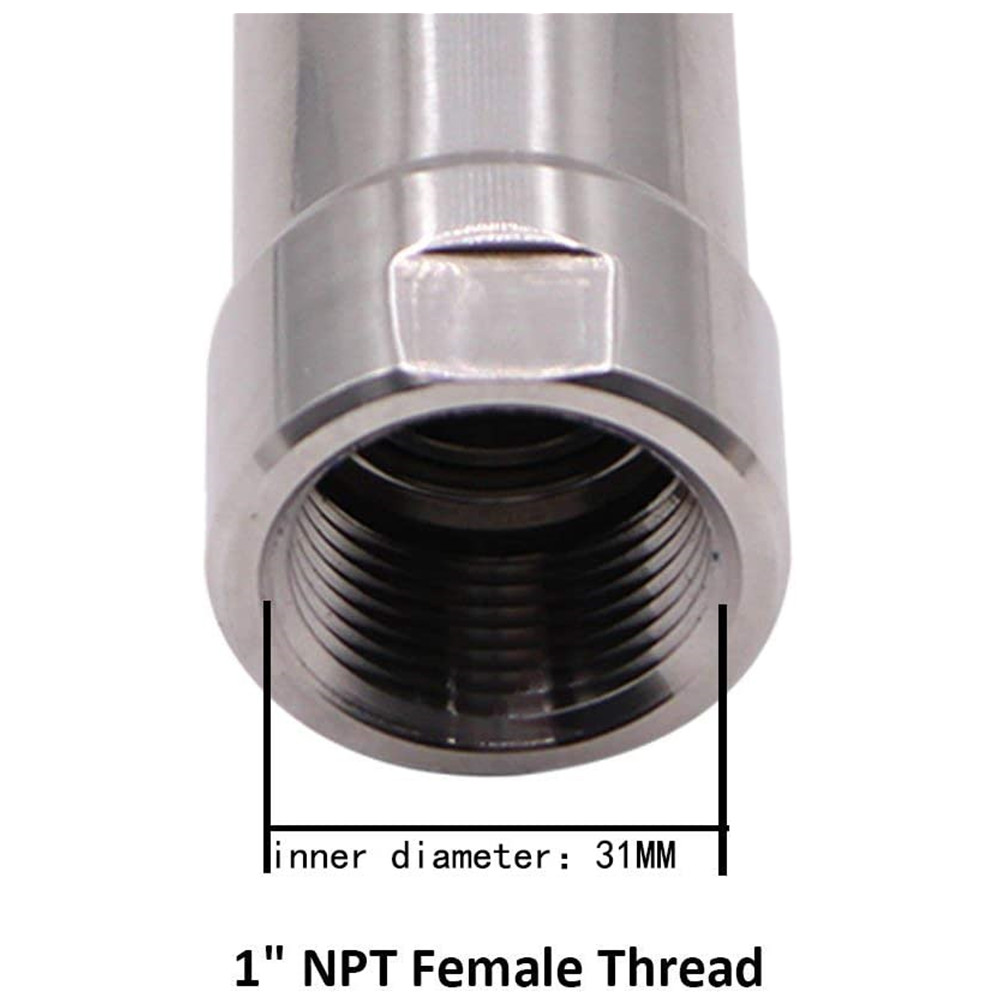

* Connection: 1" NPT

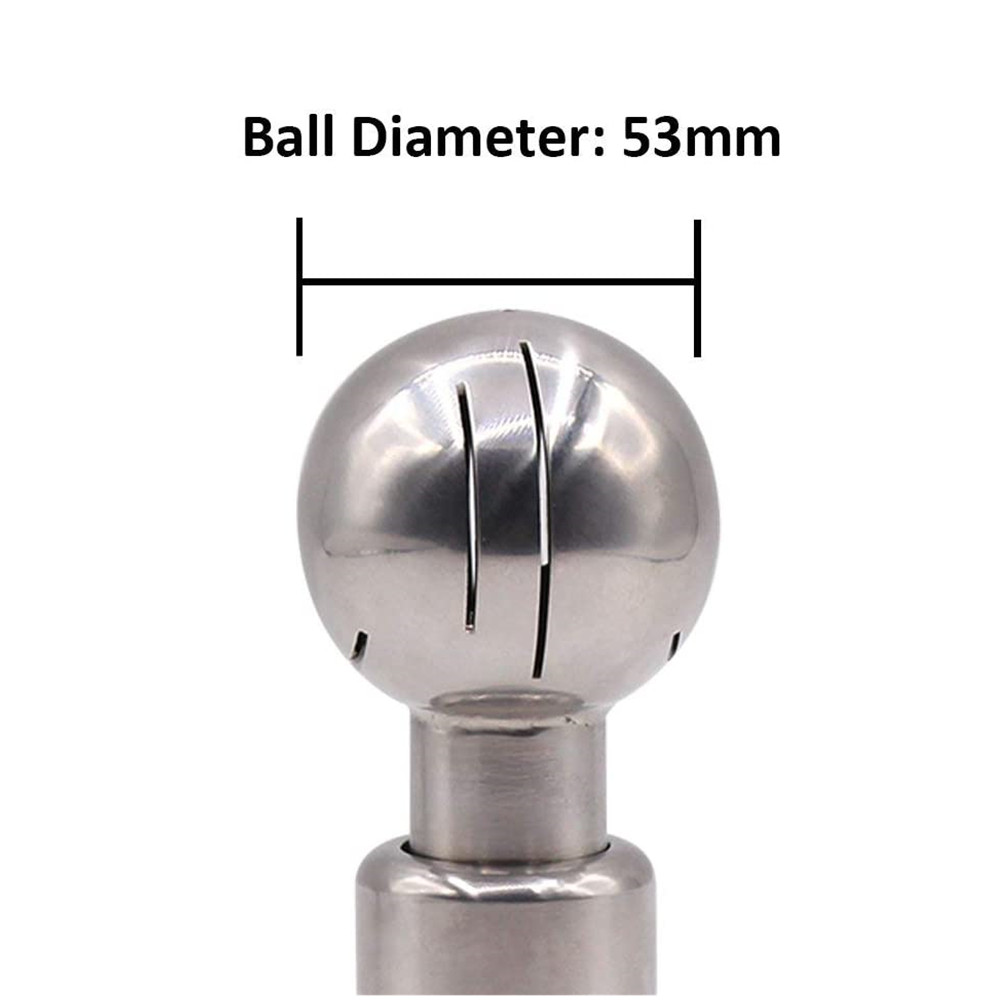

* Ball Diameter: 53mm
* Working Pressure: 1-2 bar
* Cleaning Radius:0.5-1.5M
* Fluxation: 12m³/h

Feature：
Sanitary Tri-clamp tee
Material: Stainless Steel 304
Connector：Tc-Clamp
QTY: 1PCS
We can provide full range the sanitary valve and fitting, If you need other series or size of them, pls provide me the detail.
Size:
3/4" OD:50.5MM ID:19.0MM
1" OD:50.5MM ID:22.5MM
1-1/2" OD:50.5MM ID:35.1MM
2" OD:64MM ID:47.8MM
3" OD:91MM ID:72.7MM
4" OD:119MM ID:97.6MM
6" OD:166MM ID:145MM

Tube ends of spray ball is slightly larger than noted Tube OD to slip over butt-weld end. Locking pin (included) holds stationary spray ball in place.

Part Numbers & Dimensions

Size(Tube OD) x Ball Size

Spray Pattern

Part Number

Dimensions

1" x 2 1/2"

A - 360 Degrees

SBSA-1X25

1.109

1.031

3.500

2.500

1 1/2" x 2 1/2"

A - 360 Degrees

SBSA-15X25

1.672

1.563

3.500

2.500

1 1/2" x 3 1/2"

A - 360 Degrees

SBSA-15X35

1.672

1.563

4.750

2.500

Sanitary Size	OD of Flange End	ID of Tube	OD of Tube
1/2″	0.992	0.370	0.500
3/4″	0.992	0.620	0.750
1″	1.984	0.870	1.000
1 1/2″	1.984	1.370	1.500
2″	2.516	1.870	2.000
2 1/2″	3.047	2.370	2.500
3″	3.579	2.870	3.000
4″	4.682	3.834	4.000
6″	6.562	5.782	6.000
8″	8.602	7.782	8.000
10″	10.570	9.782	10.000
12″	12.570	11.760	12.000

with more than 20 years of technological in this area .Suote pharmaceutical is your trusted partner !

Details Images

FAQ

Q: Do they come in FMPT or MPT?

A: These spray balls slide over existing tubing and are secured with a pin. Due to this configuration, we are unable to add any kind of alternative connection to them.

Q: Do you have flow rate/pressure curves for this spray ball?

A:We do not have flow rate/pressure curves for our spray balls. The typical gallons per minute for these items is 40GPM. The average pressure is around 25PSI.

Q: Do spray balls come with MTRs?

A: Yes, our spray balls do come with Material Test Reports (MTRs) upon request.

Q: Are these spray balls 3A certified?

A: Our spray balls are not manufactured in accordance with 3A Standards.

Q: Do you offer different clamp x NPT size combinations like 1 1/2" x 2"?
A: Different size combinations are available however these items are not stocked and the typical lead time for these products is
about 1 - 2 weeks. Please call us for special orders and we'll let you know what we can do for timing and pricing. Thanks!
