GY-200P Tumble Dryer

GY-100/200P tumble dryer mainly composed by heat exchanger,rolling drum, driving system,exhaust system,framework and electric control system.Driving system is made of main motor,belt pulley,bead apex and bearing etc. parts.

Working principle: heat energy first created by heat exchanger which on top of the dryer,sucking hot wind into machine body through exhaust blower, then exhausted out of machine to warm up temperature inside the dryer.Main motor start decelerated motion through belt pulley and bead apex, and driving rolling drum for alternating positive and negative cyclical rotation,in order to invert clothes or fabrics inside rolling drum constantly, then through special steam straight spray pipe to eject steam to attain fast tumble and dry result.

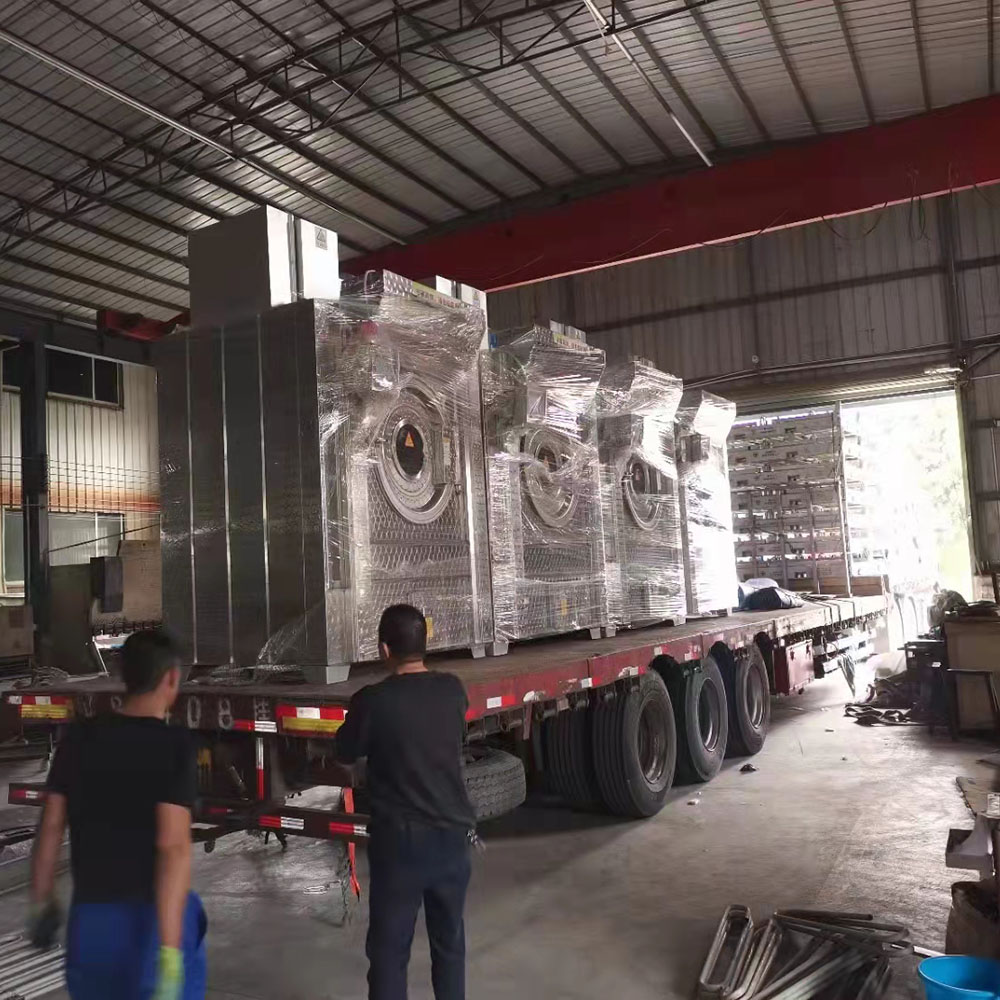

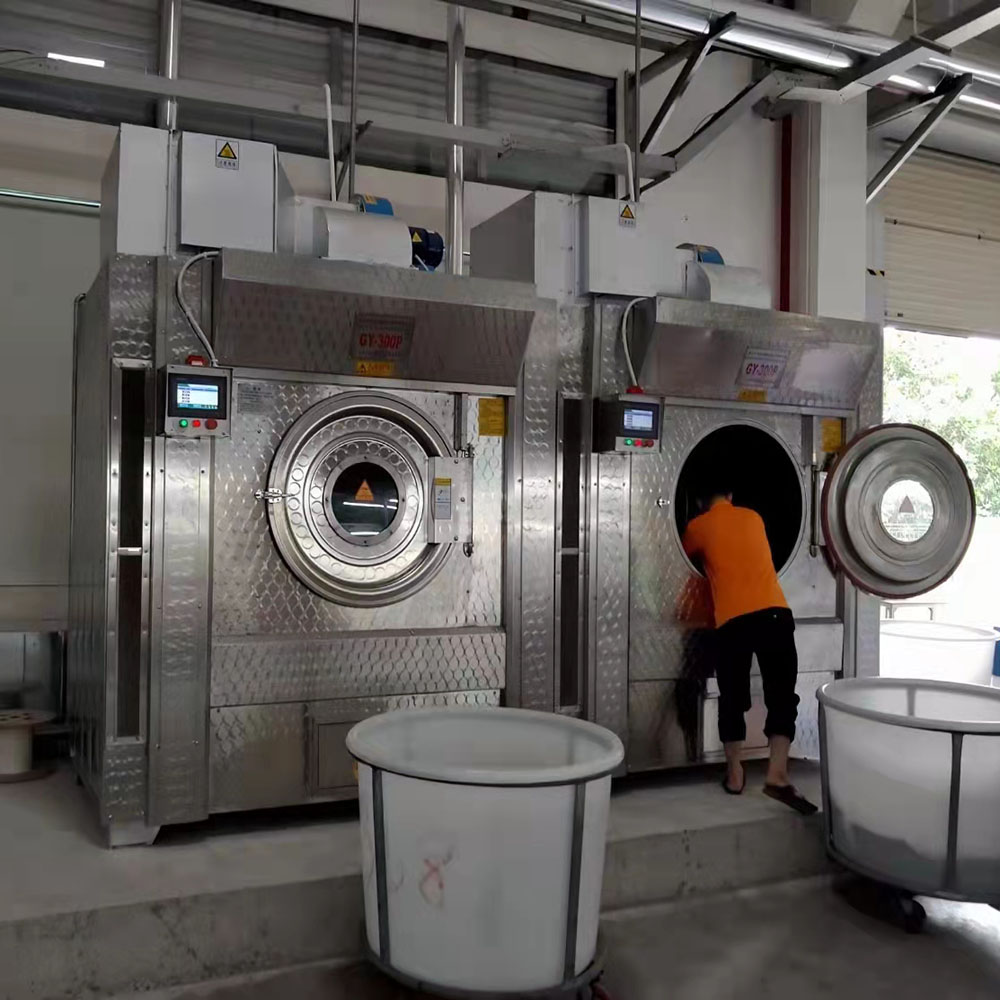

Product images

Configuration/set(200P):

1)Inner drum made of 304 stainless steel

2)Machine weight :1100kg

3)Capacity: 90kg/200lbS

4)Speed: 28r/min

5)Inner plate thickness 2.0mm, side 304 plate thickness 1.0mm,

6)Overall size: 1880x1560x2560mm

7)Drum size: ￠1440X1040mm

8) Motor     Joint venture

9)Host motor power: 2.2KW

10)Fan power :2.2KW

11) Time relay, temperature control meter, solenoid valve  Domestic

12)Taiwan temperature probe

13) Steam heating system

14)Air filtration device

15)Door safety device;

16)Door allocated with glass inspection mirror

17)End automatic alarm device

18)Standard control electric cabinet, touch screen computer control

19)High efficiency and energy saving heat exchanger

20)Internal and external circulation energy-saving hot air;

22) The heat energy of the heat exchanger is fully utilized;

23)Save more than 30-35% steam, drying time significantly shortened more than 10 minutes

24)With steam function, connecting the steam conduit to install electromagnetic, with the time controller (such as 10 minutes to spray 10 minutes of steam).
