X26A 3LAN 6COM
9 month ago
Product Details
CPU: Intel Core i3-1115G4 / i5-1145G7/ i5-1135G7 / i7-1165G7
HDMI: HDMI1.4, Maximum resolution 4096x2304@60Hz
Memory: 2*DDR4 SODIMM, Max up to 64GB
Hard Disk: SSD: 1*NVME 2280 socket, HDD:1*SATA.

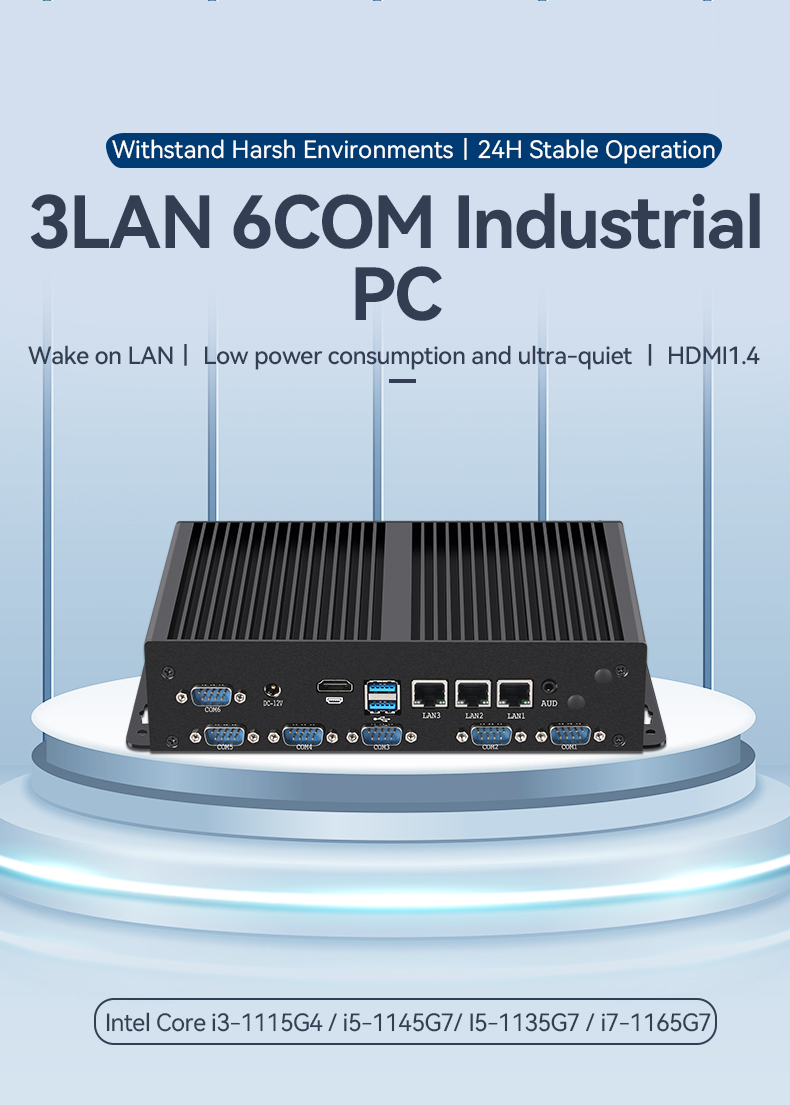

Port: 2*USB3.0, 4*USB2.0; 1*HDMI1.4 4096x2304@60Hz; 1*VGA(Built in VGA pins); Built in 1*8-way GPIO; Built in 1*LVDS; 6*COM RS232 (COM1-2 also supports RS232/422/485); 1*AUD on-board ALC269; 1*Power button; 1*DC, supports12V
LAN: 3*LAN (1*Intel I226-V network card/2*Intel 210 network card), support wake on LAN and PXE boot.
Audio: Adopt Realtek ALC662 audio control chip
Extension: 1*M.2, support Wifi6/Bluetooth/4G/5G module extensions, 1*SIM slot
OS: Windows10/11, LINUX
Power requirement: Power Type:DC-IN5.5*2.5, Power Input Vol:12V, Power Input Ampere:5A, Power Supply:DC 12V 5A
Working environment: Storage Temp:-25℃ to +75℃, Operating Temp:-10℃ to +60℃ Relative Humidity 5%~95% (non-condensing)
This Industrial PC equipped with Intel Core series processors, has higher performance, it can better meet the higher needs of modern industries and can be applied to machine vision, face recognition, intelligent robots, industrial automation and other scenarios.
The Mini Computer has strong storage hardware support capabilities,supporting dual-channel DDR4 SODIMM memory, and supporting up to 64GB, it
also supports two types of hard disks M.2 NVME 2280 and 2.5-inch SATA HDD/SSD, which have both speed and capacity.

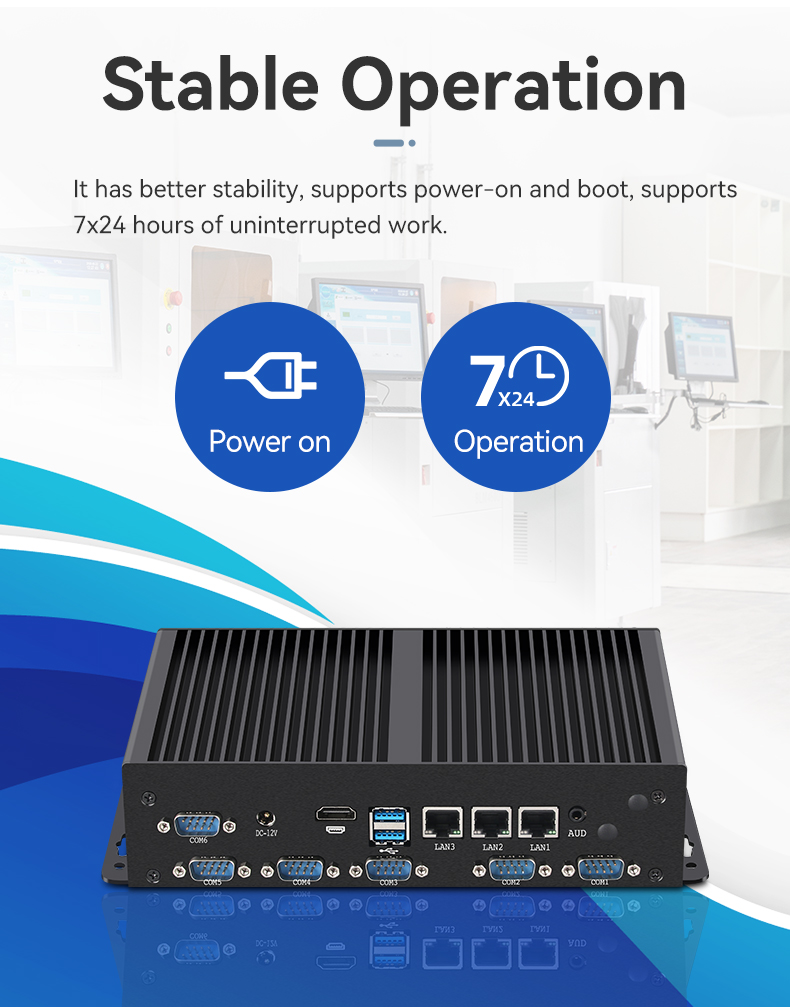

This computer has great stability and supports power-on and 7x24H long time running, which meets the demand of ultra-long standby time for industrial equipment.

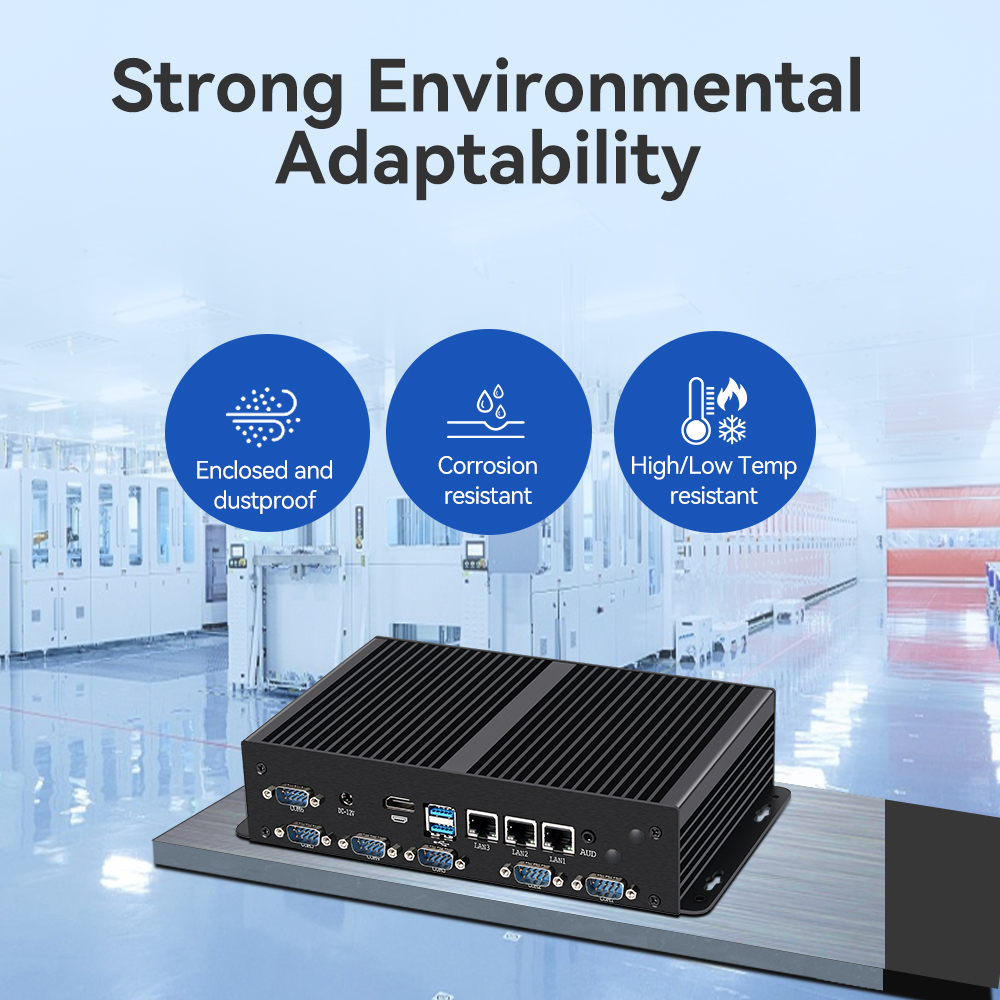

Due to the harsh industrial environment, the industrial control PC has a stronger adaptability to cope with environmental changes such as high temperature and humidity, and has the characteristics of dustproof, corrosion-resistant, high and low temperature resistance.

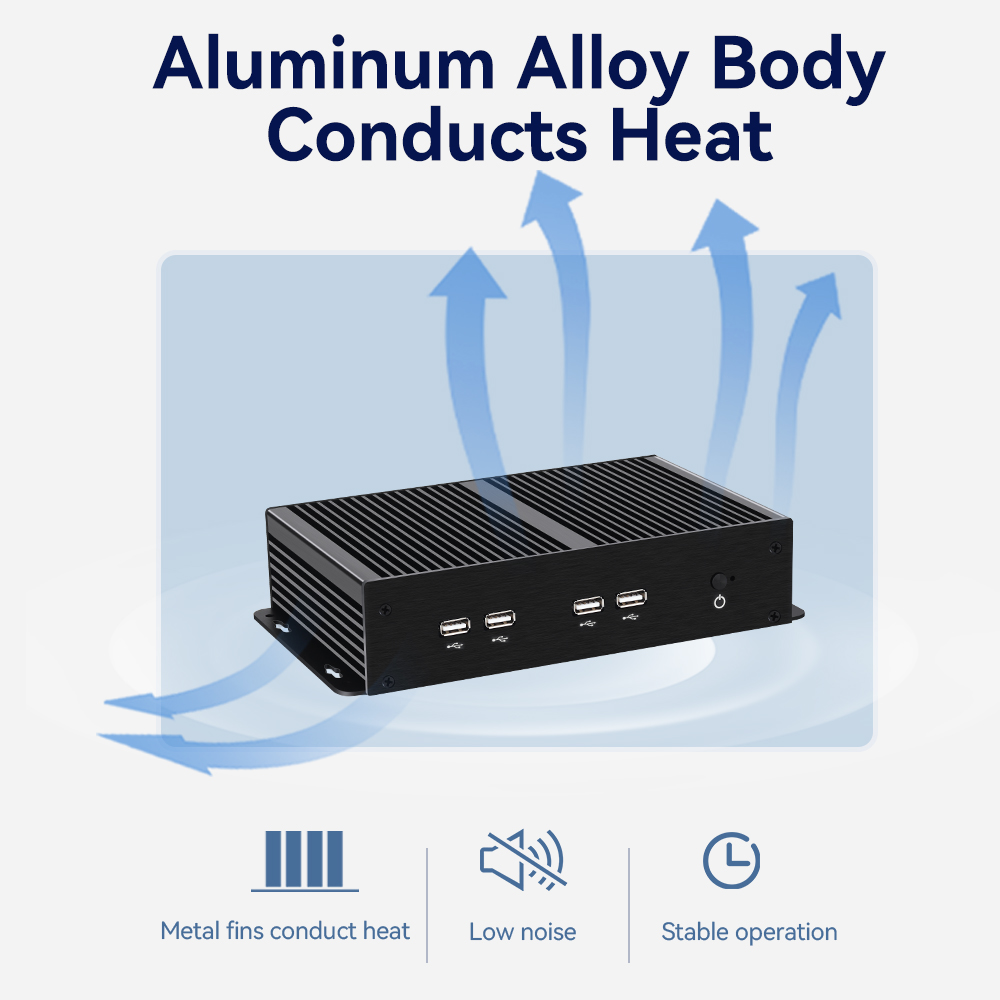

The computer host body adopts a fin-type metal body thermal conduction design, so that the heat can be quickly exported from the inside, which not only has no fan noise, but also can prevent dust and protect internal components.
