Soft seal blind rod gate valve3

7 month ago

16 0 

11 month

Product details

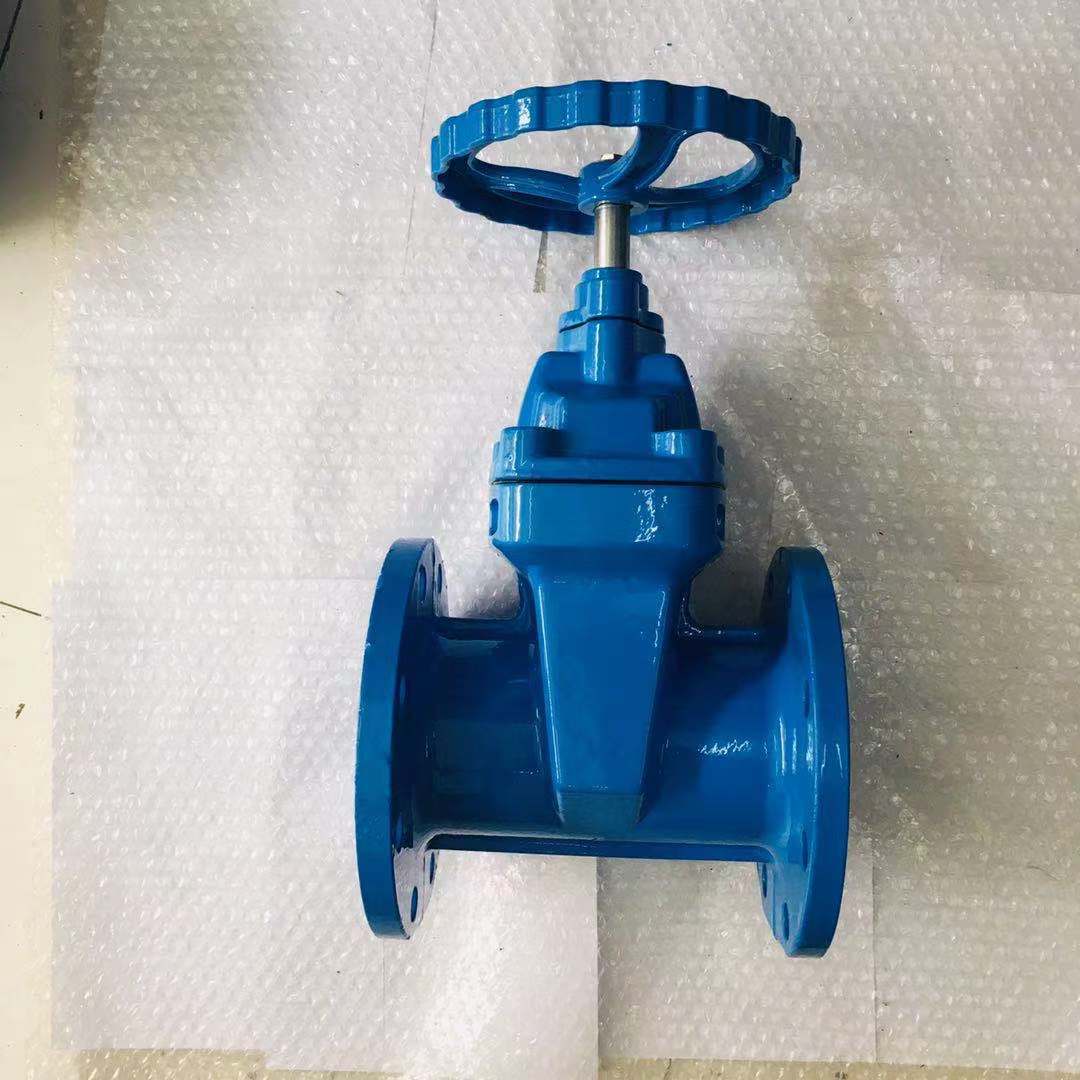

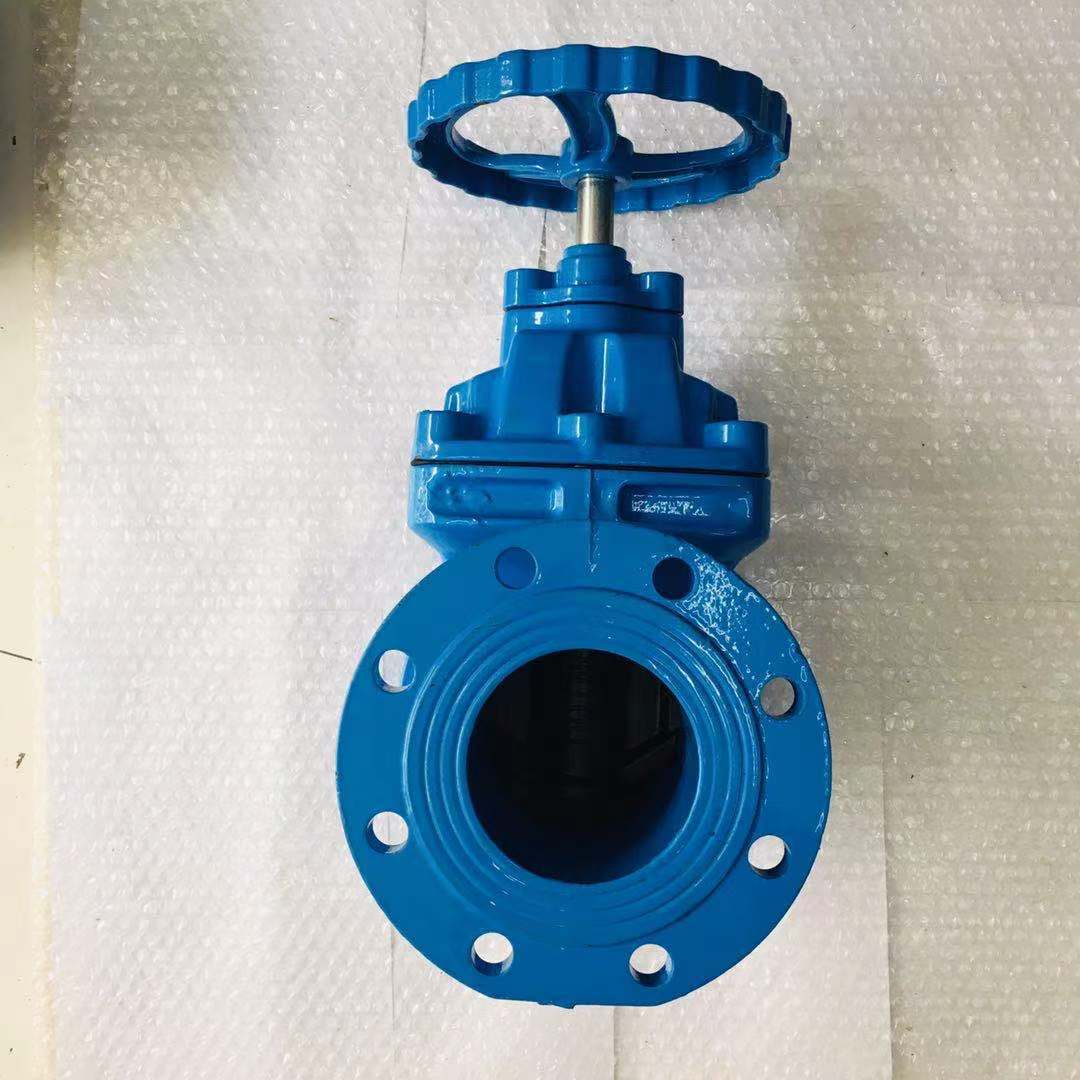

Product model and function: Z45X-16Q Soft seal flange dark rod gate valve Features:

The sealing surface between easy to cause erosion and abrasion, maintenance is more difficult.

The overall size is large, the opening needs a certain space, and the opening and closing time is long. The structure is more complex.

The type of gate valve, according to the sealing surface configuration can be divided into wedge gate valve and parallel gate valve, wedge gate valve can be divided into: single gate type, double gate type and elastic gate type; Parallel gate valves can be divided into single and double gate valves. According to the thread position of the valve stem, it can be divided into two kinds: open stem gate valve and dark stem gate valve.

The installation and maintenance of gate valve should pay attention to the following matters: handwheel, handle and transmission mechanism are not allowed to be used for lifting, and collision is strictly prohibited.

The double gate valve should be installed vertically (i.e. the stem is in a vertical position with the handwheel at the top).

Gate valves with bypass valves should be opened before opening (to balance the pressure difference between the inlet and outlet and reduce the opening force).

The gate valve with transmission mechanism shall be installed according to the instructions of the product. If the valve is used frequently, lubricate it at least once a month.

Commodity attribute

Valve standard: national standard

Valve stem type: valve stem lifting type (dark rod)

Ram type: wedge type ram

Whether the ram is elastic: The ram is elastic

Number of ram: Single ram

Drive mode: Manual

Valve function: discharge water

Mode of action: Manual

Function: water supply and drainage

Lining material: lining glue

Sealing material: rubber

Sealing method: soft sealing

Pressure environment: normal pressure

Temperature environment: normal temperature

Flow direction: two-way

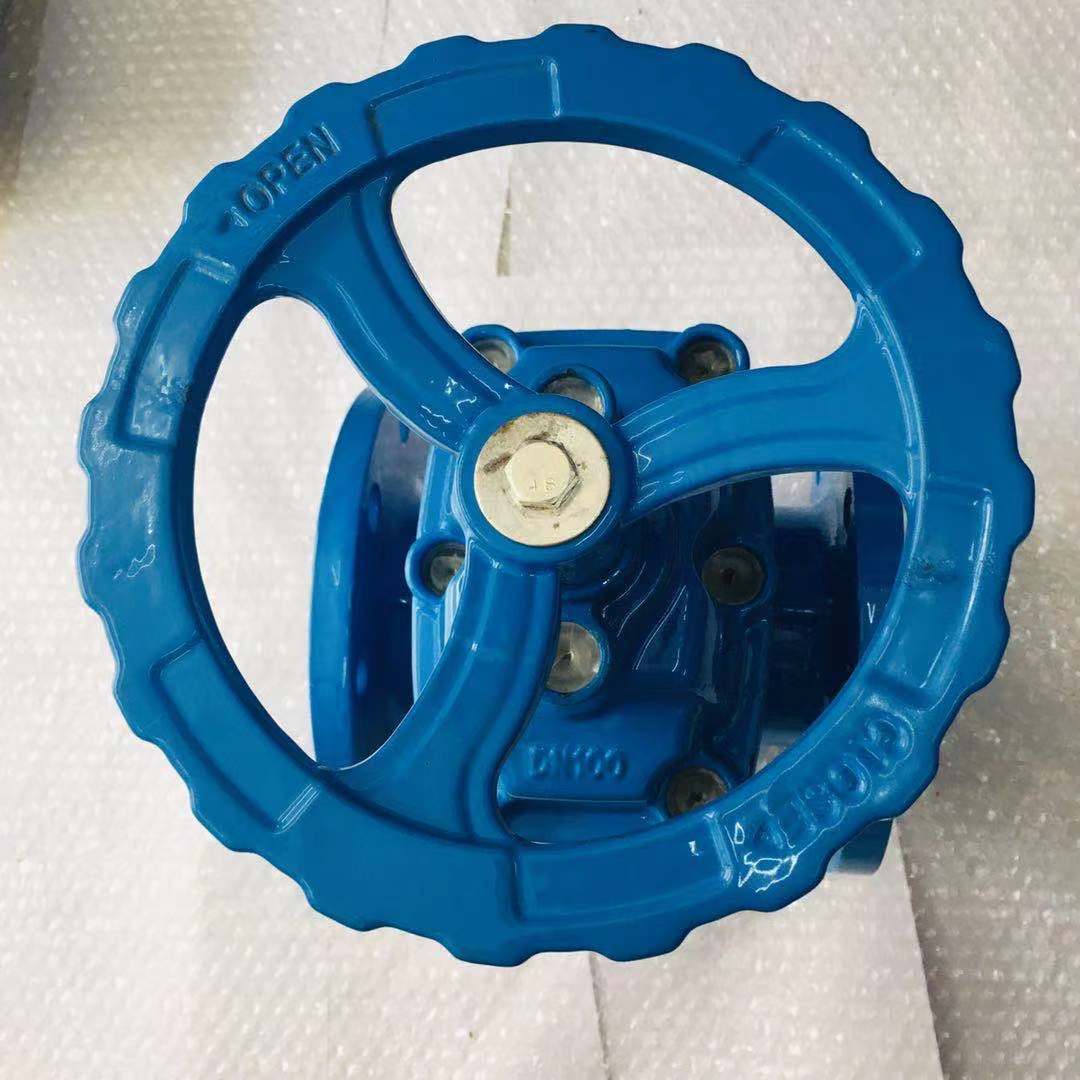

Accessories available: hand wheel

Applicable industries: Environmental protection, chemical industry, coal, electricity, environmental protection water treatment, paper making, petrochemical, metallurgy, heating, water supply and drainage, coal mine, electricity, oil field, construction, industry, various industries, Marine, coal mine, fire, petroleum, other, mining, municipal, water conservancy, machinery

Suitable medium: water

Item number: Z45X-16Q
