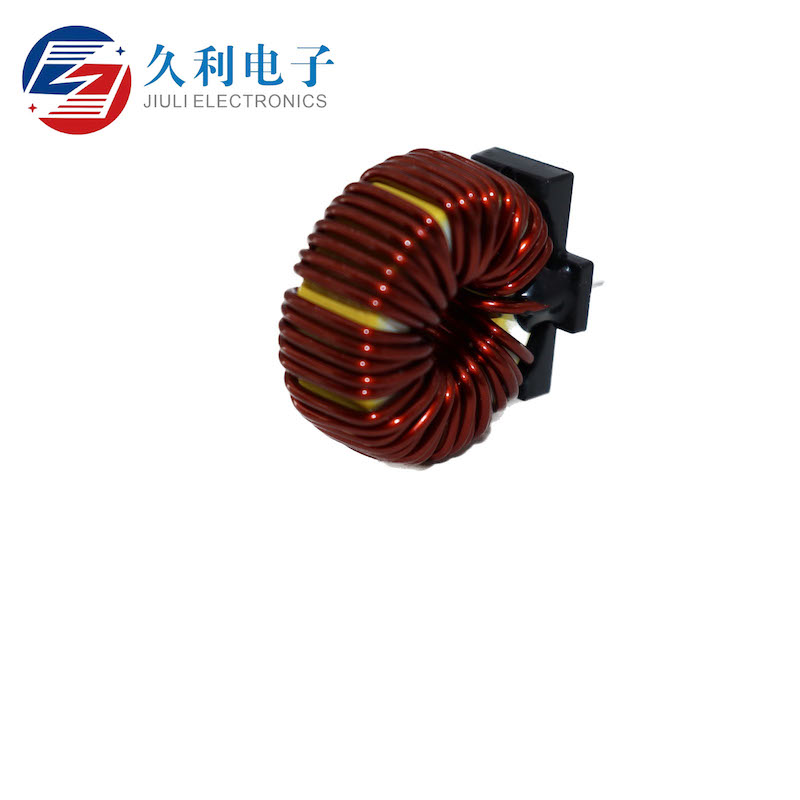

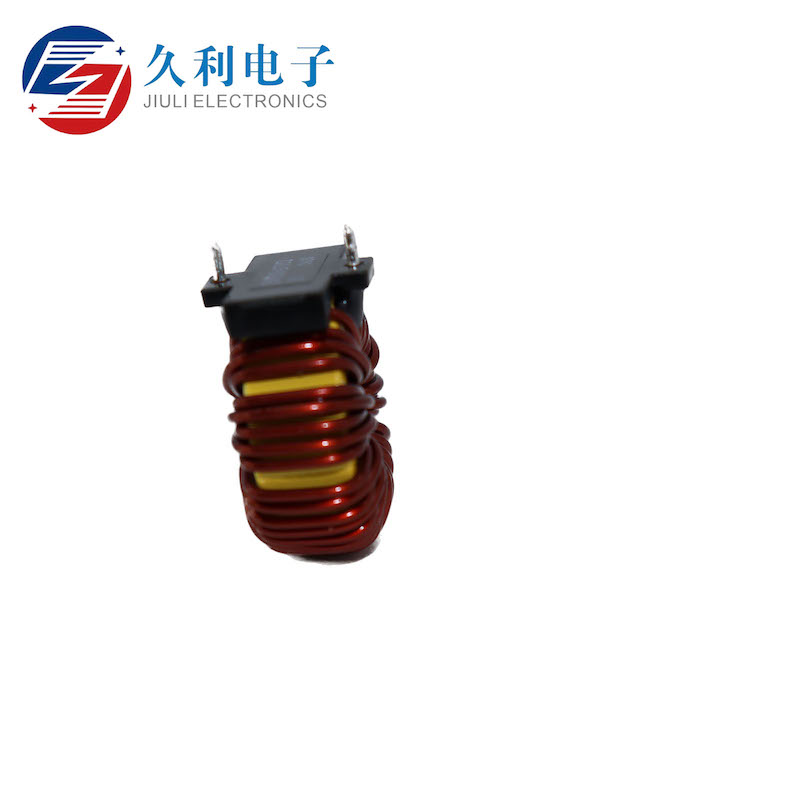

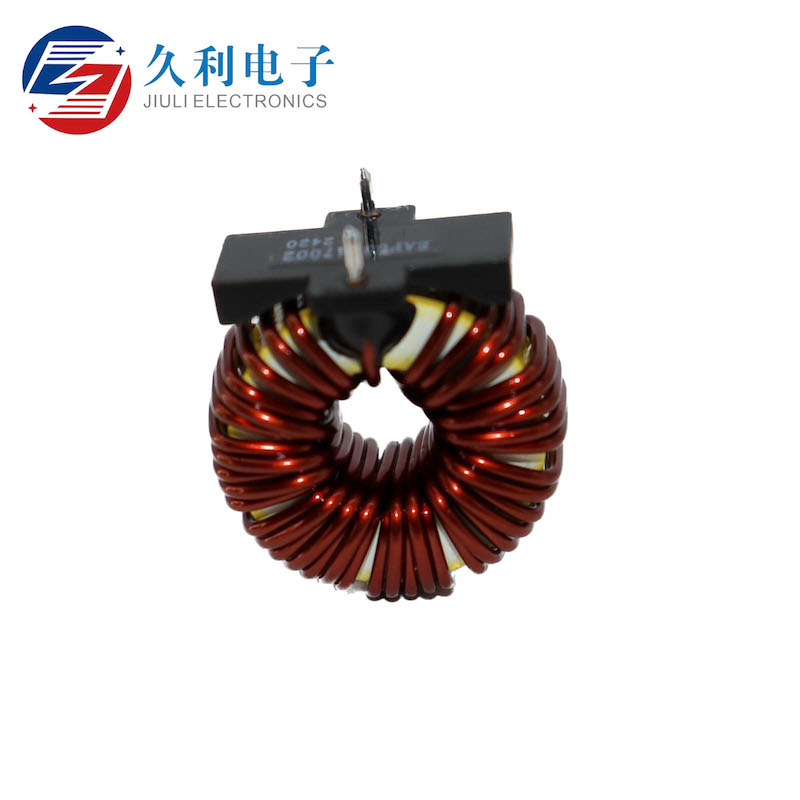

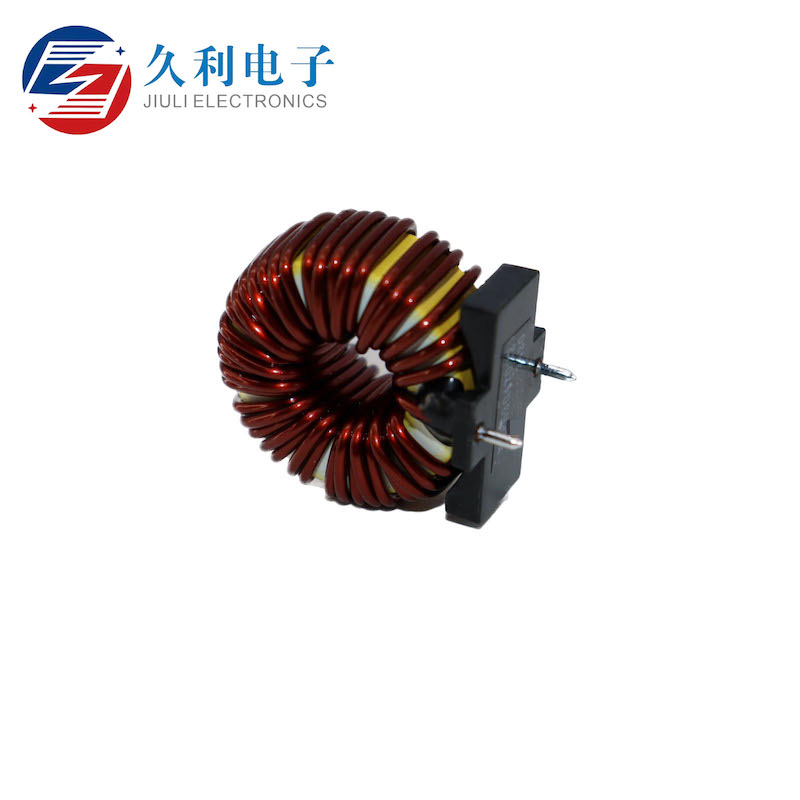

Common-mode inductance

9 month ago

24 0 

Xuzhou Jiuli Electronics Co., Ltd

10 month

Product details

Performance of common mode inductors

Common mode inductors:

Key EMI suppression in circuits Common mode inductors are key passive components used in electronic circuits that are specifically designed to suppress common mode electromagnetic interference (EMI) while allowing differential mode signals to be transmitted without interference. It plays a very important role in improving the electromagnetic compatibility (EMC) of circuits.

How common mode inductors work：

Common mode inductors work by a special arrangement of two inductors, which are usually wound around the same core and wound in the same direction. In the case of a differential mode signal (that is, currents flowing through two coils in opposite directions), the inductance has little effect on the differential mode signal because the magnetic fields generated by currents in opposite directions cancel each other out.

In the case of a common-mode signal (that is, the current flowing through the two coils in the same direction), the magnetic field generated by the two currents is superimposed on each other, making the inductor provide a high impedance to the common-mode signal, thus effectively suppressing common-mode interference.

WHY CHOOSE US:

Xuzhou Jiuli Electronics Co., Ltd. was founded on April 30, 2005, is a long-term engaged in inductors, transformers, linear electronic components manufacturing, sales of large enterprises, headquartered in Suining County Qiuji town Wanglin village, the company has about 300 employees in the production of electronic components has a very deep background and rich experience.

Our main products are Differential Mode Inductor、Common Mode Inductor and so on.Please contact us if necessary. Look forward to your sincere cooperation.
