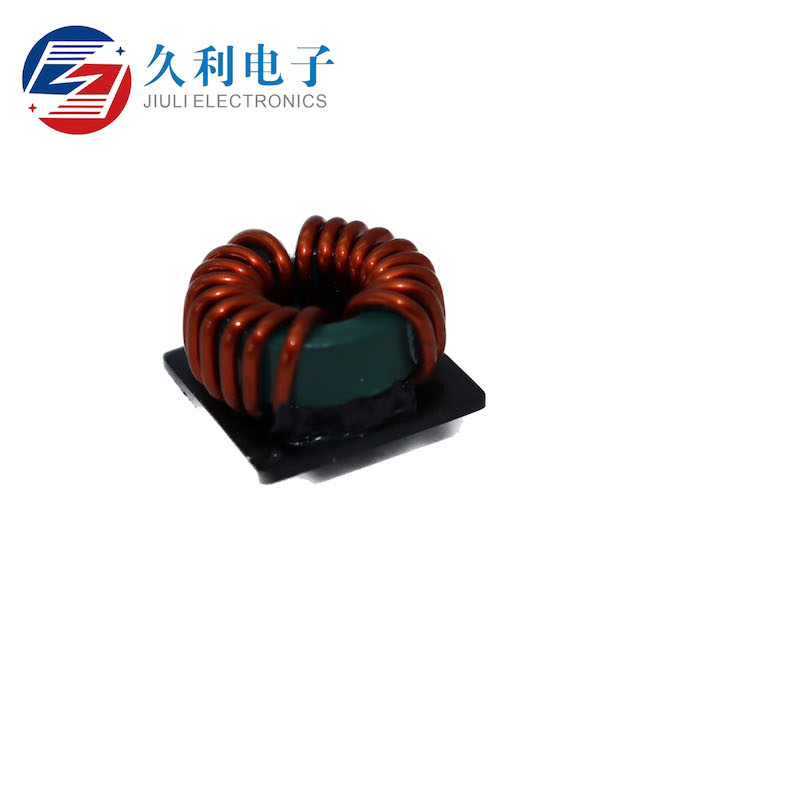

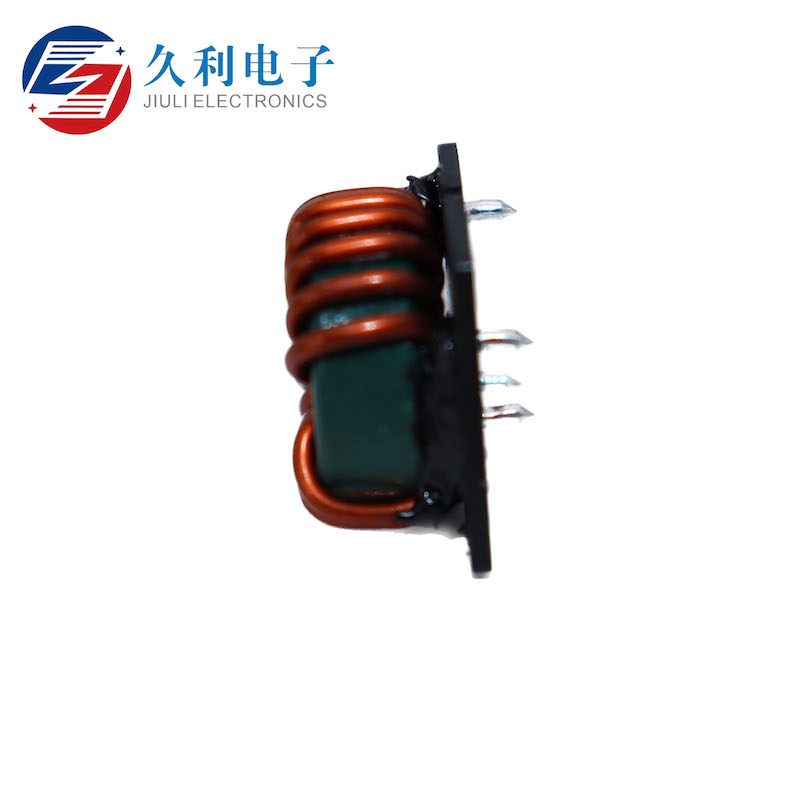

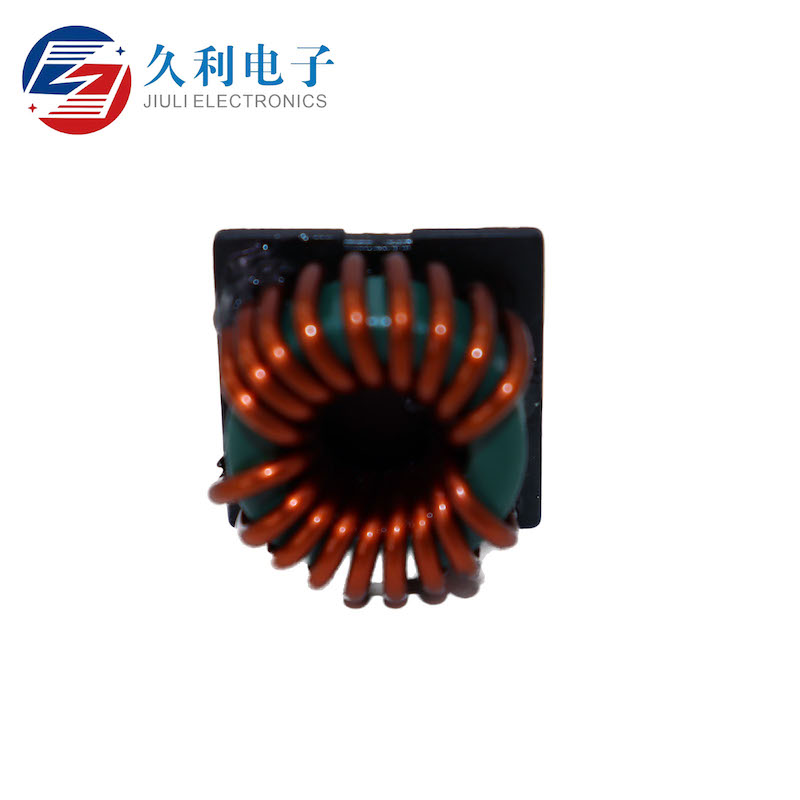

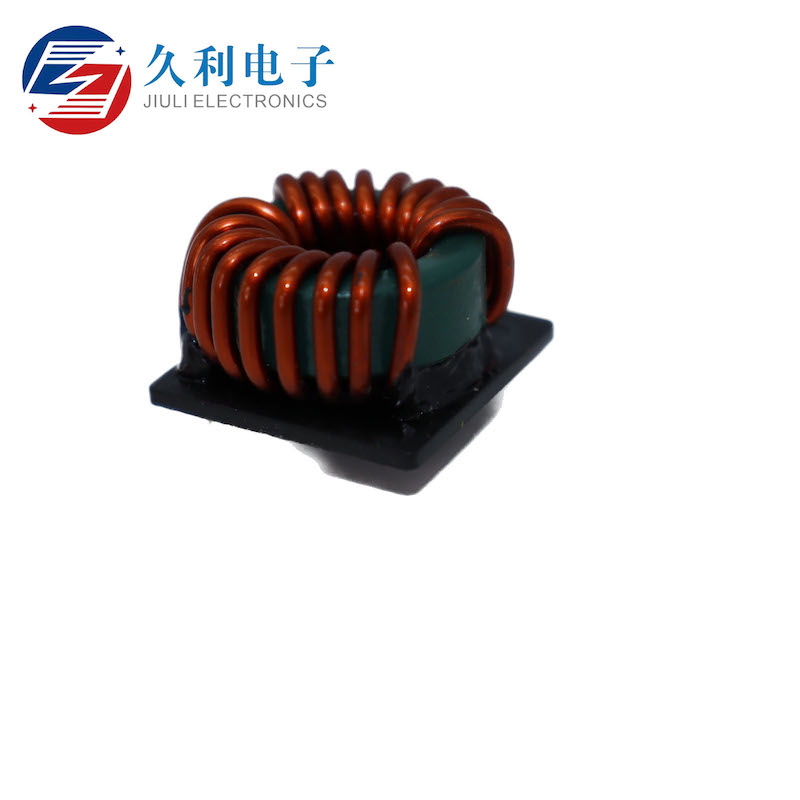

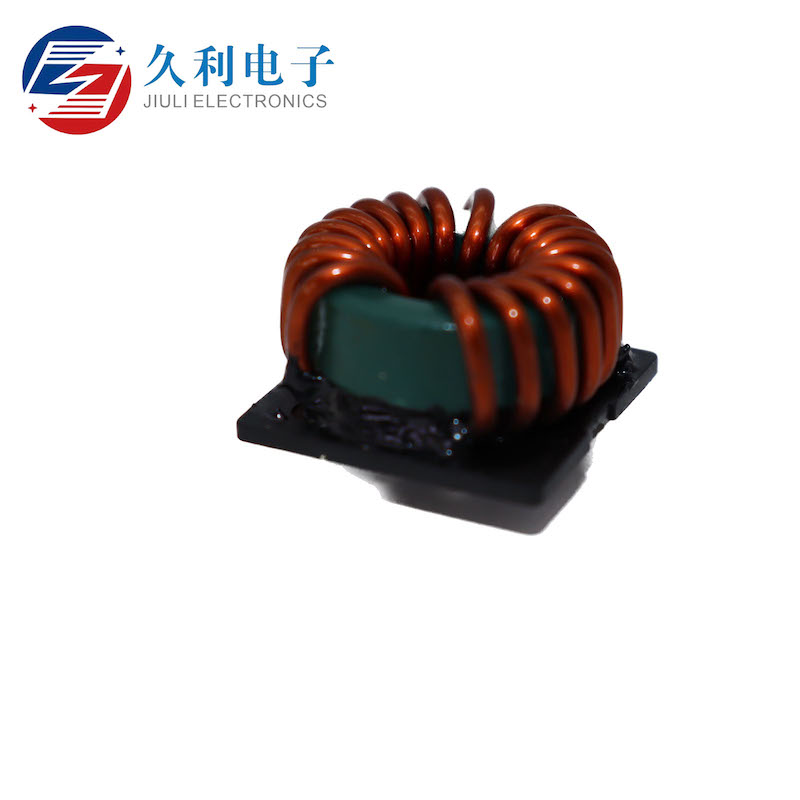

Common-mode inductance

9 month ago

25 0 

Xuzhou Jiuli Electronics Co., Ltd

10 month

Product details

The role of a common mode choke

What is common-mode choke?

Common-mode choke is an electronic component used to suppress electromagnetic interference, and its main function is to filter out common-mode interference signals during signal transmission.

Common mode interference refers to the external interference between the signal line and the ground wire during signal transmission, which may come from electromagnetic waves, electromagnetic interference sources or other environmental interference factors.

The common mode choke can filter out the common mode interference signal through the specific circuit design and the clever coil structure, and ensure the stability and reliability of signal transmission.

The role of the common mode choke includes:

1.Filter out interference signals: the common mode choke can filter out the common mode interference signals on the signal transmission line, maintain the pure signal on the signal line, and improve the quality and stability of signal transmission.

2.Protection equipment: By filtering out common mode interference, common mode chokes can protect connected equipment from interference signals on its circuits and signals, extending the service life of the equipment.

3.Ground line isolation: The common mode choke can help isolate the interference between the signal line and the ground line, ensure the electrical performance between the signal line and the ground line is stable, and prevent crosstalk or interference during signal transmission.

4.Improve signal quality: By eliminating common mode interference, common mode chokes can improve signal quality and accuracy, providing more stable and reliable signal transmission in sensors, communications, control systems and other fields.

WHY CHOOSE US:

Xuzhou Jiuli Electronics Co., Ltd. was founded on April 30, 2005, is a long-term engaged in inductors, transformers, linear electronic components manufacturing, sales of large enterprises, headquartered in Suining County Qiuji town Wanglin village, the company has about 300 employees in the production of electronic components has a very deep background and rich experience.

Our main products are Electronic Transformer、High-frequency Transformer、Switching Power Supply Transformer、Differential Mode Inductor、I-type Inductor、Common Mode Inductor.

Please contact us if necessary. Look forward to your sincere cooperation.
