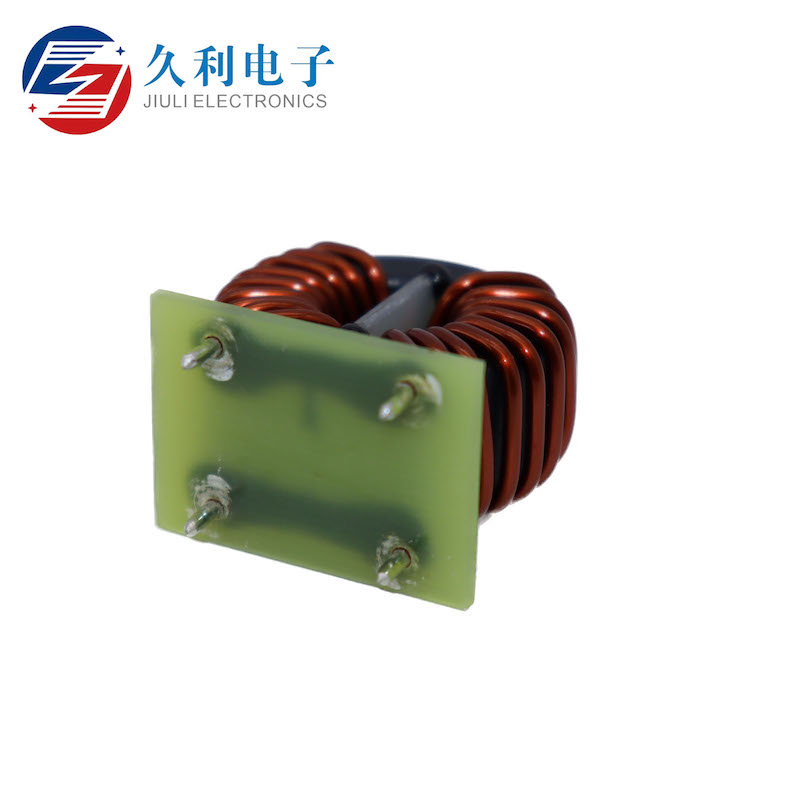

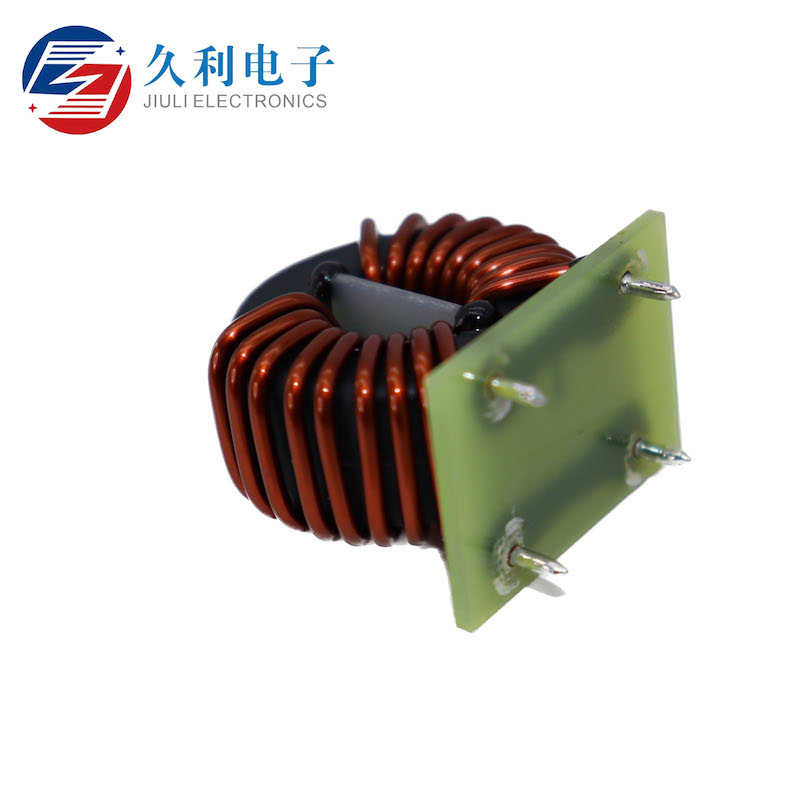

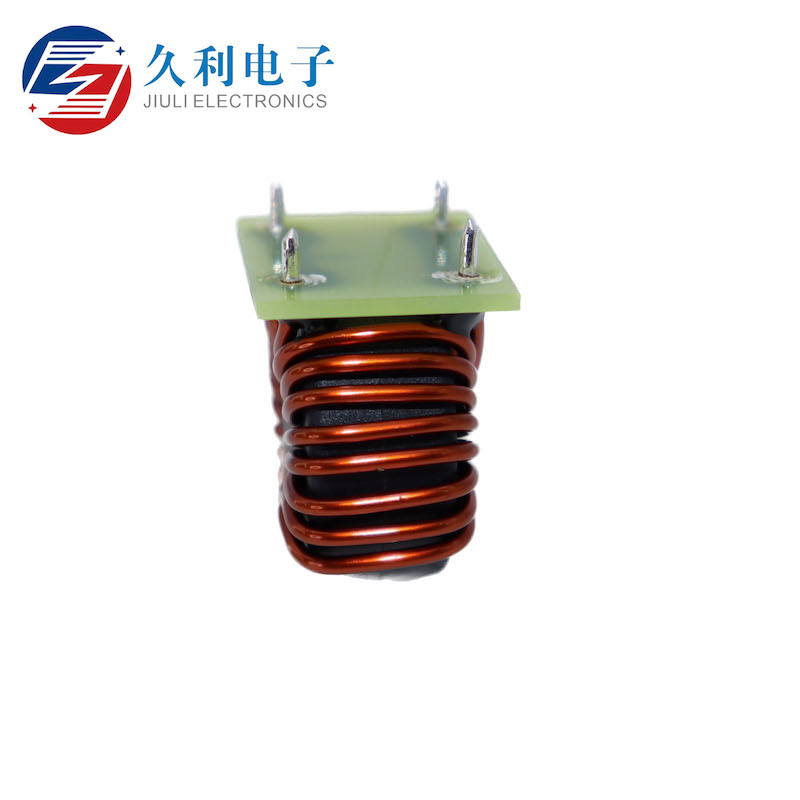

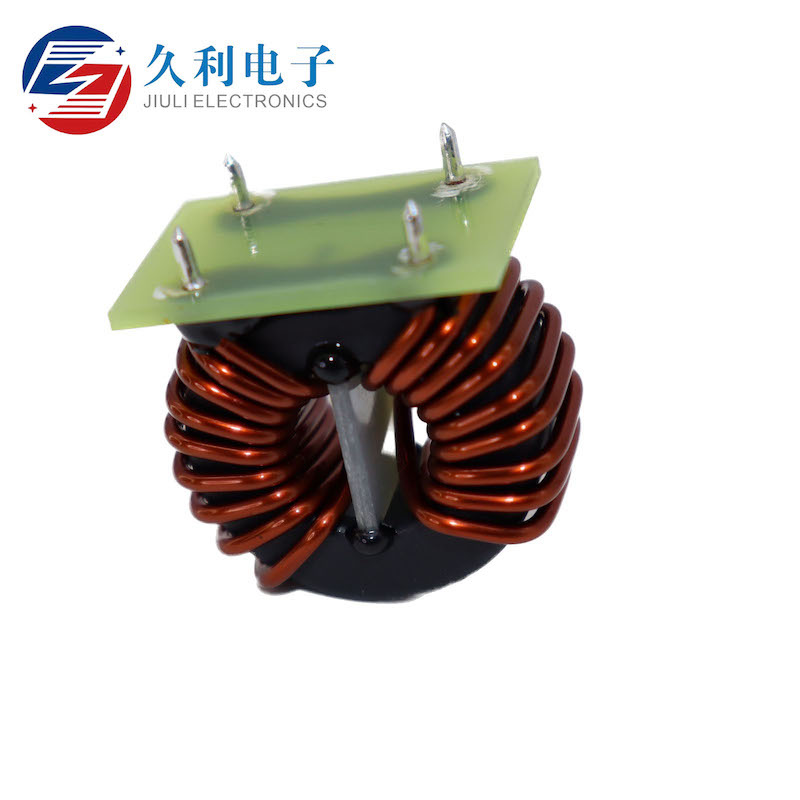

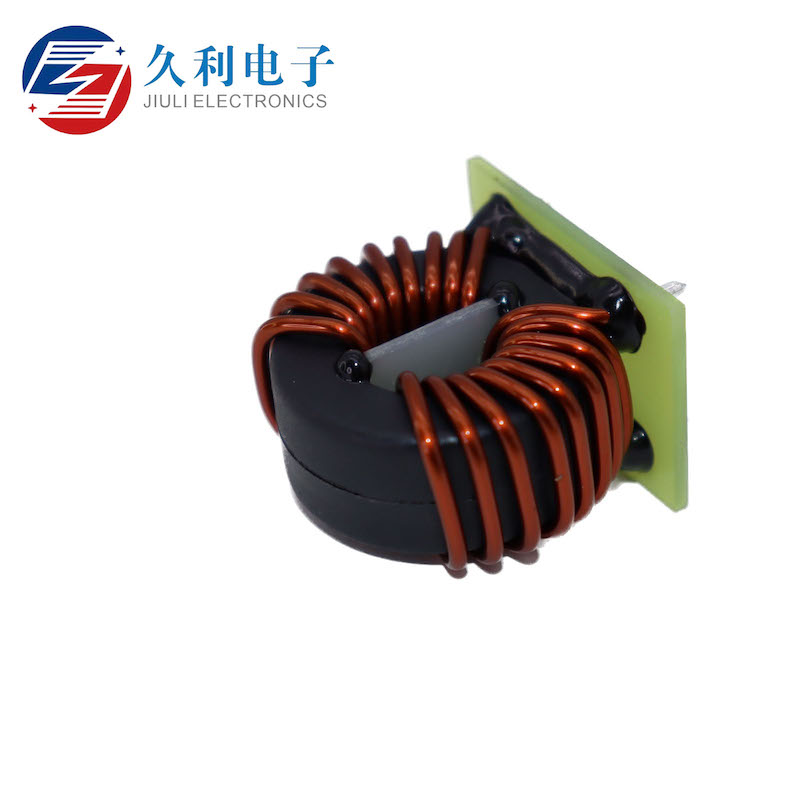

Common-mode inductance

9 month ago

21 0 

10 month

Product details

The role of common mode inductors

A common mode inductor is an inductive component that plays an important role in circuit design and electronic equipment manufacturing, and is usually used to suppress common mode interference in circuits. Common mode interference refers to the interference signal that affects two signals in the circuit at the same time, and this interference usually comes from the external environment or other circuits.

The common mode inductor can improve the anti-interference ability of the circuit, reduce the signal distortion and noise, and ensure the stability and performance of the circuit. It is usually placed between two signal wires of the circuit and connected to the ground wire.

When a common-mode signal enters a circuit, it is absorbed by a common-mode inductor with a higher impedance and leaks through the ground.

Therefore, the common mode inductor can improve the anti-interference ability of the circuit and reduce the signal distortion and noise.

In addition, common mode inductors can also be used as components of differential mode circuits to improve the performance and stability of the circuit.
