The use of common mode inductors

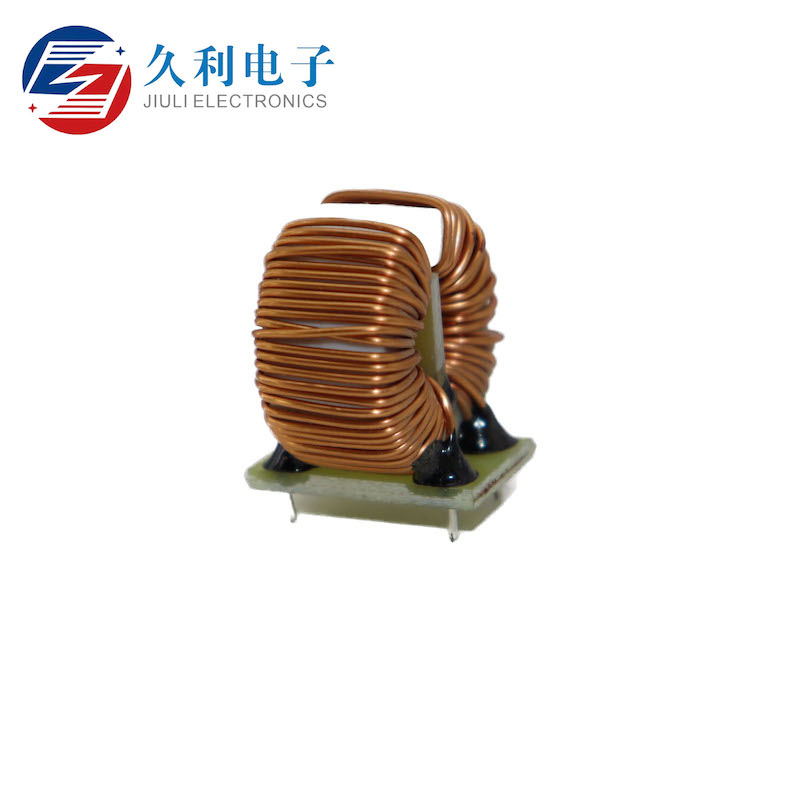

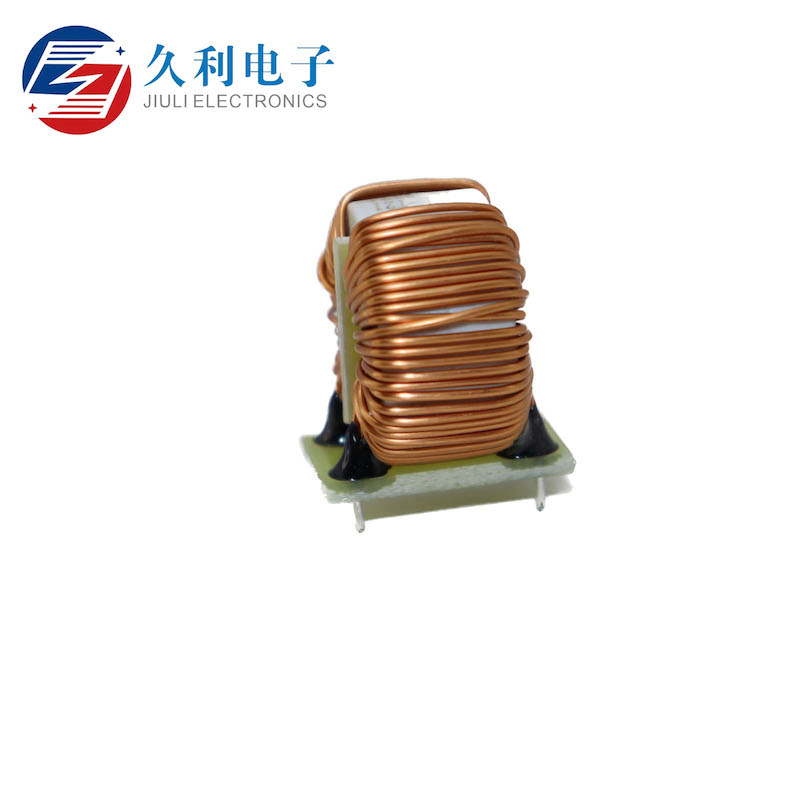

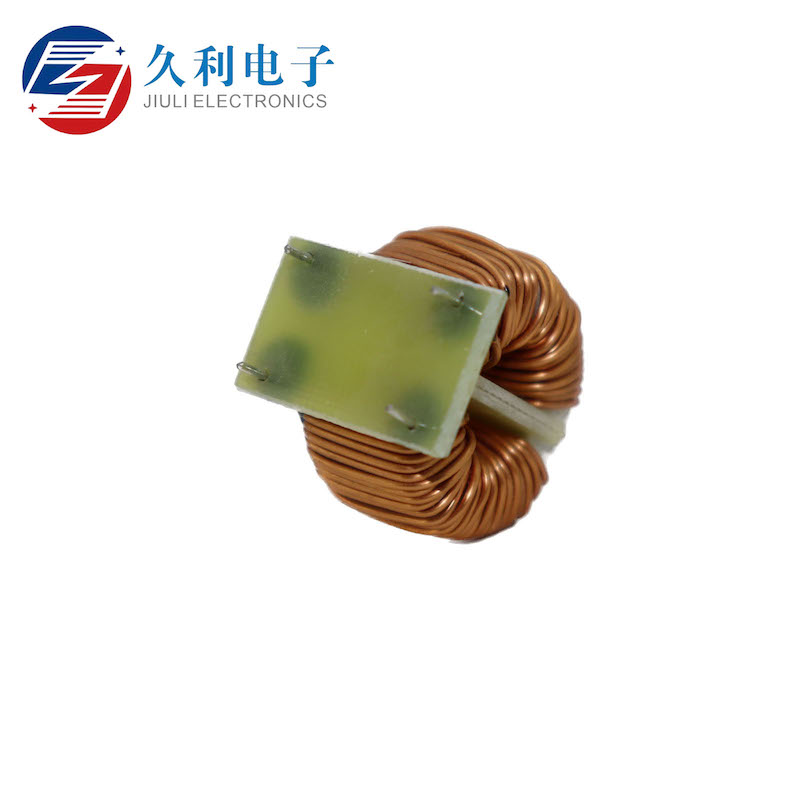

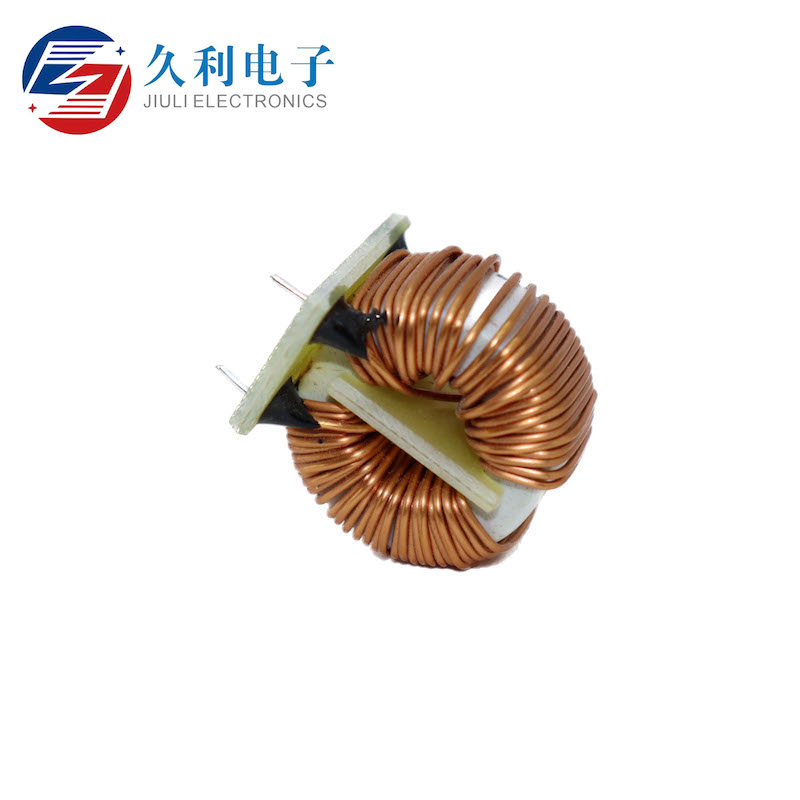

Common mode inductor

Common mode inductors (common mode chokes) form various filters to filter electromagnetic interference and suppress the electromagnetic waves generated by various high-speed signals from being emitted outward, so they are generally used in switching power supply circuits to play a suppressive role. Common mode inductors have a blocking effect on alternating current. For common mode inductors, we generally see more patches and windings.

In general, when choosing a common mode inductor, pay attention to the following parameters:

1. Impedance indicates the maximum impedance of the device at 100 MHZ. In general, when applying common mode inductors, this value is used as a key reference for selection.

2.Rated Current Indicates the maximum rated current of the device. At the time of selection, this parameter is taken as the focus, and the circuit working current must be less than the rated working current of the device, otherwise it is easy to burn the device.

3. As for other parameters as a reference.

WHY CHOOSE US

Xuzhou Jiuli Electronics Co., Ltd. was founded on April 30, 2005, is a long-term engaged in inductors, transformers, linear electronic components manufacturing, sales of large enterprises, headquartered in Suining County Qiuji town Wanglin village, the company has about 300 employees in the production of electronic components has a very deep background and rich experience.
