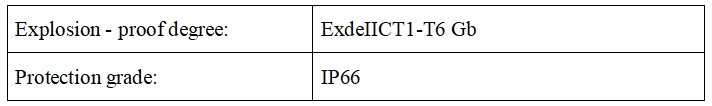

Flange Electric Heater (explosion-proof)
7 month ago
Performance and use of flange electric heating pipe

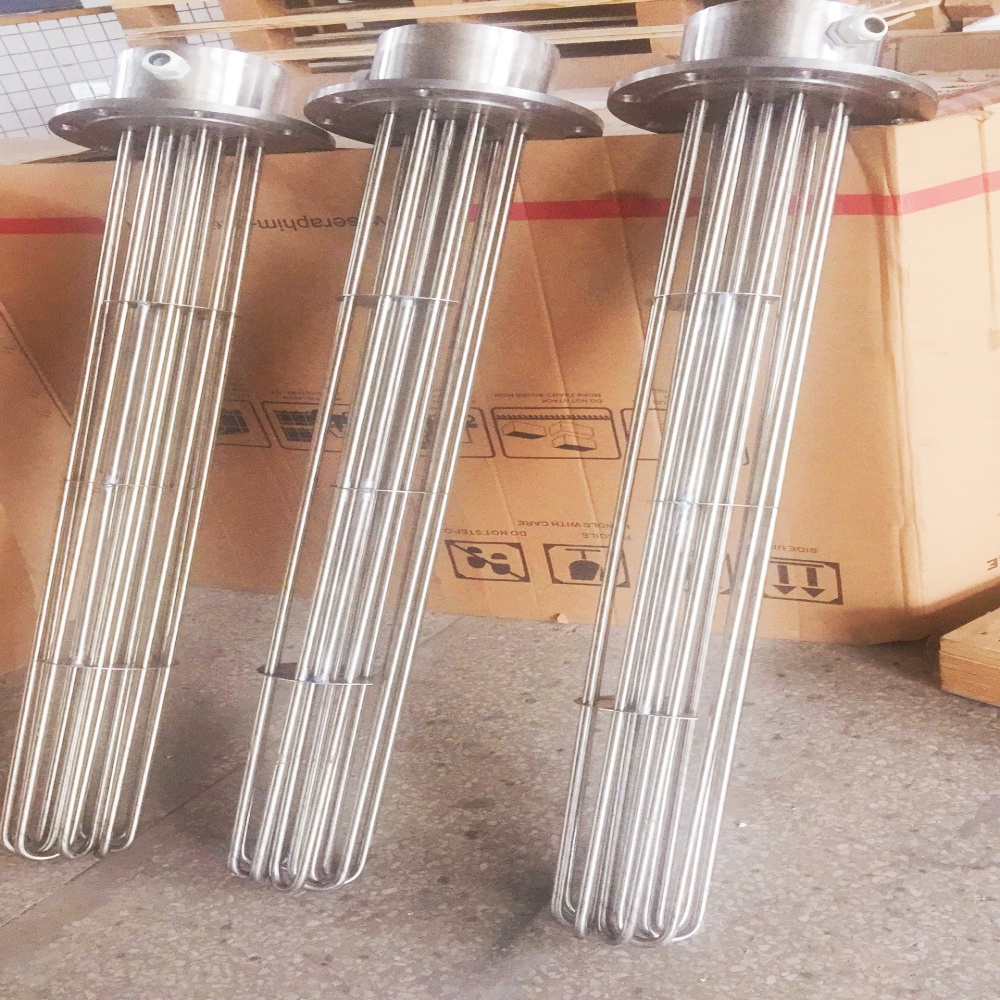

Flange heating pipe is made of multiple heating pipe welded on the flange for centralized heating.
Mainly used for open, closed solution box and circulation system for heating.
Advantages:
① Large surface power, so that the air heating surface load of 2~4 times;
② Highly intensive, compact structure;
③ Because of the overall short and dense, so the stability is good, the installation without a support.

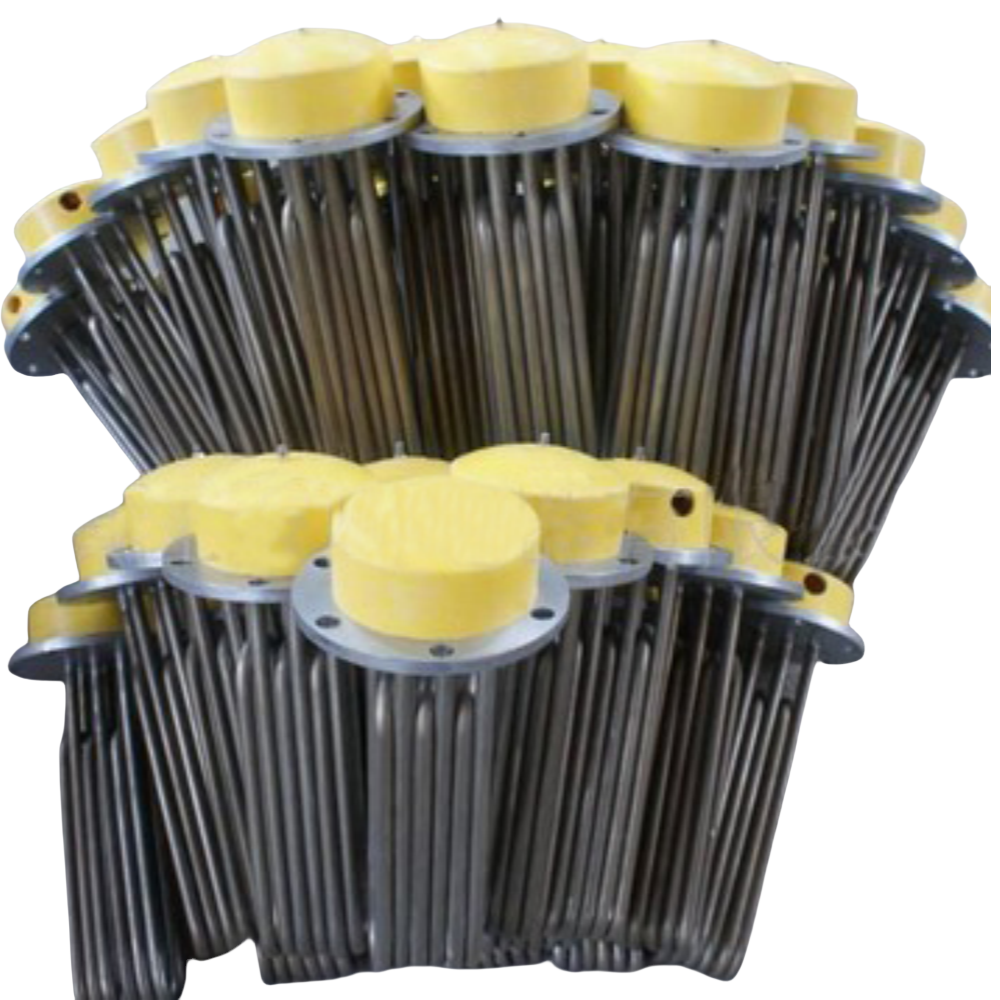

Combined flange heating pipe mostly adopts argon arc welding method to connect the electric heating pipe to the flange, and can also be used in the form of fastening device, that is, there are fasteners welded on each electric heat pipe.
Then lock with the flange cover by a nut.The pipe and fasteners are welded with argon arc and never leak.
Fastener sealing place adopts scientific process.
Single replacement is very convenient, greatly saving the future maintenance costs.
Choose high-quality materials.Scientific production process, strict quality management, to ensure the superior electrical performance of the electric heating pipe.
Overview and working principle of the flange heating pipe

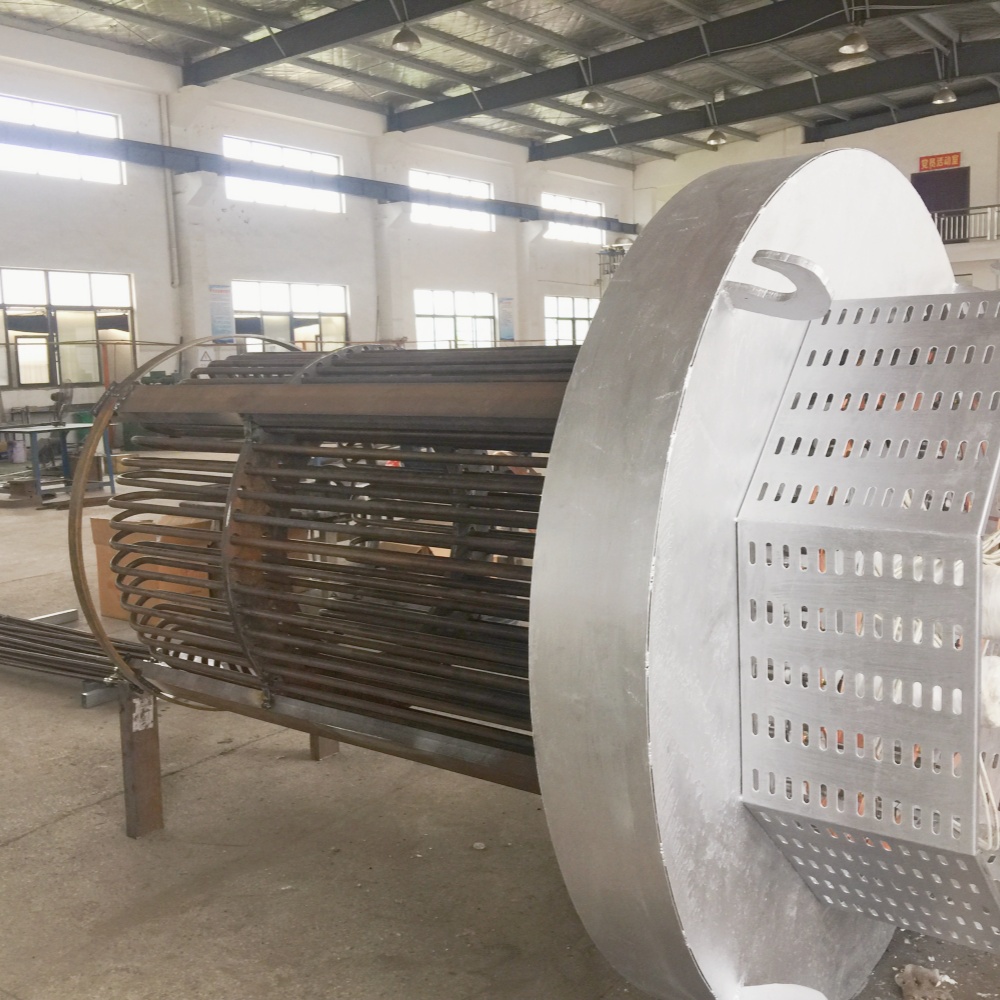

Flange electric heating tube (also known as insert electric heater): is the U-type tubular electric heating element, according to the heating different medium design specification, according to the requirements of power configuration assembly on the flange cover, insert in heating material, heating element working a large amount of heat conduction to the heating medium temperature rise, to meet the required process requirements.
When the temperature of the medium reaches the set value of the process requirements, the control system adjusts the output power of the electric heater according to the temperature sensor signal and the PID calculation to ensure the temperature of the heating element is at ultra high temperature or low liquid level, the interlocking protection device cuts off the heating power to avoid the burning and prolong the service life.
Application range of the flange electric heating pipe
Flange heating pipe is mainly for petroleum, chemical, food, machinery and other industries of various storage tanks, containers, fuel tank material insulation and heating.
The connection mode can be flanged or threaded end face seal.
Flange electric heating tube, flange heating tube This product can be customized according to customer requirements, provide drawings, voltage, power, size, etc.
