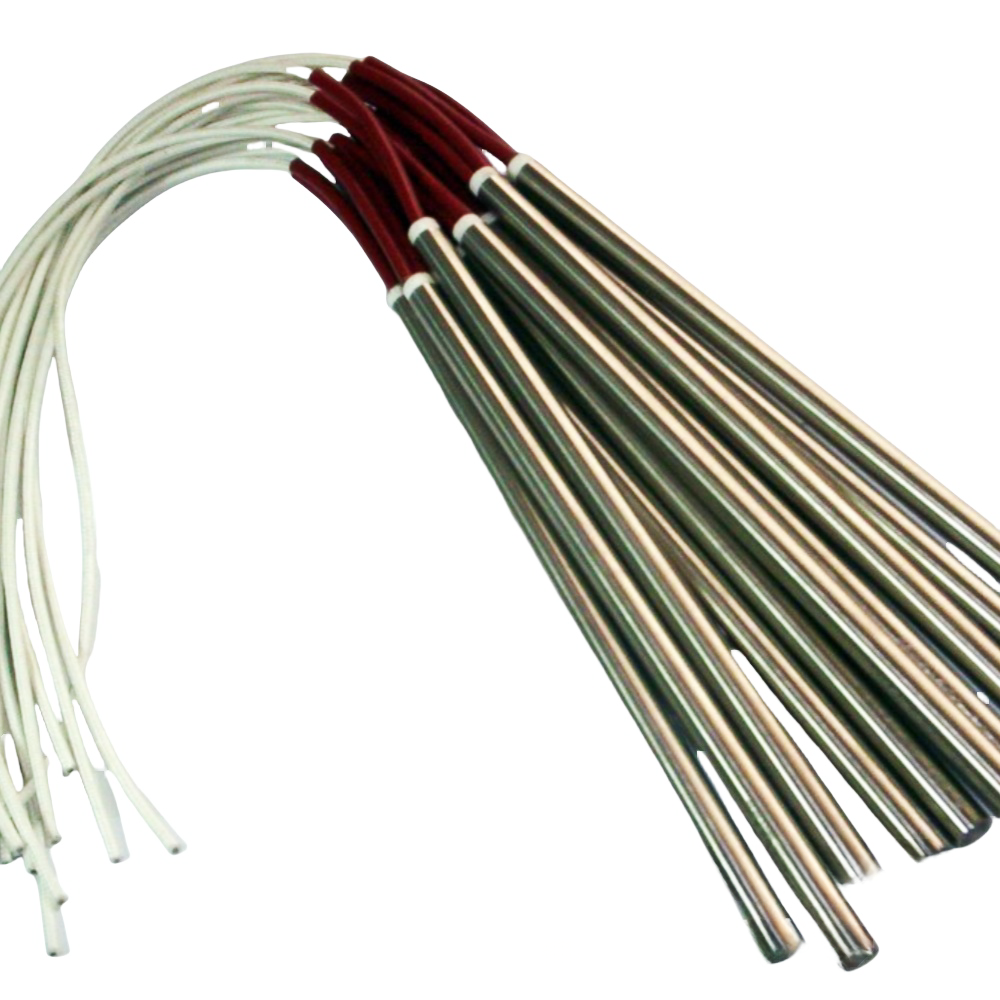

Single-head heating tube
7 month ago
The single-head heating tube(Also called Single-end electric heat pipe or Bomb cylinder heater) is made of metal tube loaded with high resistance electric heating wire heating material.
It is filled and enriched around the electric heating wire, has good insulation performance, and can use high purity magnesium oxide with high thermal conductivity as the filler.
Features:
High power, High thermal efficiency, Fast heat dissipation.
Application:
It can be used for plastic packaging, small mold heating, analytical instruments, cooling effect and other heating.
The single-head heating tube is suitable for working in a heating medium where both ends cannot be wired.
It can be used in the high and low temperature insertion heating of various size molds and mechanical equipment, including punching molds and other molds, medical equipment, plastic sealing machine, bottle mouth sealing machine, continuous automatic sealing machine, cigarette making machine, etc.
Advantages:
1,Small diameter, 3-35mm
2,Limitless length:20-2000mm
3,High power:2-5 times of the power of the normal electric heating pipe; surface area of 20 w/㎡；
4，Simple in structure；
5，Safe and Easy to install;
6，Long service life;
7，Environmental protection and energy saving.
