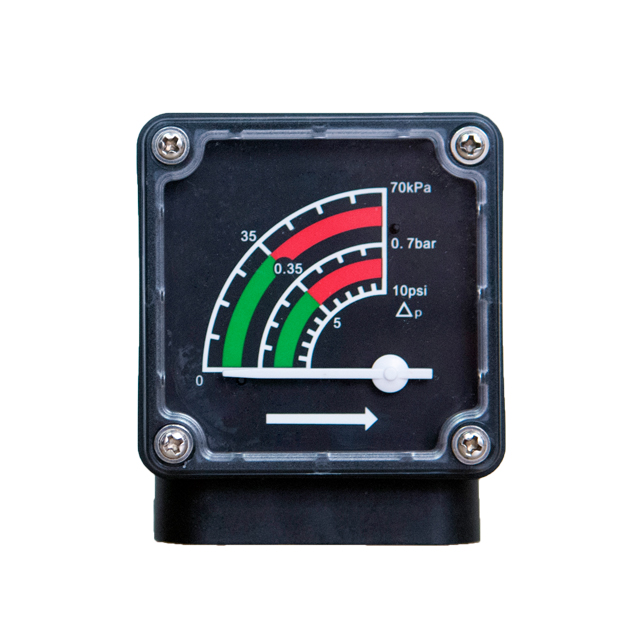

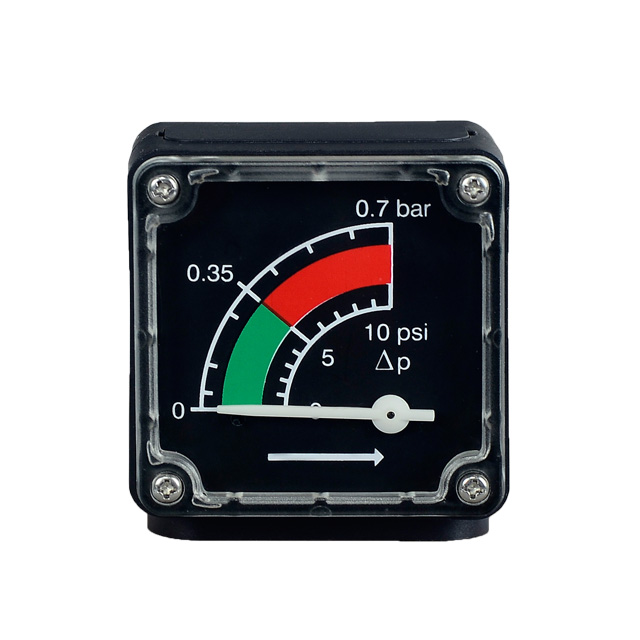

Different Differential Pressure Indicator for Air Filter

The different Pressure Indicator Gauge are install on the Air filter, they are not correction or accuracy instruments.

For different pressure indicator green and red are usually show, and if the indicator is in the green area, the filter element does not need to be replaced.When the pressure difference is larger than 0.35bar, or the filter element is blocked, the pointer will point to the red area, reminding us that need to replace the filter element. Same as different pressure gauge.

Because the differential Differential Pressure Indicator, is not an indicator of compressed air quality, It can only simply measure the pressure difference and the performance blockage of the filter element.

Working Conditions

Max. Differential Pressure: 0.7 bar g (10.15 psi g)

Max. Working Pressure: 10 bar g (145 psi g)

Min. Working Pressure: 0 bar g (0 psi g)

Max. Working Temperature: 80 ℃ (176°F)

Min. Working Temperature: 1.5℃ (35°F)

Why Choose YUKA Brand Accessories?

*Unique Mould Designed by YUKA

*Quality Raw Material

*Destructive Test Temperature: -20℃ to 120℃

*100% Quality Test Before Delivery

*Promise the safety
