M336, M312 golden pixel mapping at the show
4 year ago
Product Description:

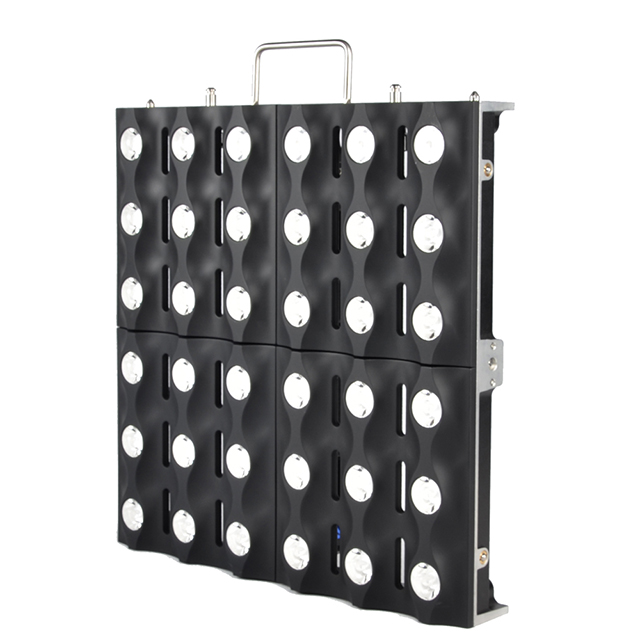

36pcs CREE led, Integration alloy case design, which make the fixture working up to the top. Compare to the traditional 5x5 eyes matrix blinder led, EV M336 have more eyes to show more effect, which makes your stage special. 36 pixels with 3 degree beam angle can play different pixel mapping. it performs perfectly at large entertainment shows, concerts, nightclubs, discotheques, etc.
features:
1, 36x1 pixels
2, fanless design, aluminum die cast
3, quick lock can be easy to connection
Specification:
Electrical:
1) Input Voltage: AC100V-240V, 50/60Hz
2) Power Consumption: 120W / 220V
Light Source:
LED: 36pcs*3W CREE XPE 2800K LED
Rated Life: 50,000 hrs
Optical:
1) Dimmer: 0-100%
2) Strobe: 0-20 Hz

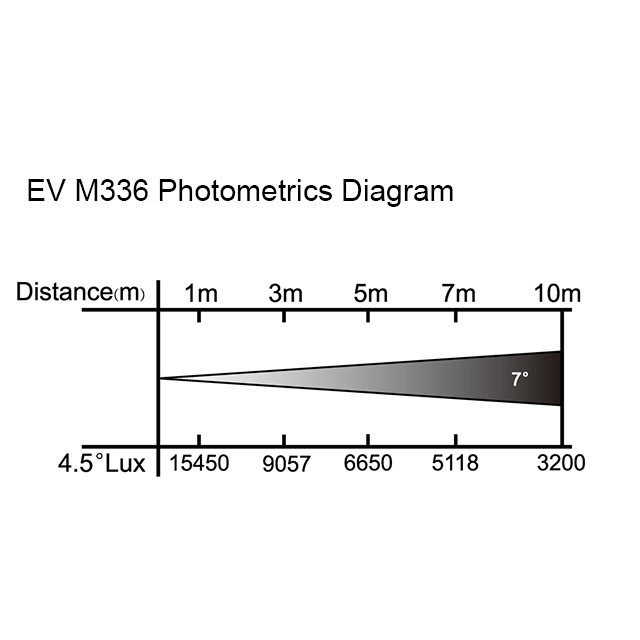

3) Beam Angel: 7°
Control:
1) Protocol: DMX 512
2) Operating Modes: DMX, Stand-along, Master/Slave, sound active
3) DMX Channels: 1/4/10/36/40 Channels
4) DMX Input: 3-pin
5) DMX Output: 3-pin
Physical:
1) Dimension: 500*500*84mm
2) Weight: 8.5 kg
3) Finish: Matte black
4) Case: Aluminum die case + plastic
4) Protection Rating: IP20, dry location

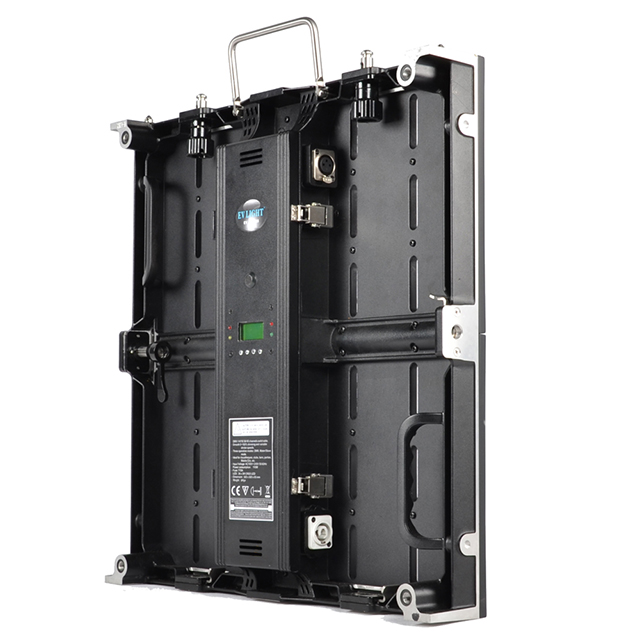

5) Fixture Connection: DMX In/Out, Power In/Out
Thermal:
Maximum Ambient Temperature: 40℃
Minimum Ambient Temperature: -20℃
Maximum Surface Temperature: 60℃
Accessories/Spare Parts: Power Cable (1.5m), DMX Cable (1.5m)
Warranty: 1 year
