YZPST-RC7.8x5.5UR-102K
4 year ago
RC7.8x5.5UR-102K I-shaped inductor
CUSTOMER:
PART NO: RC7.8x5.5UR-102K
CUSTOMER PART NO:

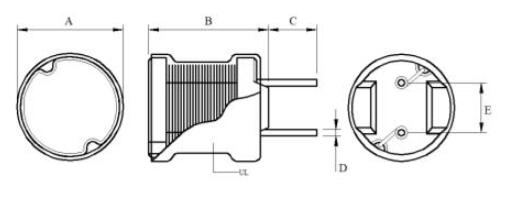

(1) DIMENSION(UNIT: mm)
DATE:
DWG.NO: TL2318115
CUST.DWGNO:
A.9.00 (MAX) m/m
B.6.50 (MAX) m/m
C.5.0 ± 1.0 m/m
D.5.00 (REF) m/m
(2)ELECTRICAL REQUIREMENTS
L (mH) : 1.0 ± 10%
RDC (Q) :5.28 (MAX)
IDC (A):0.25 (MAX)
TEST CONDITION:1 KHz/0.25 V
(3)SCHEMATIC
(4)MATERIAL LIST
|
NO/ITEM
|
MATERIAL |
|
CORE |
DR7.8x5.Ox3.5m or the same level |
|
WIRE TYPE |
2UEW 0.11m/m or the same level |
|
WIRE TYPE |
143.5TS(REF) |
