Product details

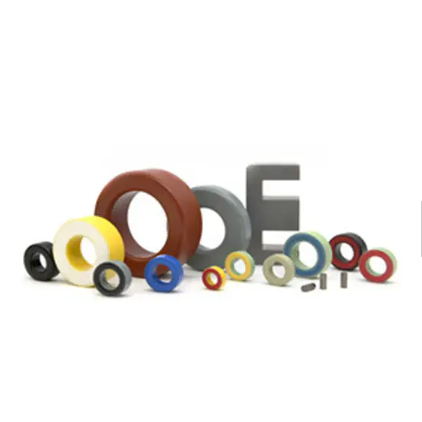

Ferrite Core

Ferrite soft magnetic material is a material that is easy to magnetize and demagnetize under a weak magnetic field. Mainly include zinc-chromium ferrite and nickel-zinc ferrite. It is a ferrite material with wide uses, many varieties, large quantities and high output value.

It is mainly used to make various inductive components, such as filter cores, transformer cores, radio cores, and tape recording and video heads. It is also a key material for magnetic recording components.

Good characteristic

Ferrite soft magnet is an important magnetic material with superior magnetic and electromagnetic properties. It is a magnetic material with high magnetic permeability, low hysteresis, low loss, high saturation magnetic induction intensity and high temperature stability.

Widely Application areas

Ferrite soft magnets are widely used in electronic communications, electric vehicles and other fields.Used to make various components。With the development of science and technology, the application prospects will become broader.

Ferrite Core

FRC CORES

Type	Dimensions(mm)			Weight (g/set)
Type	A	B	C	Weight (g/set)
FRC64/40/25	64.0±0.8	40.0±0.6	25.0±0.5	231.0
FRC64/41/19	64.0±0.8	41.0±0.6	19.0±0.5	170.0
FRC64/41/22	64.0±0.8	41.0±0.6	22.0±0.5	197.0
FRC67/43/18	67.0±0.8	43.0±0.6	18.0±0.5	175.0
FRC76/52/20	76.0±1.0	52.0±0.8	20.0±0.5	226.0
FRC78/52/25	78.0±1.0	52.0±0.8	25.0±0.5	312.0
FRC78/52/30	78.0±1.0	52.0±0.8	30.0±0.5	375.0

Type

Parameters

A_L-value(1±25%)/(nH/N²)

1kHz,0.25V,10Ts,25±3℃

C₁

(mm-1)

L_e

(mm)

A_e

(mm²)

_V_e

(mm³)

KY30

KY301

KY302

KY303

KY404

FRC64/40/25

0.54

158.1

295.5

46720

3600

3600

3600

3600

5100

FRC64/41/19

0.74

159.9

215.3

34430

2700

2700

2700

2700

3800

FRC64/41/22

0.64

160.1

249.6

39970

3100

3100

3100

3100

4400

FRC67/43/18

0.79

167.4

212.7

35620

2500

2500

2500

2500

3500

FRC76/52/20

0.83

196.7

236.4

46500

2300

2300

2300

2300

3300

FRC78/52/25

0.62

198.7

320.0

63600

3100

3100

3100

3100

4400

FRC78/52/30

0.52

199.7

386.1

77120

3700

3700

3700

3700

5200

Ferrite Core
