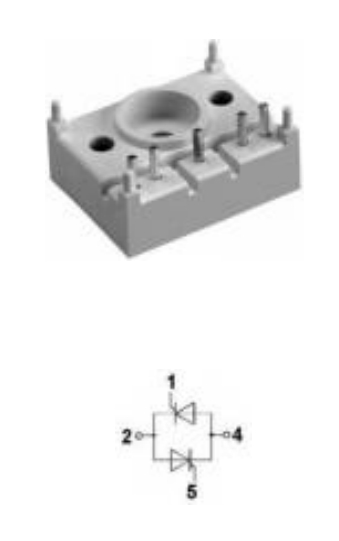

Thyristor Module SK70KQ12
2 year ago
YZPST-SK70KQ12
70A 1200 Thyristor Module
PRODUCT FEATURESCompact Design
One screw mounting
Heat transfer and isolation through DBC
Glass passivation thyristor chips
Low Leakage Current
APPLICATIONS
Soft starters
Temperature control
Light control
ABSOLUTE MAXIMUM RATINGS(T C =25°C unless otherwise specified)
| Symbol | Parameter | Test Conditions | Values | Unit |
| VRRM | Maximum Repetitive Reverse Voltage | Tvj=125℃ | 1200 | V |
| VDRM | Maximum repetitive peak off-state voltage | |||
| VRSM | Non-Repetitive Reverse Voltage | Tvj=125℃ | V | |
| VDSM | Non-repetitive peak off-state voltage | 1300 | ||
| IRRM | Maximum Repetitive Reverse Current | Tvj=125℃ | 5 | mA |
| IDRM | Maximum repetitive peak off-state Current | |||
| IT(AV) | Mean On-state Current | TC=85℃ | 55 | |
| IT(RMS) | RMS Current | TC=85℃, sin180。 | 80 | A |
| ITSM | Non Repetitive Surge Peak On-state Current | 10ms, Tj=25℃ | 1100 | |
| I2t | For Fusing | 10ms, Tj=25℃ | 6050 | A2S |
| VTM | Peak on-state voltage | ITM=150A | 1.7 | V |
| dv/dt | critical rate of rise of off-state voltage | VD=2/3VDRM Gate Open Tj=125℃ | 1000 | V/us |
| IGT | gate trigger current max. | 80 | mA | |
| VGT | gate trigger voltage max. | 1.5 | V | |
| IH | gate trigger current | 200 | mA | |
| IL | latching current | 500 | mA | |
| Viso | AC 50Hz RMS 1min | 2500 | V | |
| TJ | Junction Temperature | -40 to +125 | ℃ | |
| TSTG | Storage Temperature Range | -40 to +125 | ||
| RthJC | Junction to Case Thermal Resistance(Per thyristor chip ) | 0.7 | ℃ /W | |
| Torque | mounting force, Module to Sink | 2.5 | Nm | |
| Tsolder | Teminals,10s | 260 | ℃ | |

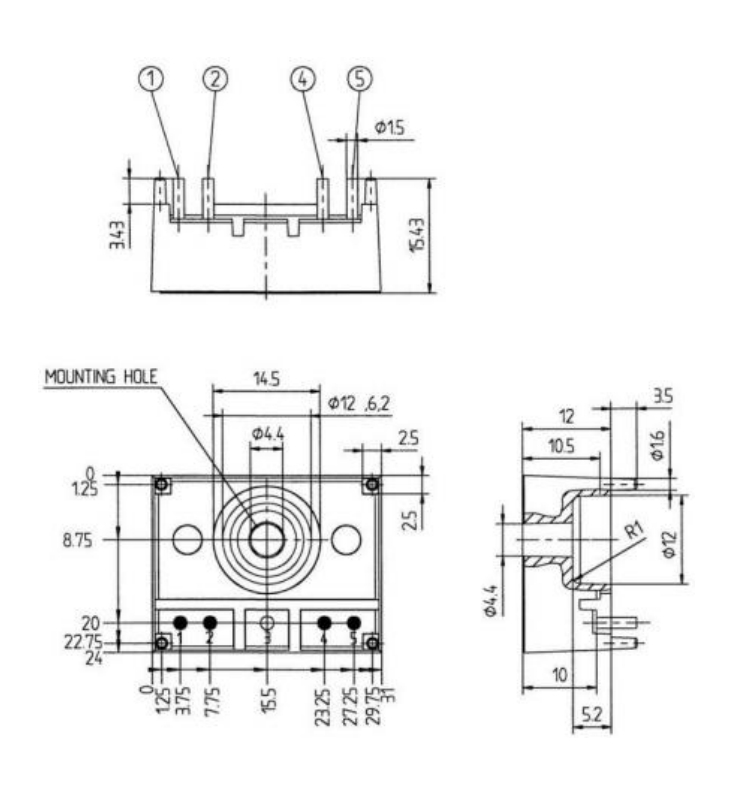

Outlines
