Product details

Ferrite Core

Ferrite soft magnetic material is a material that is easy to magnetize and demagnetize under a weak magnetic field. Mainly include zinc-chromium ferrite and nickel-zinc ferrite. It is a ferrite material with wide uses, many varieties, large quantities and high output value.

It is mainly used to make various inductive components, such as filter cores, transformer cores, radio cores, and tape recording and video heads. It is also a key material for magnetic recording components.

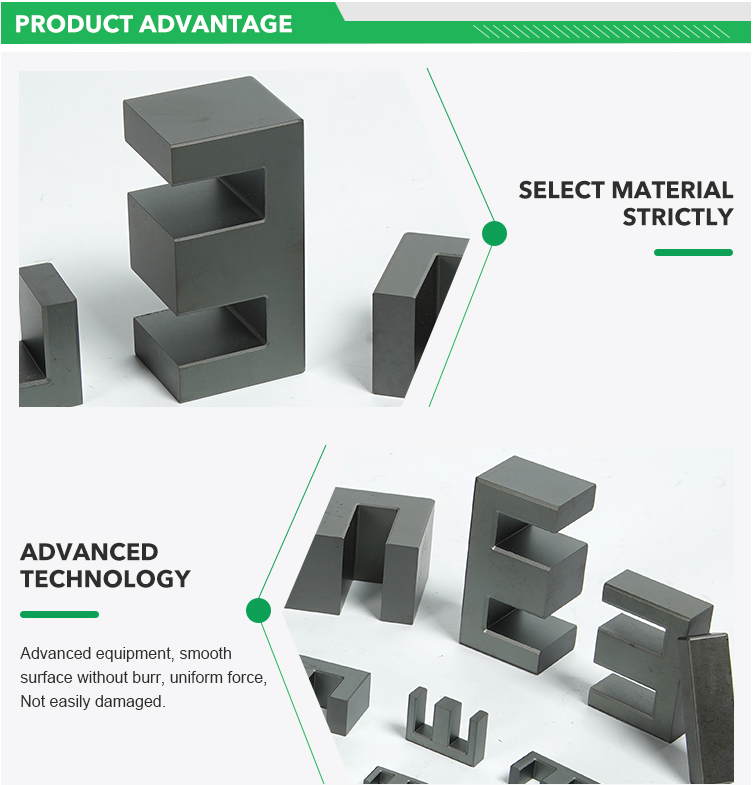

Good characteristic

Ferrite soft magnet is an important magnetic material with superior magnetic and electromagnetic properties. It is a magnetic material with high magnetic permeability, low hysteresis, low loss, high saturation magnetic induction intensity and high temperature stability.

Widely Application areas

Ferrite soft magnets are widely used in electronic communications, electric vehicles and other fields.Used to make various components。With the development of science and technology, the application prospects will become broader.

Ferrite Core

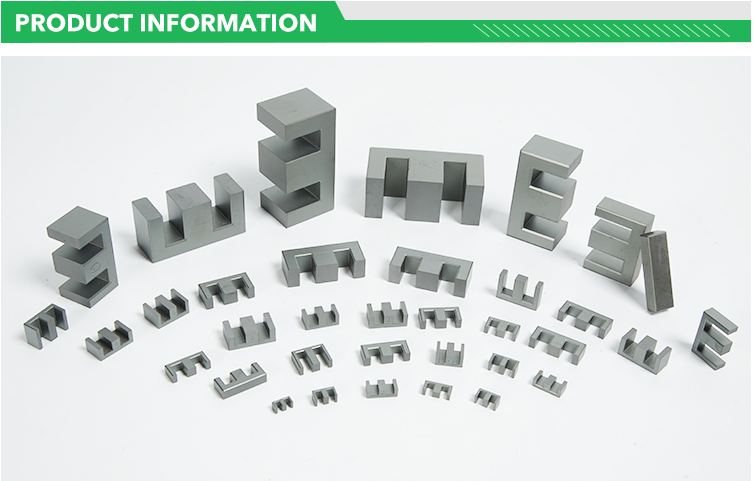

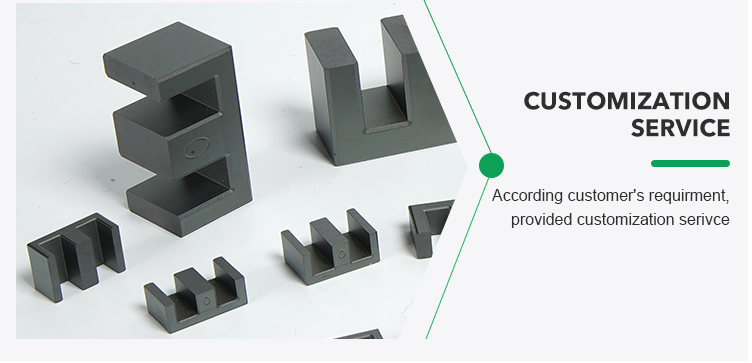

EE CORES

Ferrite Core

Type	Dimensions(mm)							Weight (g/set)
Type	A	B	C	D	E	F	B-F	Weight (g/set)
EE17	17.0±0.4	10.1±0.2	9.7±0.3	4.0±0.25	12.5min	8.1±0.2	2.0±0.2	10.3
EE19	18.4±0.4	4.35±0.15	8.9±0.3	4.0±0.2	14.4±0.4	2.4±0.15	1.95±0.15	6.9
EE19A	19.1±0.4	8.15±0.3	4.85±0.3	4.55±0.15	14.2min	5.8±0.2	2.35±0.15	5.06
EE20	20.0±0.5	10.0±0.2	5.65±0.3	5.6±0.3	14.1min	7.2±0.25	2.8±0.2	8.06
EE20A	20.5±0.4	10.0±0.2	5.7±0.2	5.7±0.2	15.0min	7.3±0.2	2.7±0.2	8.3
EE22	22.0±0.5	9.5±0.2	5.7±0.3	5.7+03	15.6min	5.7±0.25	3.8±0.2	9.06
EE22A	22.0±0.4	12.6±0.2	5.75±0.25	5.75±0.25	15.6min	9.0±0.2	3.6±0.2	11.1
EE25	25.4±0.5	10.0±0.2	6.4±0.3	6.4±0.3	18.5min	6.9±0.25	3.1±0.2	10.74
EE25A	25.3±0.6	12.8±0.25	10.7+0.3	7.2±0.3	18.0min	9.35±0.2	345+0.15	23.8
EE22B	22.1±0.5	15.35±0.25	5.75±0.25	5.75±0.25	15.6min	11.35±0.3	4.0±0.25	12.7
EE25B	25.3±0.5	12.8±0.25	7.0±0.3	7.2±0.3	18.0min	9.3±0.25	3.5±0.25	23.8
EE28	28.5±0.5	9.2±0.2	10.9±0.3	7.3±0.3	18.8min	6.3±0.2	2.9±0.15	23.7
EE28A	28.5±0.5	10.4±0.2	10.7±0.3	7.3±0.3	18.8min	6.4±0.3	40+0.25	23.3
EE32	32.9±0.5	6.2±0.2	18.35±0.3	4.9±0.15	28.1±0.4	4.1±0.15	2.1±0.15	23.1
EE32A	32.0±0.5	16.1±0.2	9.2±0.3	9.2±0.3	24.5±0.35	11.4±0.2	4.7±0.2	33.7
EE33	33.1±0.4	6.55±0.15	18.25±0.25	4.7±0.2	28.5±0.4	4.25±0.15	2.3±0.15	23.3
EE36	36.5±0.4	6.0±0.15	20.0±0.35	5.0±0.2	31.5±0.4	3.5±0.15	2.5±0.15	29.4
EE38	38.0±0.4	6.1±0.15	20.0±0.3	6.0±0.3	32.0±0.6	3.6±0.15	2.5±0.15	30.7
EE39	39.0±0.5	8.45±0.15	14.0±0.3	8.0±0.25	31.0±0.5	5.45±0.15	3.0±0.15	31.3
EE40	40.0±0.5	7.1±0.15	17.0±0.3	6.0±0.25	33.4min	4.4±0.15	2.7±0.2	30.3
EE42	42.0±0.5	5.7±0.15	22.0±0.3	7.0+025	35.0±0.5	3.2±0.15	2.5±0.15	37.9
EE42A	42.0±0.5	6.0±0.15	22.0±0.3	6.0±0.2	36.0±0.5	3.5±0.15	2.5±0.15	37.2
EE42B	42.0±0.6	6.65±0.15	24.0±0.35	6.0±0.2	35.4min	3.7±0.15	2.95±0.2	48.3
EE42C	42.0±0.5	7.4±0.2	16.0±0.3	6.0±0.25	35.5min	4.4±0.2	3.0±0.2	32
EE42D	42.0±0.6	7.6±0.15	24.0±0.35	6.0±0.2	35.4min	4.6±0.2	3.0±0.2	48.3
EE42E	42.0±0.5	9.7±0.15	24.0±0.3	6.0±0.25	36.0±0.5	5.8±0.15	3.9±0.15	61.1
EE42F	42.2±1.0	21.25±0.35	20.0±0.5	11.9±0.3	29.2min	15.3±0.35	5.95±0.25	130
EE44	44.0±0.5	7.4+0.15	16.0+0.3	6.0+025	38.0±0.5	4.4±0.15	3.0±0.15	33.3
EE45	45.0±0.6	24.0±0.2	11.8±0.3	14.8±0.2	30.3±0.4	16.7±0.2	7.3±0.2	99.1
EE50	50.0±0.5	7.7±0.15	20.3±0.3	6.5±0.2	43.5±0.5	4.8±0.2	2.9±0.15	46
EE55/55/21	55.15±1.05	27.5±0.25	20.75±0.3	16.95±0.3	37.5min	18.9±0.3	8.6±0.3	236
EE55/55/25	55.15±1.05	27.8±0.25	25.0±0.4	16.95±0.3	37.5min	18.9±0.3	8.9±0.3	286
EE65/65/27	65.2±1.2	32.5±0.3	27.0±0.4	19.65±0.35	44.2min	22.6±0.3	9.9±0.3	424

Type	Parameters				A_L-value(1±25%)/(nH/N²)
	Parameters				1kHz,0.25V,10Ts,25±3℃
	C₁(mm-1)	L_e(mm)	A_e(mm²)	_V_e(mm³)	KY30	KY301	KY302	KY303	KY404
EE17	1.24	47.7	38.4	1835	1550	1550	1600	1600	2100
EE19	1.82	40.5	22.2	900	1300	1300	1350	1350	1850
EE19A	0.75	26.2	35.1	921	2450	2450	2600	2600	3500
EE20	1.46	46.4	31.7	1510	1500	1500	1600	1600	2100
EE20A	1.54	47.3	30.7	1450	1550	1550	1600	1600	2100
EE22	1.20	43.2	36.0	156	1600	1600	1650	1650	2200
EE22A	1.59	56.2	35.4	1988	1450	1450	1500	1500	2000
EE25	1.24	50.1	40.5	2028	1500	1500	1560	1560	2080
EE25A	0.78	59.4	76.0	4512	2800	2800	3000	3000	4000
EE22B	1.90	65.9	34.7	2288	1150	1150	1200	1200	1600
EE25B	1.24	59.6	48.1	2863	1700	1700	1800	1800	2400
EE28	0.67	48.5	72.8	3534	3500	3500	3600	3600	A⁸00
EE28A	0.63	51.5	81.2	5183	3050	3050	3180	3180	4240
EE32	0.33	39.8	119.3	4758	6300	6300	6900	6900	9200
EE32A	0.89	74.0	83.2	6162	2650	2650	2800	2800	3650
EE33	0.57	48.0	842	4053	3650	3650	3800	3800	5450
EE36	0.48	48.4	100.0	4835	3700	3700	3900	3900	5300
EE38	0.45	47.9	106.1	5088	3950	3950	4100	4100	5500
EE39	0.58	54.9	94.5	5189	3500	3500	3600	3600	4800
EE40	0.56	54.3	97.7	5303	3950	3950	4100	4100	5650
EE42	0.41	49.3	120.5	5939	5250	5250	5500	5500	7200
EE42A	0.45	52.7	116.3	6133	4350	4350	4500	4500	6000
EE42B	0.38	54.1	142.4	7713	6000	6000	6200	6200	8000
EE42C	0.59	57.0	96.0	5475	3650	3650	3800	3800	5000
EE42D	0.40	57.8	144.0	8326	5500	5500	5800	5800	7650
EE42E	0.39	63.1	162.3	10303	5750	5750	6000	6000	8000
EE42F	0.41	98.2	239.4	23501	5250	5250	5500	5500	7200
EE44	0.62	59.6	95.6	5694	3300	3300	3500	3500	4650
EE45	0.61	105.3	173.6	18287	3160	3160	3300	3300	4500
EE50	0.54	65.7	122.3	8036	4200	4200	4380	4380	6000
EE55/55/21	0.35	123.2	352.8	43500	5750	5750	6000	6000	8000
FF55/55/25	0.29	124.2	427.5	53121	6450	6450	6700	6700	9000
EE65/65/27	0.28	149.0	535.0	79800	8600	8600	9000	9000	12000

Type	Parameters				A_L-value(1±25%)/(nH/N²)
	Parameters				1kHz,0.25V,10Ts,25±3℃
	C₁(mm-1)	L_e(mm)	A_e(mm²)	_V_e(mm³)	KY30	KY301	KY302	KY303	KY404
EE17	1.24	47.7	38.4	1835	1550	1550	1600	1600	2100
EE19	1.82	40.5	22.2	900	1300	1300	1350	1350	1850
EE19A	0.75	26.2	35.1	921	2450	2450	2600	2600	3500
EE20	1.46	46.4	31.7	1510	1500	1500	1600	1600	2100
EE20A	1.54	47.3	30.7	1450	1550	1550	1600	1600	2100
EE22	1.20	43.2	36.0	156	1600	1600	1650	1650	2200
EE22A	1.59	56.2	35.4	1988	1450	1450	1500	1500	2000
EE25	1.24	50.1	40.5	2028	1500	1500	1560	1560	2080
EE25A	0.78	59.4	76.0	4512	2800	2800	3000	3000	4000
EE22B	1.90	65.9	34.7	2288	1150	1150	1200	1200	1600
EE25B	1.24	59.6	48.1	2863	1700	1700	1800	1800	2400
EE28	0.67	48.5	72.8	3534	3500	3500	3600	3600	A⁸00
EE28A	0.63	51.5	81.2	5183	3050	3050	3180	3180	4240
EE32	0.33	39.8	119.3	4758	6300	6300	6900	6900	9200
EE32A	0.89	74.0	83.2	6162	2650	2650	2800	2800	3650
EE33	0.57	48.0	842	4053	3650	3650	3800	3800	5450
EE36	0.48	48.4	100.0	4835	3700	3700	3900	3900	5300
EE38	0.45	47.9	106.1	5088	3950	3950	4100	4100	5500
EE39	0.58	54.9	94.5	5189	3500	3500	3600	3600	4800
EE40	0.56	54.3	97.7	5303	3950	3950	4100	4100	5650
EE42	0.41	49.3	120.5	5939	5250	5250	5500	5500	7200
EE42A	0.45	52.7	116.3	6133	4350	4350	4500	4500	6000
EE42B	0.38	54.1	142.4	7713	6000	6000	6200	6200	8000
EE42C	0.59	57.0	96.0	5475	3650	3650	3800	3800	5000
EE42D	0.40	57.8	144.0	8326	5500	5500	5800	5800	7650
EE42E	0.39	63.1	162.3	10303	5750	5750	6000	6000	8000
EE42F	0.41	98.2	239.4	23501	5250	5250	5500	5500	7200
EE44	0.62	59.6	95.6	5694	3300	3300	3500	3500	4650
EE45	0.61	105.3	173.6	18287	3160	3160	3300	3300	4500
EE50	0.54	65.7	122.3	8036	4200	4200	4380	4380	6000
EE55/55/21	0.35	123.2	352.8	43500	5750	5750	6000	6000	8000
FF55/55/25	0.29	124.2	427.5	53121	6450	6450	6700	6700	9000
EE65/65/27	0.28	149.0	535.0	79800	8600	8600	9000	9000	12000
