Ferrite Core

Ferrite soft magnetic material is a material that is easy to magnetize and demagnetize under a weak magnetic field. Mainly include zinc-chromium ferrite and nickel-zinc ferrite. It is a ferrite material with wide uses, many varieties, large quantities and high output value.

It is mainly used to make various inductive components, such as filter cores, transformer cores, radio cores, and tape recording and video heads. It is also a key material for magnetic recording components.

 Good characteristic

Ferrite soft magnet is an important magnetic material with superior magnetic and electromagnetic properties. It is a magnetic material with high magnetic permeability, low hysteresis, low loss, high saturation magnetic induction intensity and high temperature stability.

Widely Application areas

Ferrite soft magnets are widely used in electronic communications, electric vehicles and other fields.Used to make various components。With the development of science and technology, the application prospects will become broader.

Ferrite Core

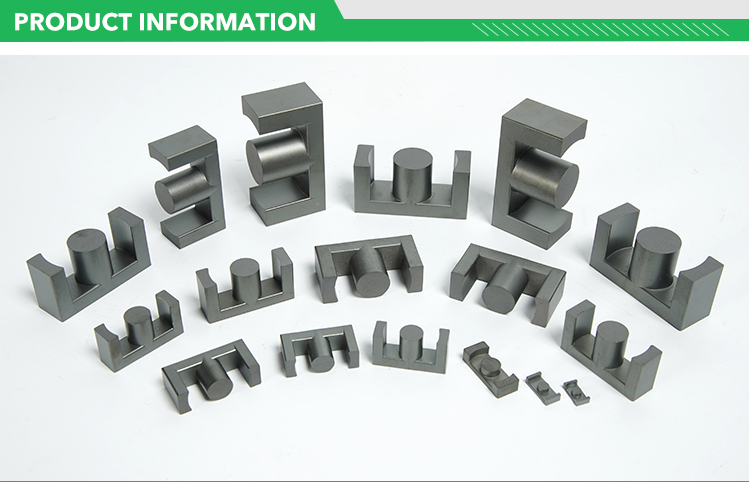

EER-EC CORES

Ferrite Core

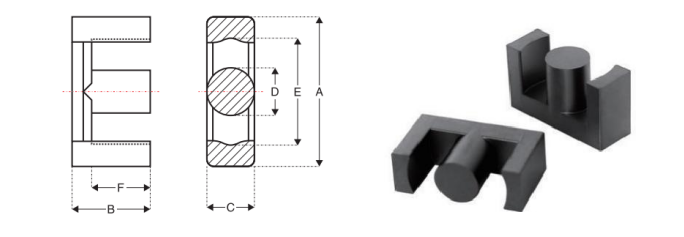

Type	Dimensions(mm)								Weight (g/set)
Type	A	B	C	D	E	F	G	B-F	Weight (g/set)
EC23	23.0±0.5	7.8±0.2	12.9±0.3	10.15±0.2	19.0min	5.3±0.2	15.2min	2.5±0.15	16.7
EC31	31.2±0.5	9.1±0.15	12.5±0.2	11.1±0.2	23.9min	5.35±0.15	22.8min	3.75±0.15	26.7
EC29	29.4±0.6	14.0±0.3	11.4±0.3	9.9±0.3	22.0min	9.8±0.3	20.6min	4.2±0.3	32
EC29A	29.4±0.6	17.0±0.3	11.4±0.3	9.9±0.3	22.0min	12.8±0.3	20.6min	4.2±0.3	36.3
EC36	36.5±0.6	21.8±0.2	11.3±0.3	11.2±0.3	27.6min	15.8±0.2	25.8min	6.0±0.2	57.6
EC39	39.4±0.5	22.8±0.25	12.6±0.3	12.6±0.3	29.0min	17.6±0.25	27.6min	5.2±0.25	75
EC42	42.0±0.6	21.6±0.15	14.7±0.25	14.7±0.25	30.5min	15.9±0.15	28.0min	5.7±0.15	91
EC42A	42.0±0.6	21.6±0.15	15.2±0.25	15.2±0.25	30.5min	15.5±0.15	28.0min	6.1±0.15	97.8
EC43	42.6±0.7	22.8±0.3	15.5±0.3	15.5±0.3	31.3min	15.8±0.3	28.8min	7.0±0.2	107.1
EC49	49.0±1.0	27.7±0.4	17.2±0.5	17.2±0.4	36.5min	19.4±0.4	33.5min	8.3±0.4	165

Type	Parameters				A_L-value(1±25%)/(nH/N²)
	Parameters				1kHz,0.25V,10Ts,25±3℃
	C₁(mm-1)	L_e(mm)	A_e(mm²)	_V_e(mm³)	KY30	KY301	KY302	KY303	KY404
EC23	0.59	40.7	68.7	2792	3640	3640	3800	3800	5250
EC31	0.50	46.9	93.9	4403	3000	3000	3150	3150	4200
EC29	0.79	66.3	83.4	5530	2650	2650	2700	2700	3800
EC29A	0.94	76.9	81.5	6271	2300	2300	2400	2400	3200
EC36	0.93	95.1	102.7	9772	2400	2400	2500	2500	3400
EC39	0.87	105.2	121.2	12746	2450	2450	2550	2550	3450
EC42	0.58	99.2	170.2	16882	3650	3650	3800	3800	5050
EC42A	0.55	98.7	180.4	17812	4150	4150	4300	4300	5700
EC43	0.51	100.2	197.6	19809	4150	4150	4300	4300	5700
EC49	0.51	121.3	238.3	28924	4250	4250	4400	4400	5900
