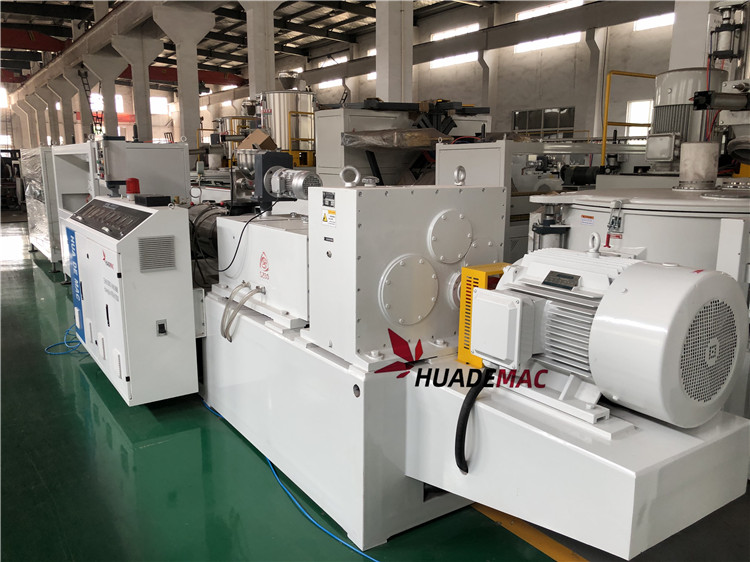

SJSZ 80/156 Twin Screw PVC Extruder Machine

The series extrusion with appropriate mould and auxiliary machine can directly convert thermoplastic especial PVC power into pipe plate sheet,film and profile,and aslo provide function of modifying and pelleting .The extruders are derived by AC motor with a thruster to steeples regulate .It is alsoequipped with the over-load protection and stoppage alarming

system.The screw's core and the outside of barrel is cooled by circulation of oil,it includes vacuum venting and forced feeding.

Model：SJSZ-80                                                                Barrel heating power(kw)：36

Diameter of screw：80/156                                               Production capacity（kg/h）：320-400

Number of screw：2                                                         Center height（mm）：1000

Screw rotation speed：1-34.7                                   Net weight（kg）：5000

Motor power(kw)：55                                                        Dimensions(mm)：4750×1550×2460

SJSZ80/156  extruder detail photos

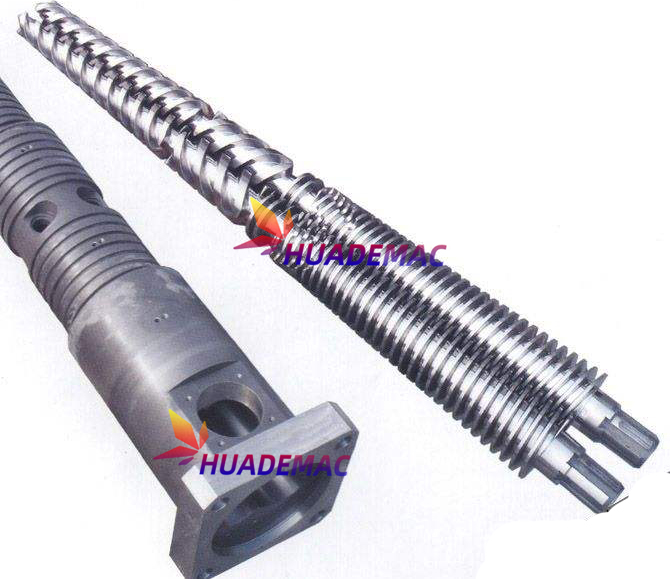

Screw and barrel of plastic pvc extruder machine↓

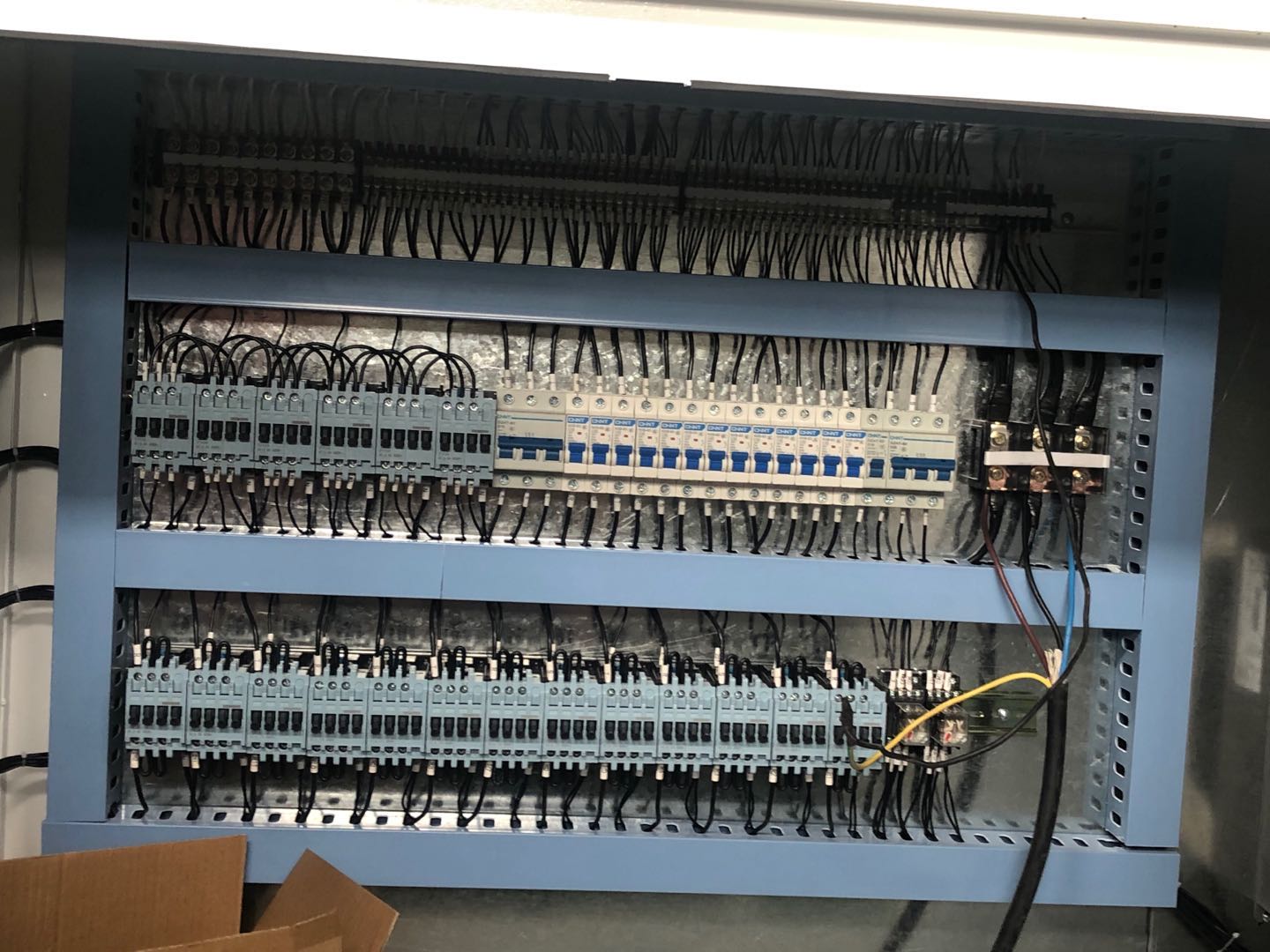

Control Box↓

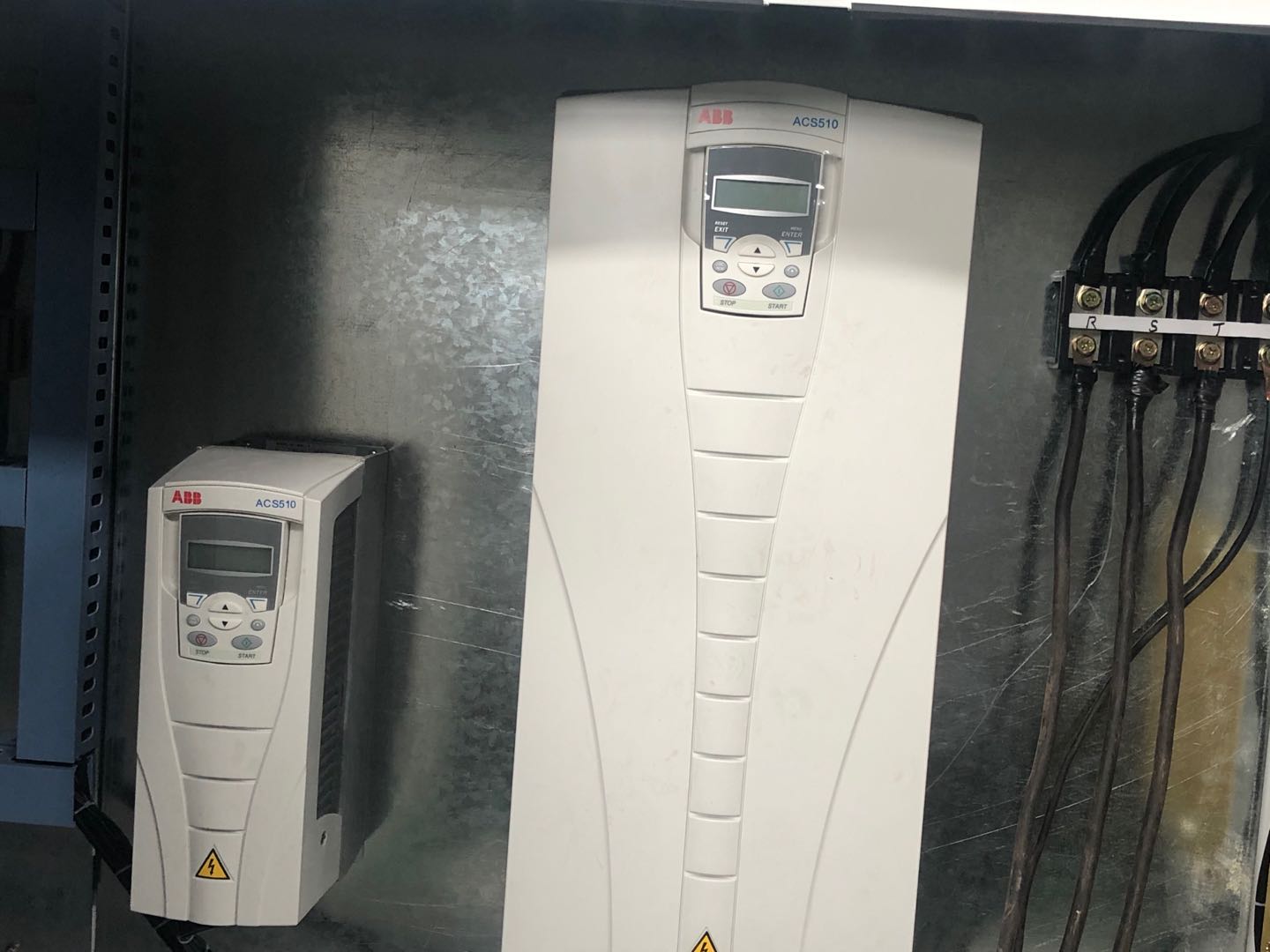

ABB Inverter↓

Motor and Gearbox↓

Packaging of SJSZ 80/156 Twin Screw PVC Extruder Machine

SJSZ 80/156 Twin Screw PVC Extruder Machine Exhibition
