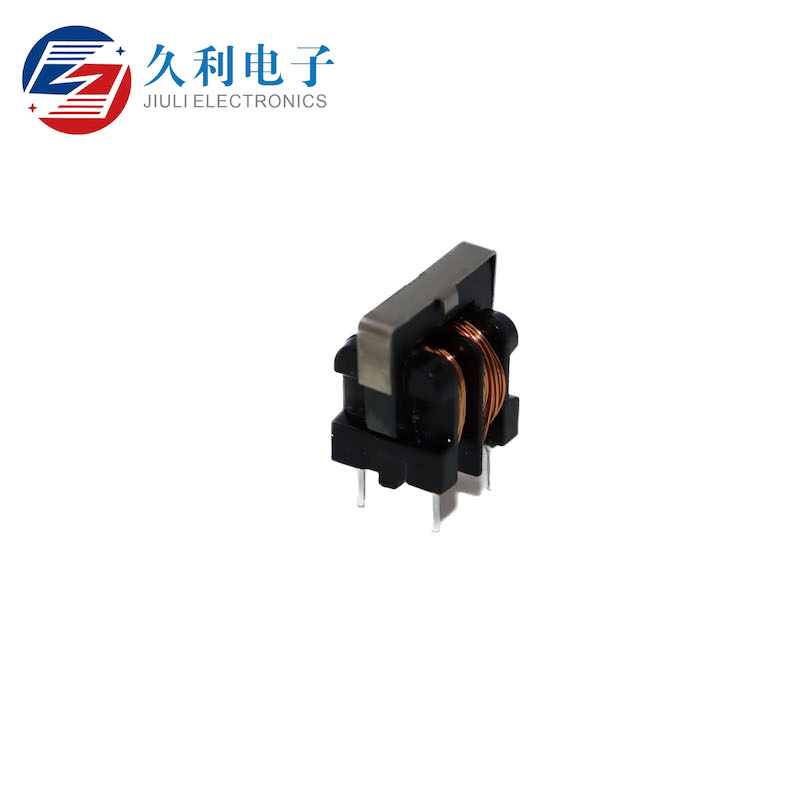

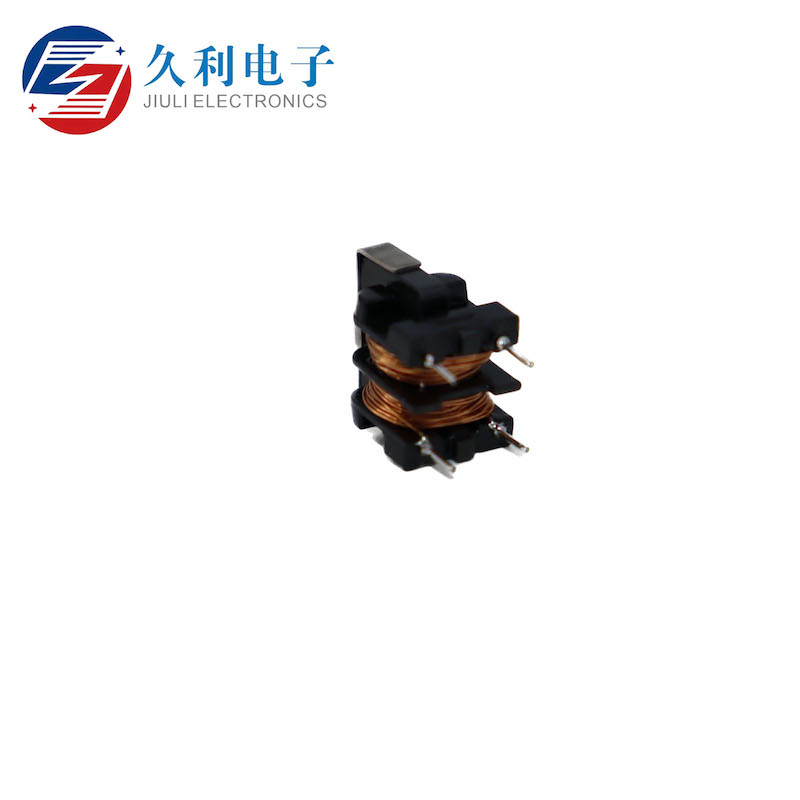

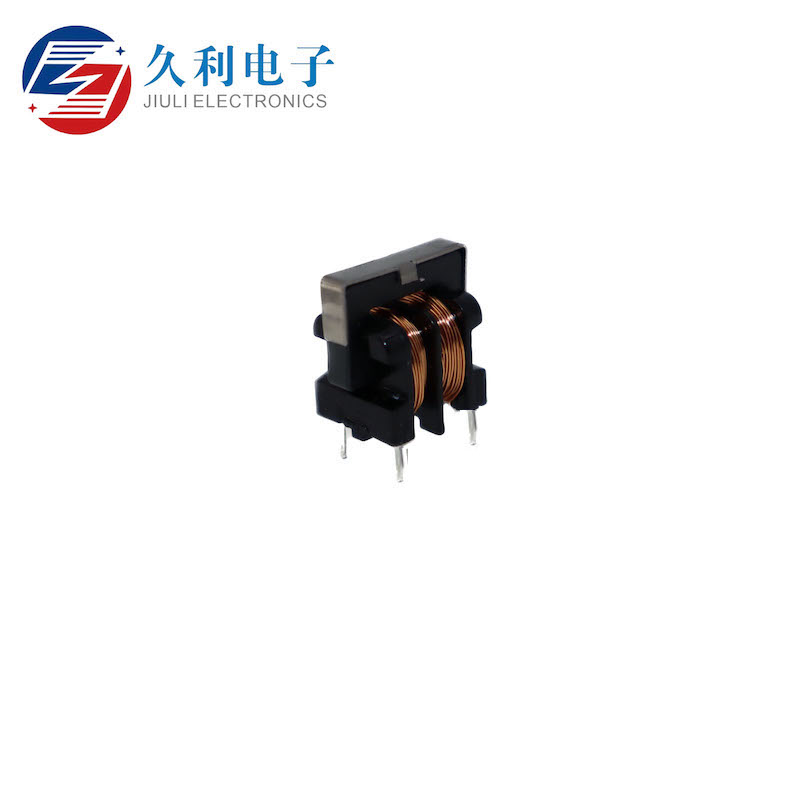

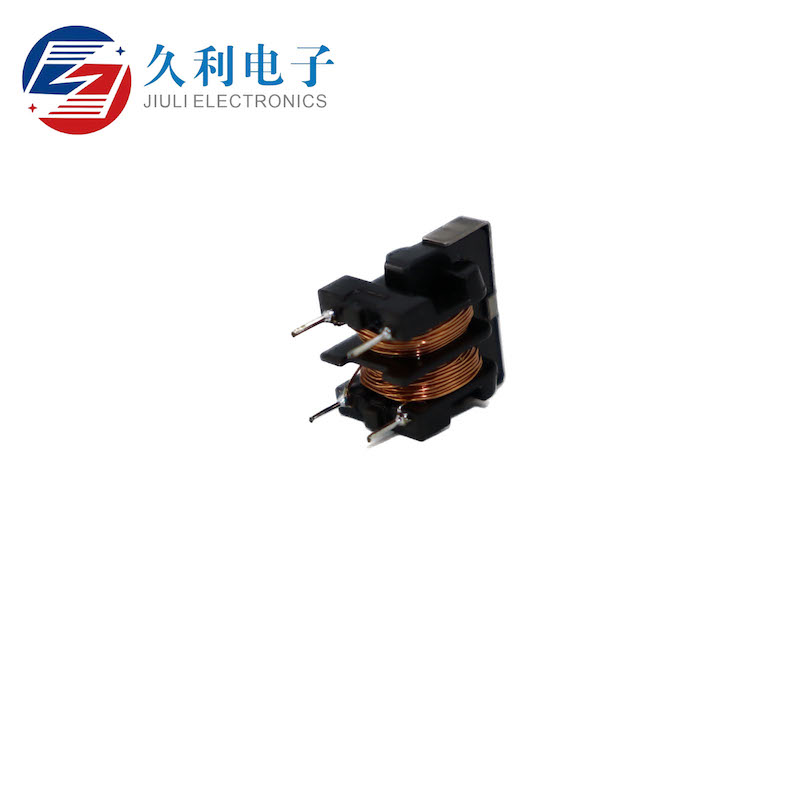

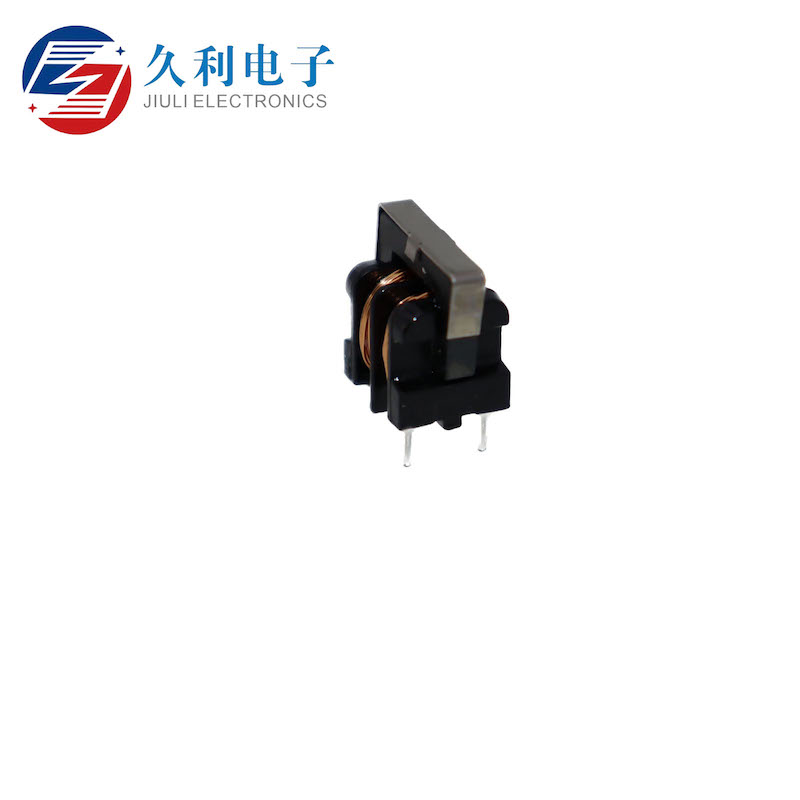

Common-mode inductance

9 month ago

21 0 

Xuzhou Jiuli Electronics Co., Ltd

10 month

Product details

How to distinguish between common mode inductors and differential mode inductors?

Common mode inductors and differential mode inductors

Common mode inductors and differential mode inductors are one of the effective components against electromagnetic interference, widely used in various filters, switching power supplies and other products, but common mode inductors are used to suppress common mode interference, and differential mode inductors are used to suppress differential mode interference, both are more important filter inductors.

Identification of common mode inductors and differential mode inductors

Although the two inductors are filter inductors, but the role is not the same to determine the appearance and winding method will be different, for the common mode inductor, it is wound on the same iron core, and the coil diameter and number of coils are the same, but the direction of the opposite, a group of coils have two pins, so the common mode inductor will have 4 pins; The differential mode inductor is wound around an iron core and has only one coil, so it has only 2 pins, so the number of pins can be distinguished from the common mode inductor and the differential mode inductor.

WHY CHOOSE US

Xuzhou Jiuli Electronics Co., Ltd. was founded on April 30, 2005, is a long-term engaged in inductors, transformers, linear electronic components manufacturing, sales of large enterprises, headquartered in Suining County Qiuji town Wanglin village, the company has about 300 employees in the production of electronic components has a very deep background and rich experience.
