Photovoltaic Solar Cell Protection Schottky Rectifier

YZPST-MK3045

FEATURES

Low power loss

Low forward voltage drop

High forward surge capability

High efficiency

TYPICAL APPLICATIONS

For use in solar cell junction box as a bypass diode for protection.

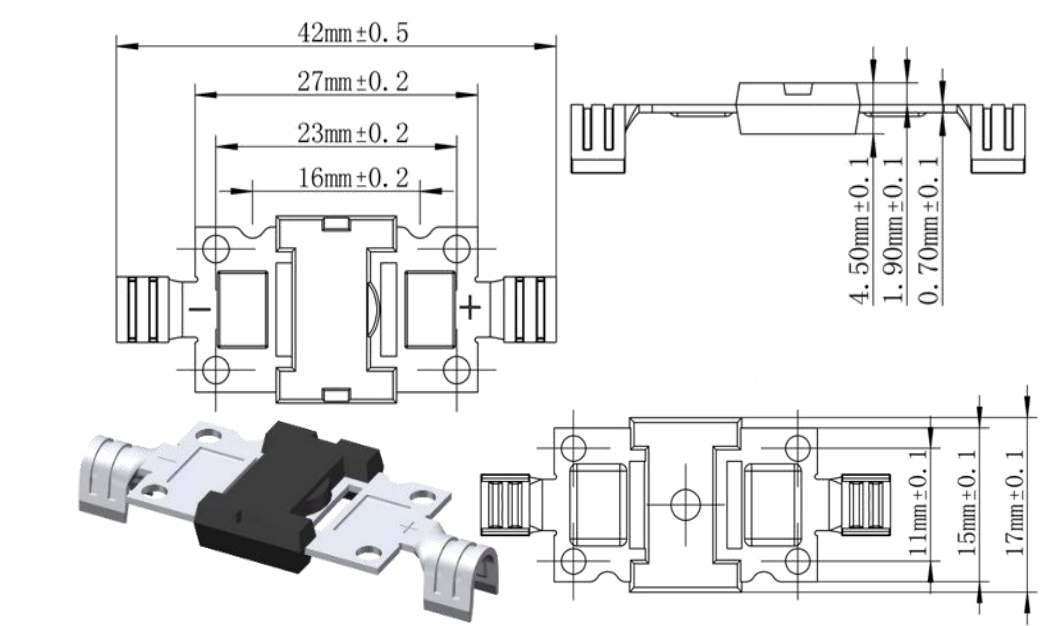

MECHANICAL DATA

Case: MJ-01： MJ-01

Molding compound meetsUL 94 V-0 flammability rating UL 94 V-0

Terminals: Matte tin plated leads

Polarity: As marked on the body

PRIMARY CHARACTERISTICS
IF(AV)	30 A
VRRM	45 V
VF	0.6 V

MAXIMUM RATING (TA = 25 ℃ unless otherwise noted）
PARAMETER	SYMBOL	GFMK 3045PS	UNIT
Maximum repetitive peak reverse voltage	VRRM	45	V
Maximum RMS voltage	VRMS	31.5	V
Maximum DC blocking voltage	VDC	45	V
Maximum average forward rectified current	IF(AV)	30	A
Peak forward surge cuurent 8.3ms single halfsine_wave superimposed on rated load @60Hz
	IFSM	240	A
Operating junction temperature range	TJ	-55 to +200	℃
Storge temperature range	TSTG	-55 to +200	℃

ELECTRICAL CHARACTERISTICS (TA = 25 ℃ unless otherwise noted)
PARAMETER	TEST CONDITIONS	SYMBOL	GFMK 3045PS	UNIT
Maximum instantaneous forward voltage	30.0 A	VF(1)	0.6	V
Maximum instantaneous reverse current at rated DC blocking voltage	TJ = 25 ℃		0.5
	TJ = 125 ℃	IR(1)	100	mA
