Product details

Direct Buried Fiber Optic Cable

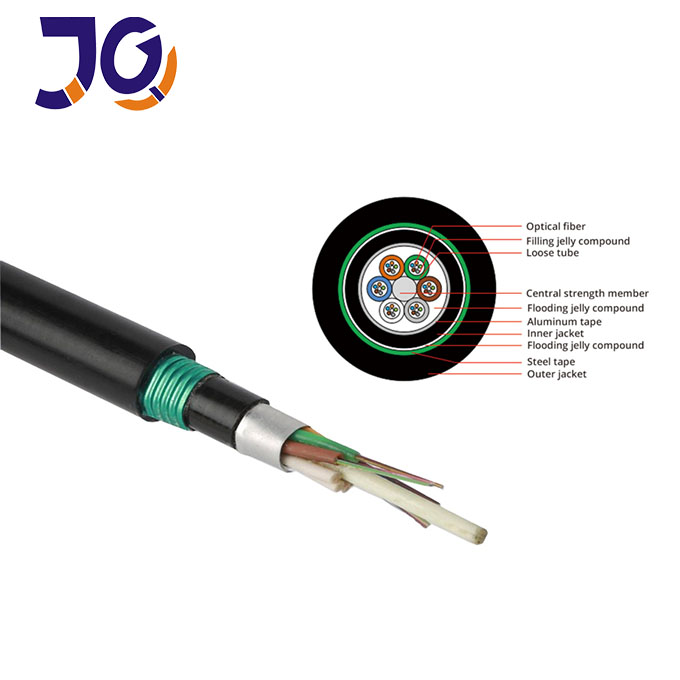

direct burial fiber optic cable A metal-reinforced core runs through the center of the cable. For some cables, a PE layer is extruded outside the core. The loose tube and filler rope are twisted around the core to form a compact, round cable core, filled with water-blocking fillers. APL tape is wrapped around the core and then extruded with a PE inner sheath. PSP tape is wrapped and then extruded with a polyethylene sheath, forming.

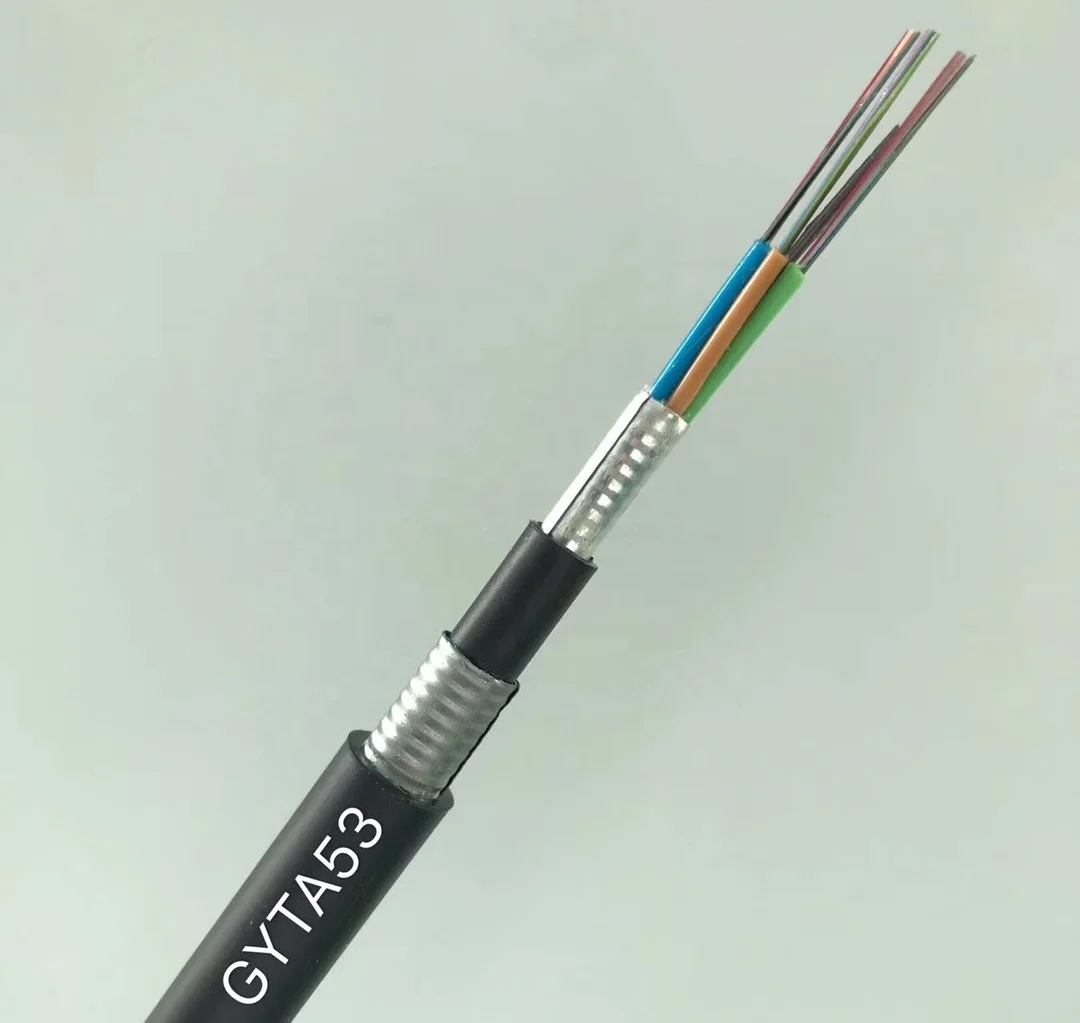

Item	Underground Fiber optic cable GYTA53
Fiber type	G652D
Attenuation Coefficient 1310nm dB/km	≤0.35
Attenuation Coefficient 1550nm dB/km	≤0.22
Number of fiber	4-288 Fibers
Armored	Steel tape
Application	Underground direct burial
Central strength member	Steel wire/FRP
Tension（Long Term）	1000N
Tension（Short Term）	3000N
Crush（Long Term）N/10cm	1000N
Crush（Short Term）N/10cm	3000N
Operating temperature	-40～+70

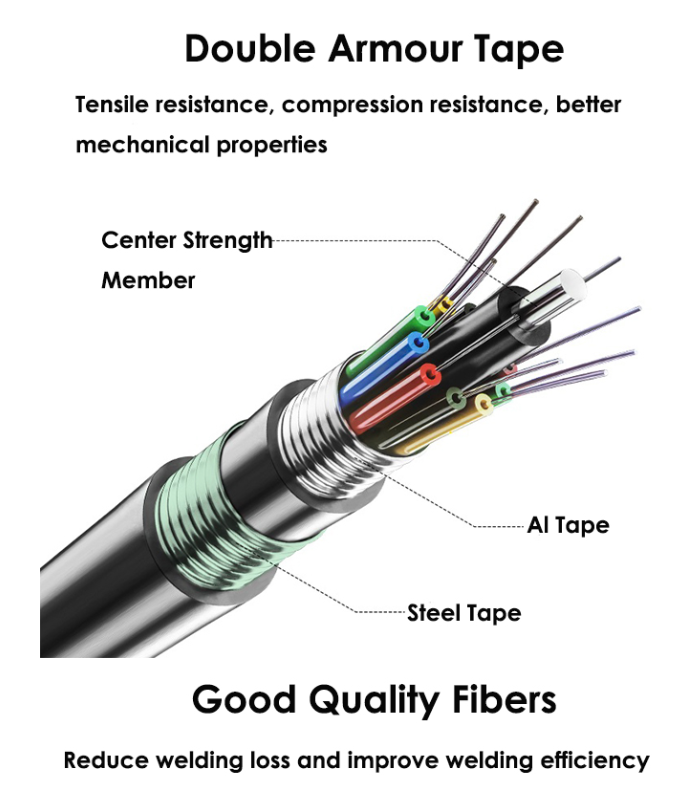

Our [INST] features a double sheath and double armor structure, providing excellent compression resistance. A double-sided plastic-coated aluminum tape-polyethylene bonded sheath ensures excellent moisture resistance. The cable is suitable for laying methods such as overhead, pipeline, and direct burial.

With excellent environmental performance, the temperature range is -10℃~+70℃. The fiber excess length control is stable, and the steel (aluminum) belt has reliable bonding, high strength, and no cracking when twisted. Additionally, the filling water blocking ointment step by step ensures full section water blocking.
