GYTS-96F fiber optic cable

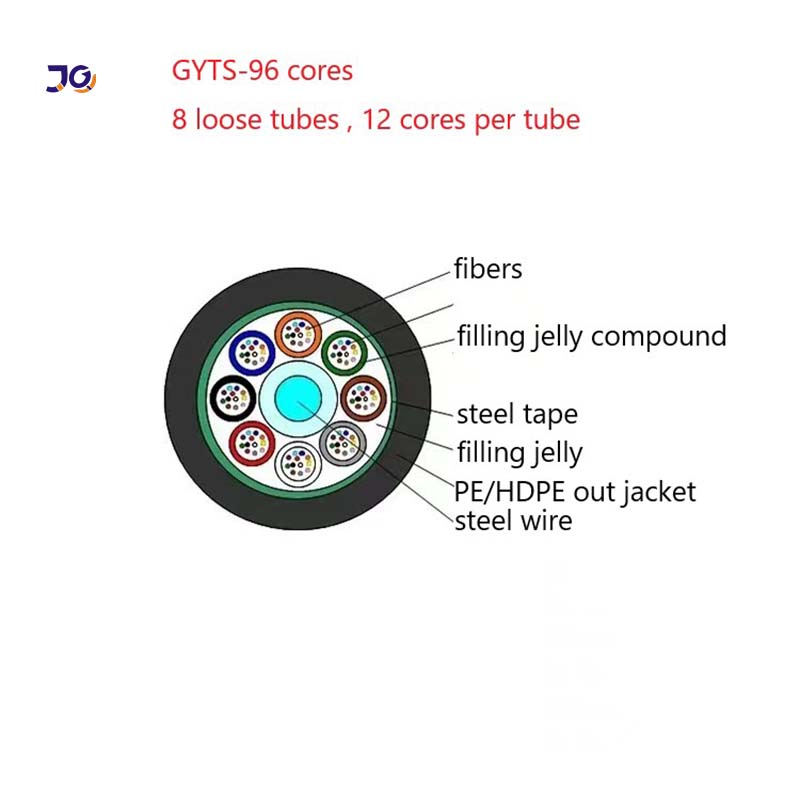

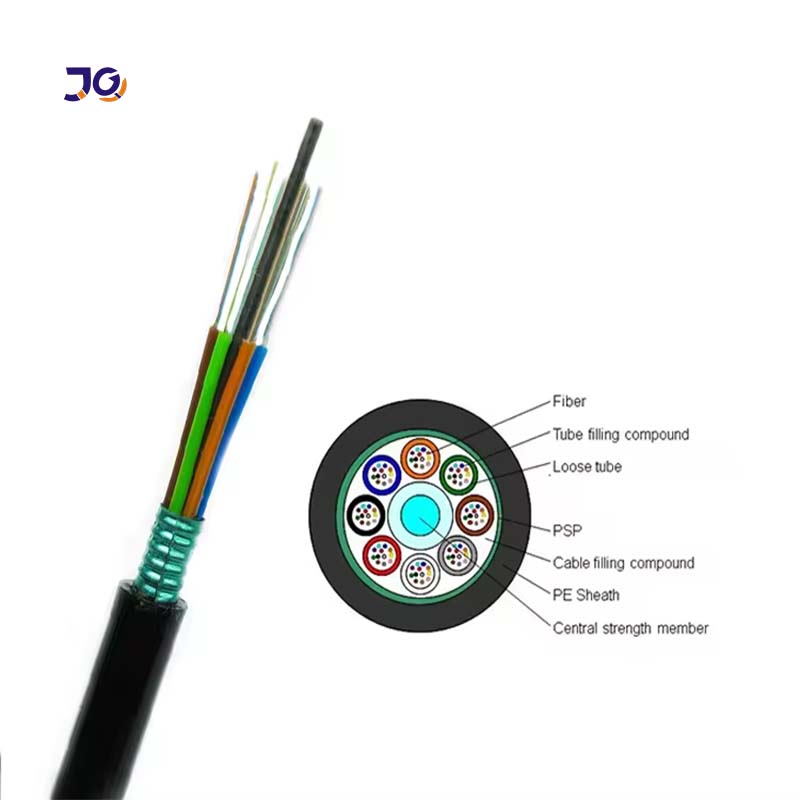

The GYTS-96F fiber optic cable features a unique structure. Single-mode fibers or multi-mode fibers are placed in loose tubes made of high water-blocking material. A metal reinforcing core is centered, surrounded by loose tubes and filling rope twisted together. The gap is filled with water-blocking filler. Corrugated steel tape (PSP) is wrapped and extruded with a polyethylene sheath to form the cable. With 96 fibers inside, 12 fibers per loose tube, and each tube filled with jelly compound, this cable offers excellent performance.

Item	96 Cores GYTS out door overhead fiber optic cable
Attenuation Coefficient 1310nm dB/km	≤0.35
Attenuation Coefficient 1550nm dB/km	≤0.22
Number of Loose tube(PBT)	8 loose tubes , each tube contains 12 fibers
Central strength member	steel wire
Out jacket material	PE (can do the frame-resistant )
Tension (long term )	600N
Tension (short term )	1500N
Crush( long term )	300N
Crush( short term )	1000N
cable diameter	12.6±0.5MM

Loose tube stranding technology ensures good secondary excess length and allows fibers to move freely, reducing stress. Corrugated steel tape armor and a PE outer sheath provide crush resistance and gunshot resistance. A metal strength member enhances strain performance. The cable exhibits low dispersion and attenuation. Design and control of fiber excess length and stranding process result in excellent mechanical and environmental properties. The corrugated steel tape armor also provides moisture and crush resistance. Operating temperatures range from -40°C to +60°C.

Our 96-core GYTS fiber optic cable is suitable for various applications. It supports long-distance and local area network (LAN) communication, as well as aerial and conduit/duct installations. With its reliable performance, this cable is a popular choice for diverse networking needs.
