Product details

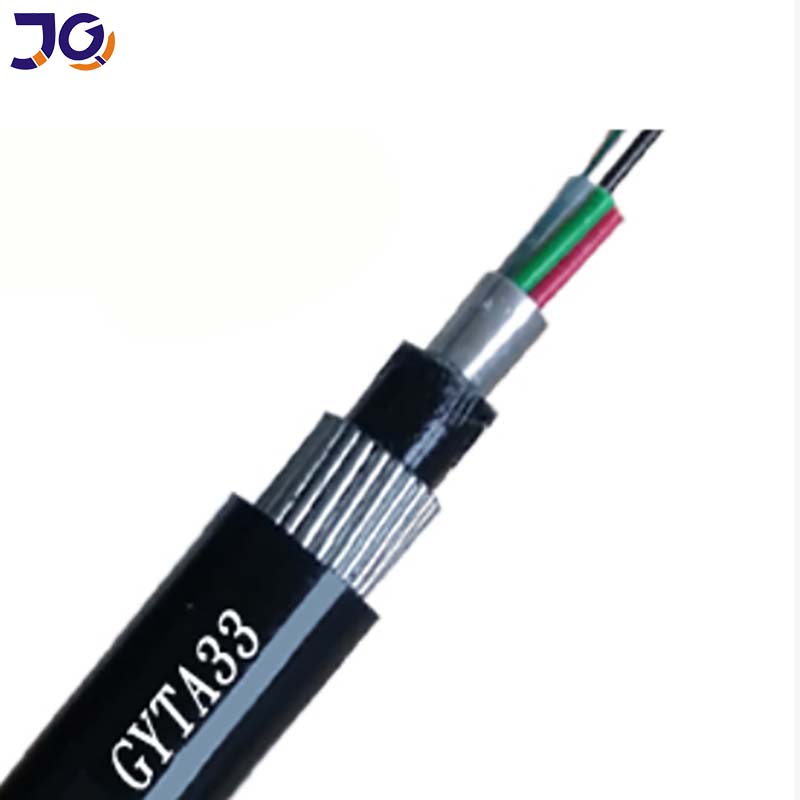

Under Sea Fiber Optic Cable 48 Core

The GYTA33 submarine fiber optic cable is designed for underwater or direct burial installation in harsh environments. With loose tube technology, the fibers have good secondary excess length and free movement, reducing stress caused by longitudinal forces. Steel wire armoring and a double jacket structure provide high-tensile, crush-resistant, and impact-resistant performance.

Item	Submarine fiber optic cable G652D
Number of fiber	4-576 cores
Attenuation Coefficient 1310nm dB/km	≤0.35
Attenuation Coefficient 1550nm dB/km	≤0.22
Tension（Long Term）	10000N
Tension（Short Term）	4000N
Crush（Long Term）N/10cm	5000N
Crush（Short Term）N/10cm	3000N
Operating temperature	-40～+70℃
Cable diameter(mm)	14.8-22.2mm, can be produced as per your requirement

submarine cable optical cable boasts low loss and low dispersion, ensuring reliable transmission. A reasonable design, precise excess length control, and cabling process result in excellent mechanical and environmental performance.

The cable's tensile performance is enhanced by steel wire armor and a double-layer sheath, which also provides moisture-proof and waterproof performance, as well as protection against rodent damage. Additionally, the sheath can be made of low-smoke halogen-free flame retardant material, model GYTZA33, for added safety.
