HF-HT high temperature fabric dyeing machine
4 year ago
HF-HT 2 Tubes Fabric Dyeing Machine
Suitable for dyeing fabrics of natural fibers under normal temperature and pressure or slight pressure.It brings out the best shrinking result for high-grade fabrics.From small to large capacity sample dyeing or large capacity dyeing projects.

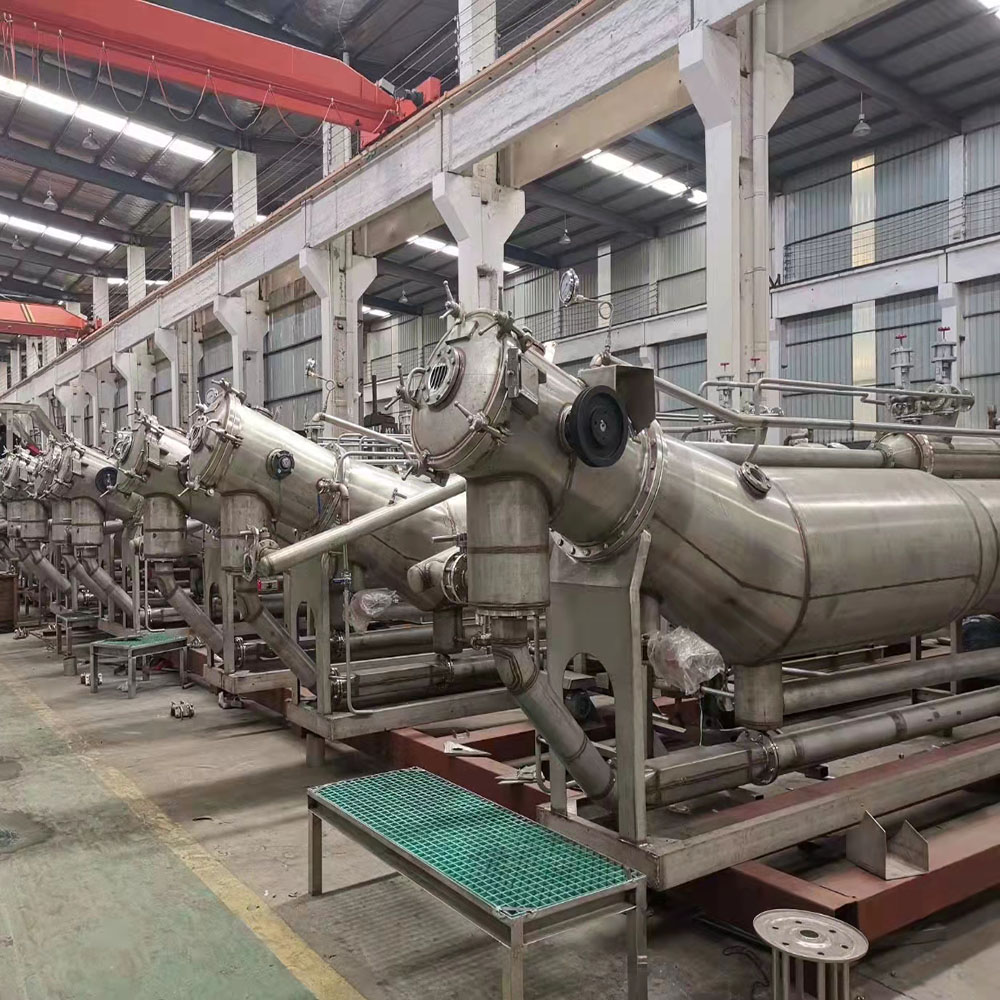

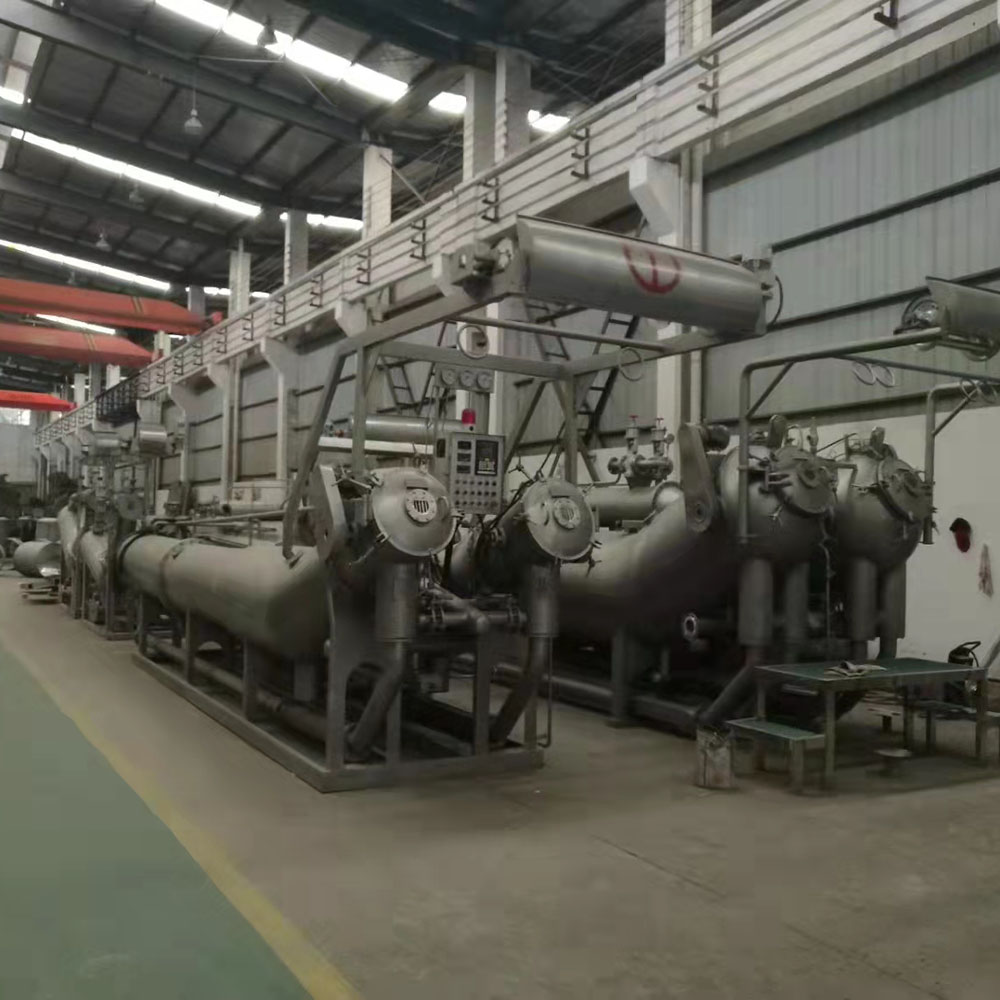

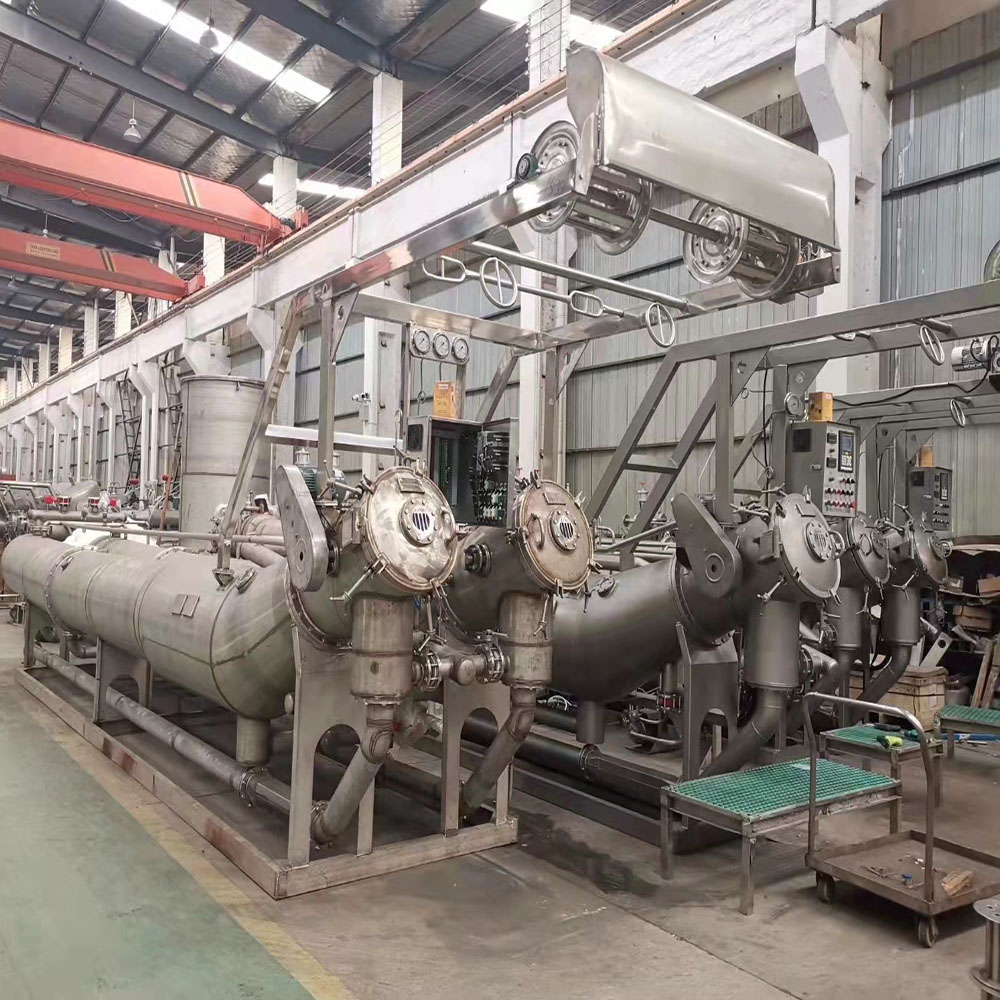

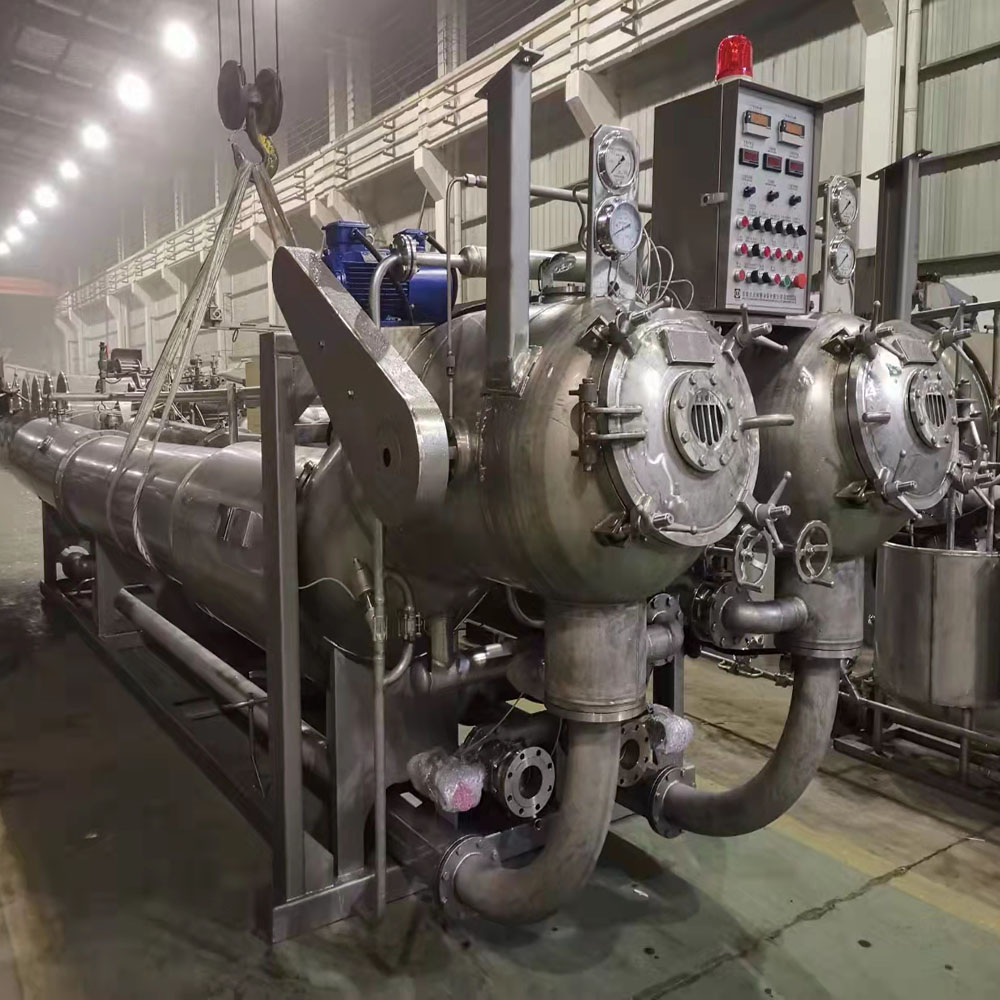

Product images
Characteristics:
1.Unique design of low pressure double flow ejecting which with extensive application range for both woven and knit.Mainly suitable for dyeing and bleaching process on chemical fiber,blending,cotton,interweave etc.
2.Each tube has two types of jet orifice:overflow nozzle and jet nozzle.
3.Equipped net plate from head to the end,thus no fabric will be sucked by the pump.
4.Three control modes:manual control,semi-auto control and full auto control to meet different customers’ requirements.
Parameters
|
Model |
HF-HT-30 |
HF-HT-50 |
HF-HT-100 |
HF-HT-500 |
HF-HT-800 |
|
Max. working capacity(kg) |
30 |
50 |
100 |
500 |
1000 |
|
Working pressure(Mpa) |
≤0.45(Mpa) |
||||
|
Working Medium |
≤140℃ |
||||
|
Power supply |
Dye liquid,steam |
||||
|
Power supply |
380V、50HZ；415V、50HZ |
||||
|
Dia. Of dye tank(mm) |
∮400 |
∮450 |
∮500 |
∮1000 |
∮1000 |
|
Area of heat exchanger(m2) |
5 |
3．1 |
4．1 |
12 |
18．5 |
|
Power of main pump motor(kw) |
5．5 |
7．5 |
11 |
18．5 |
37 |
|
Lift of Mian pump(m) |
22 |
22 |
22 |
22 |
22 |
|
Flow rate of main pump(m3/h) |
50 |
50 |
100 |
220 |
450 |
|
Outline dimension(mm) |
4124X1500X2230 |
4124X1500X2230 |
6500X1500X2230 |
8835X2200X2970 |
8835X2200X2970 |
